Sample Gas Filters
The distance between the extraction point of sample gas and the analyser cabinet is normally bridged by tubes or hoses in continuous emission monitoring (CEM) systems. Depending on the method of analysis (FDIR, HFID, hot wet analysis, total hydrocarbons, etc.), these gas lines can be unheated or must be heated to prevent unwanted condensate formation.
Due to the nature of such installations, additional in-line filtration is required.
Bühler offers a wide selection of unheated and heated filters specifically designed for gas sampling applications.
|
|
Dry seals for compressors and turbines require clean, dry gas to maintain seal integrity and ensure longevity. Gas seal support systems as specified in API-614 require filters and sometimes water-removing coalescers to ensure gas quality to the seals.

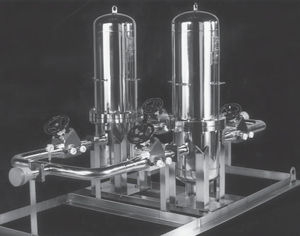

For critical seal gas filtration, the ideal arrangement is to have “duplex” filters. In the duplex configuration, there is always one filter on-line filtering and/or “drying” the gas, even when the other filter element is being replaced.

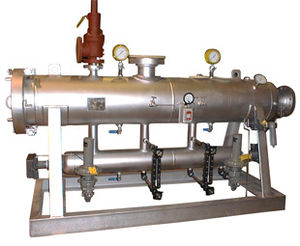

Dry Seal Gas Duplex Filters meeting API-614:
• Reduce cost by eliminating expensive stainless steel fittings and assembly time. Compact design saves space
• Simple duplex housing arrangement reduces possibility for incorrect operation and potential for shutting off the dry gas seal flow
• Zero-leak integral transfer valve and double block valves provide assurance of tight shut off when replacing elements
• 316 stainless steel materials
• ASME code construction
• Available with coalescing (liquid removal) and filter (particulate removal) cartridges
• Designs to 2600 PSI
|
|
|

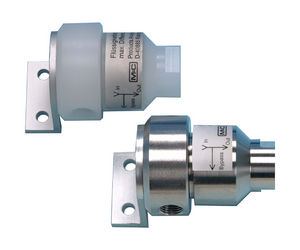

M&C Universal Filters reliably separate solids, in particular extremely fine particles,occuring in analysis techniques in gas filtration, using very fine, deep-acting filter elements.Thanks to their universal design, the filters can also be used as separators (without a filter element), liquid filters or, with adsorption cartridges, as an adsorption filter. For ambient or medium emperatures up to 180 °C, a stainless steel version FSS or FT-H version can be offered. Heated filters up to 320°C are also available.
|
|
The DRESSER®ROOTS® Style 351 Pipeline Strainer is designed to protect precision devices, such as regulation and metering equipment installed downstream of the strainer, from entrained system debris such as plastic shavings, fine particles of dirt, stones, gravel, rust, pipe scale and weld slag.
Check out these Style 351 product features:
- Low pressure drop is achieved through a large element area and venturi port design.
- The elements are interchangeable and consist of corrosion resistant stainless steel in 20 and 100 mesh configurations and back-up disc for long service life.
- The streamlined flow path is sealed with an elastomeric ring in the body bore which provides positive debris removal and prevents debris from traveling downstream.
- The debris bow! has sufficient volume to provide extended service intervals and is tapped for cleaning or valve attachment for blowdown.
- Available in threaded, flanged or weld end configurations.
- Ideally suited for natural gas and compressed air applications.
- May be installed in vertical or horizontal position.
|
|
The Camfil Farr Hi-Flo® offers high efficiency grade filtration to address today's indoor air quality problems. The Hi-Flo can remove contaminants such as fumes, smoke, bacteria, fungi and virus-bearing droplet nuclei. The Hi-Flo is the filter of choice for the removal of nuisance contaminants such as pollens, paper dust and other atmospheric impurities.
The Camfil Farr Hi-Flo incorporates high lofted air laid micro fiber glass media to ensure reliable efficiency throughout the life of the filter. Equipped with a high quality filter material, with small fiber diameter and uniform lofting, it guarantees a consistent and reliable sub-micron particle capture throughout its lifetime. Synthetic micro mesh media backing ensures media protection and support in turbulent or varying airflows.
|
|
Apart from a multiplicity of immediately available standard solutions by ROBU® many special productions in nearly each desired form and size are implemented.
Plates to 450 x 450 mm and pipes up to 1200 mm of length are producible.
Test our achievement ability!
|
|
willpore L
willpore L filters are made of reticulated foam impregnated with a liquid recipe based on active carbon powder. It has been developed to treat low concentration of odours, organic vapours, ozone even in air or in water.
willpore L is the combination of reticulated foam impregnated with a liquid recipe. Afterwards the obtained complex is dried in order to fix the different components of the recipe. Thanks to this process, we avoid particle loss. Furthermore, Willpore L technology gives the opportunity to add other properties to the final filter such as chemical catalyst or preservative.
Foam characteristics
Foams used are especially dedicated to filtration thanks to a reticulation process that gives to this medium a controlled porosity (from PPI 10 to PPI 25). Adjusting this parameter, pinta filtration is able to manage pressure drop as well as efficiency. For applications dedicated to water treatment, pinta filtration uses a dedicated foam resisting to hydrolysis, named TPPI (instead of SPPI for air treatment).
The following graph represents the impact of porosity between TPPI and SPPI on pressure drop (data given for a same carbon & weight, airflow of 90m3/h).
|
|
The Camfil Farr Hi-Flo® offers high efficiency grade filtration to address today's indoor air quality problems. The Hi-Flo can remove contaminants such as fumes, smoke, bacteria, fungi and virus-bearing droplet nuclei. The Hi-Flo is the filter of choice for the removal of nuisance contaminants such as pollens, paper dust and other atmospheric impurities.
Camfil Farr have a wide range of bag filters with best performance on the market.
|
|
Varian’s Gas Clean Filter System prevents contaminants entering your GC. Contaminants in carrier gas would result in damage to the column, loss of sensitivity, and unnecessary instrument downtime.
The Varian Gas Clean Filter System, which is positioned immediately before your GC, consists of two elements: the connecting unit and a filter. The uniquely designed filter and connecting unit allow for quick replacement of saturated filters while preventing air from entering your system.
Varian Gas Clean Filters are available for three different impurities; oxygen, moisture and hydrocarbons.
|
|
Our firm has reached a high level of specialization and is especially equipped to manufacture metal filters in stainless steel, bronze and brass wire and in bronze ans stainless steel powder. With over 30 years' experience, our firm can today offer the market many types of filters to solve all types of requirements. There are many fields of application which besides the main function of filtering liquids, may include:
damping discharge noise emitted by pneumatic equipment
acting as flame-cutters
absorbing gas and liquid spills
separating two liquids with different surface tension
COPOR has certified quality system UNI-EN ISO 9001-2000.
|
|
Vertical or Horizontal constructions mounted on legs or skirts.
Designed to international Pressure Vessel Codes and Standards.
These filters have multiple cartridges securely mounted with the vessel.
Cartridges offered can be of various types of construction depending on the application i.e. Pleated, wound or all metal construction.
Access to the internals can be via a Quick Opening Closure or Bolted Cover.
Flow passes through the cartridges in an in - to out flow direction.
We are able to offer elements that will accept a high differential pressure before mechanical damage can occur.
|
|
Cartridge filters
Automatic compressed air cleaning filters
Bagging filters with polypropylene bags
Self-cleaning filters with closed-circuit storage of waste in collectors
|
|
FILTER DFO
Kongskilde Self Cleaning Cartridge Filters are used for the separation of dust from air in the paper and plastic industry.
Kongskilde supplies air filtration solutions that make manufacturing plants a cleaner, safer environment for employees all over the world.
If a single filter or a multifaceted filter system is required, Kongskilde has the solution.
|
|
Camfil Farr Gigapleat filters are a range of unique products based on the use of adsorbents that are incorporated in a non-woven fiber web. The adsorbents may be made from a very high quality carbon or ion-exchange resin. Variants are available for the removal of acids, bases and condensables.
The media is pleated into flat panels and the panels are mounted in a holding frame (cell, panel or header type). Camfil Farr expertise in pleating concepts and techniques ensures that the optimum combination of factors is obtained. In particular high efficiency and capacity values are achieved at low pressure loss.
|
|
The Camfil Farr Opakfil Green® provides high efficiency filtration in a light weight and compact format. OpakfilFor use in any air conditioning application and preparatory filtration in cleanrooms.
opakfil_greenIt can remove all contaminants such as fumes, smoke, bacteria, fungi and virus-bearing droplet nuclei which makes it a very good choice for improving your indoor air quality.
|
|
Our firm has reached a high level of specialization and is especially equipped to manufacture metal filters in stainless steel, bronze and brass wire and in bronze ans stainless steel powder. With over 30 years' experience, our firm can today offer the market many types of filters to solve all types of requirements. There are many fields of application which besides the main function of filtering liquids, may include:
damping discharge noise emitted by pneumatic equipment
acting as flame-cutters
absorbing gas and liquid spills
separating two liquids with different surface tension
COPOR has certified quality system UNI-EN ISO 9001-2000.
|
|
Our firm has reached a high level of specialization and is especially equipped to manufacture metal filters in stainless steel, bronze and brass wire and in bronze ans stainless steel powder. With over 30 years' experience, our firm can today offer the market many types of filters to solve all types of requirements. There are many fields of application which besides the main function of filtering liquids, may include:
damping discharge noise emitted by pneumatic equipment
acting as flame-cutters
absorbing gas and liquid spills
separating two liquids with different surface tension
COPOR has certified quality system UNI-EN ISO 9001-2000.
|
|
TURBOGLASS
Rigid pocket filter in microfiber of glass.
ll filter TURBOGLASS is constituted from a resistant plastic chassis to the heat, totally riciclabile. The leaking material is in microfiber of idrorepellente glass lacking in cellulose, in class of filtration from F5 to F9. The filter does not introduce to its inside some metallic member, as the assemblage of the chassis and the resistor of the leaking septum concurs to avoid ulterior reinforces. The glue chassis being completely on all sides, with sealing poliuretanico, resistant to acids, is lacking in any by pass of the air. The air crosses alone and exclusively the leaking septum. A gasket in polyurethane completes filter TURBOGLASS.
The leaking septum that it constitutes filter TURBOGLASS is 100% microfiber of glass. The microfiber of glass is folded with a system that allows to obtain a uniform spacing between the folds, for a better leaking efficiency and a better withholding of particles and consequently a greater one I accumulate of the powders. Such characteristic assures a resistor begins them much lowland and an elevated operating life of the filter.
The microfiber of glass having to its inside fibers in cellulose is not totally idrorepellente.
|
|
TURBOPOL
Rigid pocket filter in polypropylene
The rigid pocket filter Turbopol is constituted from a chassis in riciclabile polypropylene. The leaking septum is in polirpopilene 100% idrorepellente. The elevated resistor to the explosion renders the particularly effective filter in onerous atmospheres. Thanks to the intrinsic qualities of the product obtain the following advantages:
Lowlands losses of cargo
Increase of the ability to I accumulate powders
High efficiency begins them
Operating long-life
|
|
TURBOMAX
Pocket filter leaking in microfiber of glass to elevated leaking surface.
Rigid pocket filter constituted from a plastic and inceneribile chassis. The leaking septum is in microfiber of glass in class of filtration from F5 to F8. Filter to wide surface 28 mq, bassisime losses of cargo, operating long-life
|
|
Baghouse Filter
Ducon supplies pulse-air and reverse air type baghouse filters for industrial and utility applications. Over the years Ducon has provided hundreds of successfully operating installations for a variety of industries, such as: coal, cement, steel, power, mining and chemical. Ducon's Bag Filters are state of the art, high efficiency, modular filters designed to handle gas volumes from several hundred to several thousand cubic feet per minute. All Ducon Bag Filters are custom designed for optimum air-to-cloth ratios, longer bag life and higher particulate removal efficiencies. For large power plant application Ducon supplies reverse air baghouses utilizing 35 feet long bags. Ducon can provide bags with a wide choice of materials including: Polyester, NOMAX, Acrylic, Teflon, Glass, Ryton, fiberglass, or sintered metal. Ducon baghouse can provide over 90% mercury removal from coal-fired boiler exhaust gases.
Features
- MODULAR DESIGN
- OVER 99.9% EFFICIENCY
- TOP OR SIDE BAG REMOVAL
- POLYESTER, NOMAX, RYTON AND FIBERGLASS BAGS
- SINTERED METAL BAGS FOR UPTO 1500 DEG F TEMP.
- NO INTERNAL MOVING PARTS
- CORROSION RESISTANT CAGES
- LONG BAG LIFE GUARANTEE
- RUGGED CONSTRUCTION
- EXPLOSION VENTS DESIGNS
- DURABLE CASINGS & QUICK ACCESS DOORS
- PLC CONTROL CLEANING
- MINIMUM SITE PREPARATION
- BIN VENTS FOR CONVEYING
- DOUBLE DUMP VALVES FOR MATERIAL DISCHARGE
- REPLACEABLE BAFFLE PLATE
- TURN-KEY INSTALLATIONS
|
|
|
The filter type FBI is a filtering unit with a counter current cleaning system employed to separate pulverized solid products, which are suspended in the air or in other gaseous products. The filter is equipped with a tank to accumulate pressurized air and the sleeves' cleaning system, both contained inside the filter body. The cleaning system is controlled and managed by a cyclic electronic timer with a ?P incorporated. The filter is supplied with the work and pause sequences programmed and may be reprogrammed according to the client's requirement. It is also equipped with a three digit display to visualize the inlet differential pressure. The efficiency of the filter type FBI is within the values prescribed by the current anti-pollution italian law (d.P.R. 203/88). Its construction is also in conformity with european directive and italian law (d. Lgs. 277/91) On noise reduction in the working environment. The filter shape is cylindrical with the sleeves' extraction from the top. Its engineering is a result of the research and experience in the dry filtering with the use of sleeves and optimization of space in the plants. The air-product mixture is suctioned in the filter. The heavier product particles drop to the bottom by gravitational force whilst the lighter rise to the top and are filtered by the filtering sleeves wich are supported by steel frames. All filters may be executed in carbon steel, stainless steel Aisi 304 or Aisi 316, and aluminium.
|
|
PCC Series Large Flow Filtration for Air and Gas
(1,600 scfm and larger)
Fabricated from high-quality carbon steel, PCC Series Filters are welded to ASME standards to provide large flow applications with exceptional air quality and low pressure drop. Designed specifically for use with our high performance air and gas filter cartridges, these filters can be used alone or as prefilters and afterfilters. D urable and dependable, PCC Series protects your compressed air and gas system and enhances dryer performance.
Flanged lid allows easy filter cartridge access. No need to disconnect drain valve or other tubing when changing cartridges
Sturdy vessel support legs simplify piping installations
Multi-element, carbon steel housing design 1,600 to 15,000 scfm
Easy to read differential pressure gauge standard on all models
Low housing pressure drop saves dollars (1 psi pressure drop costs, on average, $67 per year per 100 scfm at 6¢ per kWh).
|
|
|
AP&T´s niche tools and production solutions are available in product areas like deep drawing, fire extinguishers, heat exchangers, air duct parts, pressure vessels and filter housings in blank thickness from 0,5 to 0,9 mm.
|
|
Thanks to the advances we have made in research and technology, here at ICT Filtración we have managed to reduce atmospheric emissions following filtering processes to levels far below those required by current European legislation.
Our heat-sealed bags, with reinforcement bonded using ultrasound, ensure comprehensive particle retention.
|
|
Camfil Farr offers a wide range of housings in different versions i.e. galvanised or staniless steel. All Camfil Farr housings are always best in class products.
Example of advatages:
* Easy to install
* Modular construction
* No tools needed to change filters
* Gasket to seal between door and filter
* Clamping device for the filter
* Stable and secure design
|
|
Anticorrosion and impact-resistant breather filters supply contamination-free air to reservoirs. A wide range of replaceable filter elements adapted to the needs of the system ensures the degree of filtration required by the hydraulic filter is obtained.
|
|
TURBOCARTRIDGE
Cartridge filter for systems turbogas.
Cartridges TURBOCARTRIDGE are constituted from a metallic chassis and a septum leaking in cellulose and synthetic fibers idrorepellente, in class of filtration second F7 EN 779. The chassis is planned in steel mesh and introduces a limited number of welding in order to avoid possible oxidations. The real advantages in the passage to cartridge TURBOCARTRIDGE are: better leaking efficiency, greater ability to I accumulate powders, minor loss of cargo, operating long-life and cost reduction of maintenance.
|
|
|
