The TR_152 is a new-concept cutting-off machine specifically designed for cutting PVC profiles.
Because it features ø 550 mm blades and has 4 vertical clamps and 1 horizontal clamp on both heads, it can cut up to 4 profiles every work cycle (or 2 monoblocs). The particularity of the TR_152 is that it features ascending movement blades: this way in fact, the reference point is always the wider part of the profile and consequently the outer tip of the corner.
You can control mobile head movement in two ways. With the TR_152 by means of the electronic positioner; while with the TR_152E, you will have at disposal the complete software version, which will enable you to enter orders from the office and print the bar code labels to be affixed to the profiles later on in order to follow the production line until the frame is completed.
The maximum cutting capacity is 3500 mm, while minimum capacity is 360 mm.
|
|
|
|
|
|
Because glazing bead cutting is a job of crucial importance for the quality of the finished frame, our glazing bead cutting units are designed to provide a perfect finish and be simple and convenient to use. They can in fact cut 2 glazing beads at a time. To ensure the utmost adjustment flexibility in accordance with the range being machined, their position is adjustable. The same concept has been applied to all the other registrations. You can in fact raise and lower the worktable and move the stops, which together with the clamps, secure the glazing beads. Once the different positions have been registered, these can be defined by means of the revolver (thereby obtaining up to 6 different and reproducible positions). This way, you no longer need to purchase the retention counter templates: you are thus provided with the utmost autonomy even when you change or extend your profile range. Cutting is done by means of 2 x dia. 250 mm blades while the milling of the fastening foot is done by another two dia. 155 mm coaxial blades.
Both models can be connected to the locator stop mod. KIT_16DX featuring metric rule and two removable gauges. Support KIT_16SX is also available to be positioned to the left of the machine and which can be fastened to the floor to support the glazing bead on the loading side as well.
Both cutting-off machines can be connected to the DigiSTOP stop and to all the DigiFAMILY products for the electronic reading of the measurements to be cut.
TR55/2 and TR65N differ as regards the blade feed system. In the case of the TR55/2, this is manual, while in that of the TR65N, it is automatic (and speed is adjustable).
|
|
|

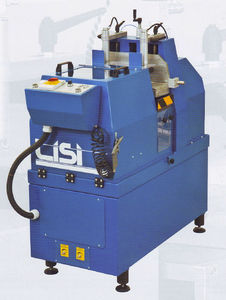

Series of double mitre saws with right head fixed and left head mobile for cutting glazing beads. In the basic version the mobile head movement is driven by a handwheel complete with mechanical gauge to read the measurement. Available on request are the versions VIS with handwheel and digital display of the cutting length, NC with electronic positioner that can store up to 400 lines and NCT with numerically-controlled positioner connected via cable to an electronic gauge. All the models come complete with rotary table with mechanical locking devices for 90° and 45° angles right and left, two pneumatic clamps synchronized with blade descent and a glazing bead support on two levels for simultaneous cutting of two glass stops.
|
|
AD1050 - Automatic Glazing Bead Saw
* Automatically cuts the glazing beads made of PVC or Aluminum.
* Featuring a safety cover lid that protects the operator against operational accidents.
* Electro-pneumatic control.
* Cuts two ends at the same time.
* Cutting angle: 45°.
* Cutting speed: 5 seconds.
* Adjustable cutting speed.
* Moulds are simple to change.
* Manual length stop system for length adjustment.
* Optional:
o Cooling system [for aluminum]
|
|
|
|
