High precision and long life linear rotary actuator, LAR31 series, can easily be programmed to control force/torque, position & velocity in all axes. Light moving mass = can land on parts and not damage them. This 'Softland' capability is a perfect solution for pick & place applications handling fragile components.
- Reliability: More than 10,000 units installed on the world’s most precise circuit board assembly machines
- Shaft rotational run-out less than 30micron standard, 10micron available
- Encoder resolution 5micron standard options of 1, 0.5 & 0.1micron.
- Repeatable positioning to +/-2 encoder counts
- Average life 75million cycles and improving
- Compact linear & rotary, 140 x 77.25 x 35mm
|
|

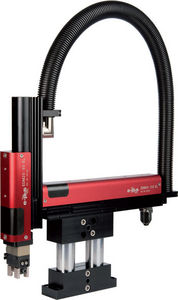

The HSP: a truly time-saving machine with a gain in production time of 20% - no wonder with cycle times of 0.6 to 1.0s.

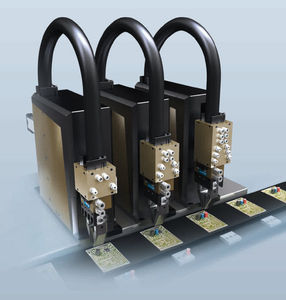

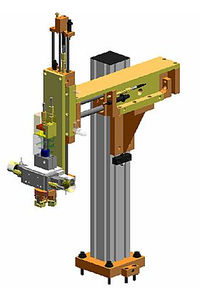

• Preassembled unit
• Independent adjustment of Y- and Z-strokes in the pick & place position
• Installation concept with multiple adaptation options
• With/without pneumatic semirotary drive
• With/without rest position
• Strokes 52 ... 170 mm
• Repetition accuracy ±0.01 ... ±0.02 mm
|
|
SANKYO F Series Rotary or GY Series Linear Handler
Rotary F Series

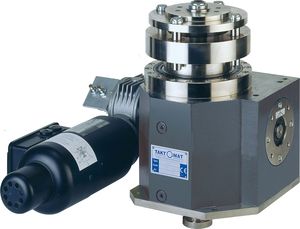

- Cam driven: accurate, high speed, high capacity, reliable
- Oscillating, indexing motions with or without lift
- 0~600-cycles per minute
- Lift 0~165mm, oscillate angle 0~360, 1~12 index stops
- Large selection, 14 housing sizes
- Accuracy: ±0.05~0.5mm lift, ±60A.S. oscillate, ±60A.S. index
Linear G Series
- Cam driven: accurate, high speed, high capacity, reliable
- 0 to 120-cycles per minute
- Lift stroke 0~100mm, extend stroke 0~300mm
- 5 cast iron housing sizes from 70,80,90,120,140mm widths
- Dual cam design, precise motions with ±0.02mm accuracy
|
|
Camdriven Pick and Place Units:
All modules are adjusted to the requirements of the application within their technical limits. With the combination options of cylinder curve, disk curve, disc groove curve, globoid curve, pneumatics and servo technology results in a giant construction kit, which we can turn into the perfect solution for you.
possible movements:
Rotation and vertical stroke (360° / 300 mm)
Pendulum motion and vertical stroke (90° / 80 mm)
Linear motion and vertical stroke (120mm / 40 mm)
|
|
Features:
- For dispensing different promotion products/supplements, CD's, gimmicks, etc. Product dimensions:
Length 50 - 200 mm
Width 50 - 150 mm
Height 0,5 - 6 mm
- Output: 15,000 cycles/hour
- Option: Conveyor belt
|
|
|
|
|
|
Pick & place

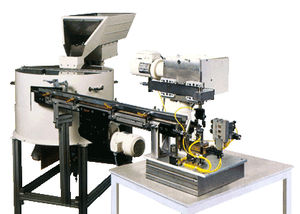

The Clippy series consists of pick and place devices to dispense coupons, promotionals, thermosealed bags, folders, small gifts made with non-porous coated paper. Clippy can also glue promotional materials to the outside of packages with a drop of glue; it also feeds the conveyor systems with PVC containers, blisters and packages.
Clippy
Clippy automatically dispenses products thanks to the suction mechanism using a Venturi vacuum generator: coupons and objects are sucked and inserted as products advance. It is available in the pneumatic version or with brushless motor, with a single or double stacker to dipense two different types of objects. The keypad makes it simple to set the speed and control functions:
Clippy oem
This rotary pick & place device can be mechani-cally connected in phase with packaging machines or fitted with its own motor. It dispenses products such as coupons and badges with an output speed of 400 pieces/minute. The products are picked from the stacker by suction pads.
|
|
Transfer & Feeding Systems
Modular tube handling systems are used to meet ever more demanding process and packaging requirements. They are a versatile supplement to IWK´s machinery for most diverse products and packages.
|
|
| ... products without technical information |
| |
|
|
