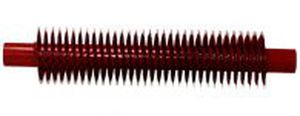

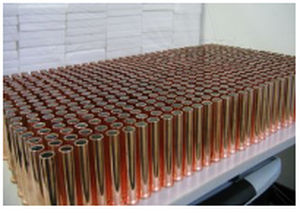

Heat Pipe Heat Exchanger Core Technology
Heat pipe core units are a flexible thermal management system used to interface with duct work and other customized applications. Fin stacks can be tailored to accommodate different air velocities in the ambient and internal loops. All heat pipe core units provide a NEMA 4 and NEMA 12 compliant seal to separate the two air streams. Our engineers can design a broad range of core sizes for your application.
|
|
|

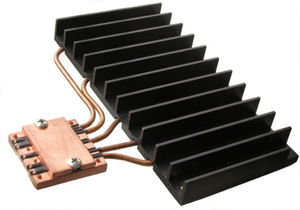

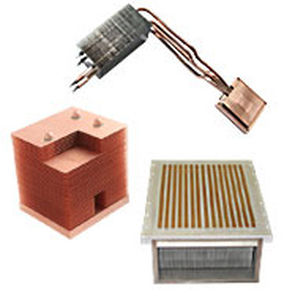

As the demand for faster processing capabilities drives the industry to stay competitive, seconds off cycle time can result in increased efficiency and considerable savings. Thermacore's high performance Mold Cooling Solutions address thermal issues to help reduce cycle times and minimize production costs.
|
|
|

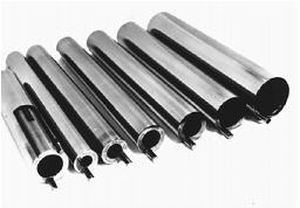

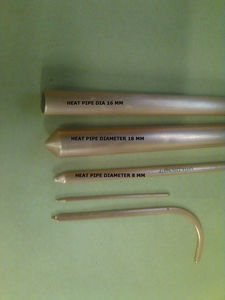

Thermacore's high temperature heat pipes are used in a wide variety of applications and service conditions from the ocean floor to geosynchronous orbit. These high temperature heat pipes have improved processes as mundane as glass making, as industrial as oil-shale extraction, and as high-tech as epitaxial deposition. With over 30 years of high temperature alkali metal heat pipe design, development and fabrication experience, Thermacore's liquid metal heat pipes have set new records for heat transfer in hardware developed for the National Aerospace Plane's leading edge, solved day to day problems in state of the art automobile spark plugs, and solar power Stirling engine receivers. If your product or process involves high temperature heat transfer, or involves high heat flux cooling, Thermacore has the design and fabrication experience required to provide the best thermal solution.
|
|
|

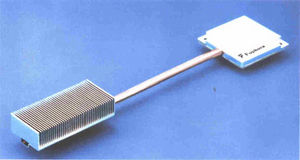

We can provide many kinds of heatpipe for the thermoelectric cooling system and also can provide the custom design. Please do not hesitate to contact us, if you have any requirment.
|
|
For pressure vessels and reaction vessels in M.S., Al, Monel, Inconel, Cupronickel, etc., M.J. Patel employs the latest techniques for expanding tube ends into tube sheets. High pressure tests are always carried out on these heat exchangers before they leave the factory. Brass, copper, M.S. and S.S. tube sheets are used. Tube sheets are also made out of mild steel, alloy steel or stainless steel and baffle plates are made out of mild steel or stainless steel. M.J. Patel fabricates 'U' Tube heat exchangers which are used in fertilizer plants, petrochemical and power project complexes.
Fabrication of U-Tubes for Heat-Exchangers Spans at extremely Short Delivery time, even Extra long (23 mts.) is M.J. Patel's specialty. Tube Bending as per TEMA. Tubes to any specification and any length can be supplied in extremely short time due to our wide Mother Tube Stocks.
|
|
| ... products without technical information |
| |
|
|
|
|
HFT5000 Raychem Heat-Shrinkable, Highly Flexible Woven Fabric Tubing
DESCRIPTION:
• Tyco Electronics manufactures the world’s largest range of heat-shrinkable tubing that provides exceptional cable protection, insulation, environmental sealing and strain relief. The heat-shrinkable fabric with a 2:1 shrink ratio is a halogen free product, woven from polyethylene/polyester materials which provide excellent abrasion resistance for components such as rubber hoses, plastic pipes and harness wiring bundles.
• The tightly woven filaments promote flexibility and easy installation onto irregular substrates such as bent hoses, yet provides resistance to trapping water, heat and humidity.
FEATURES AND BENEFITS:
• Heat-shrinkable, to grip substrates tightly without additional fixing
• 2:1 shrink ratio for easy installation onto substrate diameter transitions
• Highly flexible woven construction for easy, compliant installation onto irregular substrates
• Low shrink temperature for safe installation onto heat sensitive substrates
• Outstanding abrasion resistance over a wide temperature range
• Resistant to harsh environments
• RoHS Compliant
• Easily cut with standard industrial cutting equipment
|
|

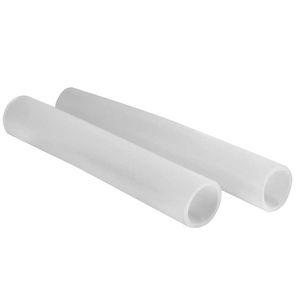

Polytetraflon® RANGE OF TUBING
Heat-shrinkable tubing made from PTFE - PFA - FEP
We produce heat-shrinkable tubing made from fluoroplastics with various shrinking rates.
PTFE heat-shrinkable tubing rate 2:1
PTFE heat-shrinkable tubing rate 4:1
PTFE heat-shrinkable tubing custom-made
FEP heat-shrinkable tubing Rate 1,3:1
FEP heat-shrinkable tubing Rate 1,6:1
FEP-fluorescent tube covers (thin welded)
FEP heat-shrinkable tubing custom-made
PFA heat-shrinkable tubing custom-made
Dual heat-shrinkable tubing PTFE / FEP
Dual heat-shrinkable tubing PTFE / PFA
heat-shrinkable tubings
All heat-shrinkable tubing are also available in coloured versions.
Shrinking-on procedures can be carried directly at the customer's location.
We build custom-made shrinking installations or we assist you with the development of such installations.
Ask fo our training courses in which we show you how to shrink correctly.
brochures heat-shrinkable tubing: 01 of 01
Aktualisierung: 08.08.2005
|
|
Programme
- Shrink ratio 4:1/2:1/1,3:1/1,6:1
- On lengths, reels/spools production lengths
- Dual PTFE/FEP design
- Natural/pigmented (coloured)
- ID 0,6 mm to 4" before shrink
- Cleanroom production
Options
- UV stop
- Halogeen-free
- Medical grade
- Etching
- TL covering (lamps)
- Installation roller covering
|
|
|
|
|
|
TTMS tubing is flattened, heat-shrinkable tubing intended for wire and cable identification. Available in continuous spools. TTMS tubing is designed for computer-based printing using Tyco Electronics TMS 2000Plus printer. This product format makes TTMS identification tubing ideal for applications where
in-sequence kitting is not of over-riding importance, for example where several hundred identical markers are required. Large pack sizes, usually 100m (328 feet), minimise the number of spool changes necessary during production runs.
TTMS identification tubing is made from durable, flame retarded radiation-crosslinked heat-shrinkable polyolefin. The tubing meets the performance requirements of AMSDTL-23053/5 classes 1 and 3. The identification marks are
permanent immediately after printing and remain legible even when exposed to solvents, fuels and oils. The printed tubing meets the mark permanence requirements of AS-81531 and MIL-STD-202F Method 215 both before and after shrinking. Tyco Electronics recommended ribbons should always be used. The tubing has a 3:1 shrink ratio (except sizes 38.1 and50.8 which are 2:1) and cover a wide range of wire diameters, thus simplifying inventory.
Features and benefits
¡á Continuous format heat-shrinkable identification tubing.
¡á Very flat.
¡á Computer printable.
¡á Military specification material and print performance.
¡á -55¢ªC to 135¢ªC operating temperature.
¡á 3:1 shrink ratio.
¡á CSA certified, UL recognised UL224 (VW-1 rated).
|
|
PTFE heatshrink tubing
- Normal-walled:
Article designation TW, made of PTFE tubing material according to AMS 3655
- Thin-walled:
Article designation UTW, made of PTFE tubing material according to AMS 3654
- Thick-walled:
Article designation HW, made of PTFE tubing material according to AMS 3653
Product Facts and Data at a Glance:
- Standard length: 1.22 m or factory lengths on drums
- Longer measures on request
- Standard colour: natural tone
- 10 basic colours on request
- Specification: according to MIL-I-23053/12A, Class5
- Made of PTFE tubing material to AMS standard 3584
- Temperature resistant up to 260°C
|
|
|
|
|
|
Dual Wall Tubing
When corrosion protection and sealing are required, use TE heat-shrinkable dual wall tubing. During installation, an adhesive or encapsulant lining melts and flows, creating a moisture-resistant protective barrier. Dual Wall Tubing Features and Key Products
ATUM
•Environmentally seals and protects a wide variety of applications, including back end connector sealing, breakouts, and connector-to-cable transitions
•3:1 and 4:1 shrink ratios
•Medium wall provides increased mechanical protection
•Adhesive used in ATUM bonds to a wide variety of plastics, rubbers, and metals
•Agency Recognition:
o UL (excluding 3/1 and 4/1)
o AMS-DTL-23053/4, Class 3 (limited sizes)
o RoHS Compliant
DWP-125
•Flexible, high-shrink-ratio, adhesive-lined polyolefin tubing that environmentally seals and protects a wide variety of electrical applications.
•3:1 shrink ratio
•Medium wall provides increased mechanical protection
•Adhesive bonds to a wide variety of plastics, rubbers, and metals
•Agency Recognition:
o UL
o CSA
o RoHS Compliant
TAT-125
•Adhesive -ined, flexible, polyolefin tubing that seals and protects simple in-line splices, bi-metallic joints and components from fluids, moisture and corrosion
•Flexible polyolefin
•2:1 shrink ratio
•Thin adhesive lining that bonds to inner and outer surfaces forming a positive environmental seal
•Flexibility of both tubing and adhesive
•Good mechanical strength and cut-through resistance
•Agency Recognition:
o UL (TAT-125, Type 1- colors)
o CSA (TAT-125, Type 1- colors)
o AMS-DTL-23053/4, Class 2-( TAT-125, Type 1- colors)
|
|
Universal thin wall heat shrink tubing with excellent physical and mechanical properties
Features: Flame reatardant - Flexible - Meets MIL-DTL-23053/5 class 1 2 - Continuous operating temperature -55°C - 135°C
|
|
DERAY®-IAKT
Adhesive lined heat shrink tubing ideal for effective moisture-resistant insulation
Features
Flexible - High shrink ratio - Adhesive bonds to plastics, rubber, neoprene, steel and polyethylene - Continuous operating temperatur -55°C -110°C* - Shrink temperature 95°C
*Outer Jacket
|
|
DERAY®-V 25
Diesel resistant elastomeric heat shrink tubing, suited for protecting components in air and space travel as well as for military applications
Features
Flexible - Flame retardant - High abrasion and cut resistance - Long term resistance to diesel, hydraulic fluids and chemiclas - Meets MIL-DTL-23053/16 - Continuous Operating temperature -75°C - 150°C - Shrink temperature 180°C
|
|
CFM
Medium wall heat shrinkable tubing suitable for a variety of low voltage electrical and mechanical applications, where lighter weight and greater flexibility are important
Features
Seals and protects cable splices and terminations - High resistance to impact and abrasion - Optional thermoplastic adhesive liner for complete environmental protection and insulation - Continuous operating temperature -55°C - 110°C - Shrink temperature 120°C
|
|
|
Heat-shrink sleeving; Class B 130°C
|
|
Heat-Shrink Tubing Kits and Mini spools
Mini-Spool Dispenser: Available with 15 to 100 feet of Raychem
Versafit or RNF-100 Tubing. You decide the length to cut based on
application demand. 8.5" x 8.5" x 2.5" Box.
Kit #1
Versafit Single Wall Tubing
- 126 pieces of 6" cut lengths, black*
Kit #2
Versafit Single Wall Tubing
- 133 pieces of 6" cut lengths, multi-color*
Kit #3
DWP-125 Dual Wall Polyolefin Tubing
- 111 pieces of 6" cut lengths*
- ES1000-No. 1- 6 pieces
- ES1000-No. 2- 5 pieces
- ES1000-No. 3- 5 pieces
- ES1000-No. 4- 3 pieces
|
|
3M™ Dual-Wall Heat Shrink Tubing
Insulates and seals a variety of electrical wiring components. Flame retardant, cross-linked polyolefin, an inner coating of hot-melt adhesive and an outer layer that shrinks to provide electrical and mechanical protection.
|
|
Cable Ties: High Temp Applications
PEEK Ties will withstand temperatures from -55° C up to +260° C. Their chemical resistance, even against acid and gamma radiation is excellent. Furthermore the PEEK Ties have good abrasion resistance.
|
|
|
For over a century, Thomas & Betts has been a leader in providing a broad range of connectors suitable for the majority of all electrical applications. In fact, the high quality, easy-to-use, versatile connectors from T&B have continually helped define the standards used throughout the electrical industry. T&B's family of products includes many of the most-requested brands in the industry including Color-Keyed®, Sta-Kon®, Spec-Kon™ , Shrink-Kon®, Snap-N-Seal®, Elastimold®, Blackburn®, and Marr®. Whatever the application - commercial, industrial, OEM, utility, residential, communications - and whatever the voltage - low, medium or high -- we have the right connector for you. If we don't have it, we'll custom design and manufacture products specifically suited to your application!
|
|
Rayblock 85/ Rayblock 105
•Heat shrinkable water-blocking system designed to provide consistent sealing for cable bundles and the back of connectors
•Environmentally seals wire bundles up to 20 wires
•Withstands temperature excursions to 105˚C (Rayblock 85)
•Withstands temperature excursions to 120˚C (Rayblock 105)
•Excellent strain relief and noise reduction
•Offers a low-profile installed product only marginally larger than the cable bundle itself
•Agency Recognition:
oRoHS Compliant
|
|
|
|
|
|
Heavy Duty Heat-Shrinkable Tubing
SST/SST-FR
-Self-sealing-dual wall tubing provides a simple, positive splice-sealing method that offers protection under adverse environmental conditions
-3:1 Shrink Ratio
-Thick-wall insulation, strain relief and abrasion protection
-FR-Flame-retardant option
-Agency Recognition:
o AMS-DTL-23053/15, Class 1 and Class 2
o Industry- ASTM D 685, nonburning
o RoHS compliant
RHW/RMW
-Rugged medium or heavy-wall tubing specifically designed for insulating, protecting and a wide variety of low-voltage electrical applications
-3:1 shrink ratio
-Highly resistant to impact and abrasion
-RMW available w/o adhesive
-Agency Recognition:
o UL (size restrictions)
o RoHS compliant
BSTS/BSTS-FR
-BSTS heat-shrinkable tubing is made of a rugged polymer that resists moisture, fungus and weathering
-3:1 Shrink ratio
-Excellent thick-wall insulation and abrasion protection
-Various colors
-FR-Flame-retardant option
-Agency Recognition:
o AMS-DTL-23053/15, Class 1 and Class 2 (BSTS-FR only)
o RoHS compliant
|
|
|
|
|
|
RNF-150
•High-performance flexible fluoropolymer tubing designed for jacketing and bundling of wires to form light-duty harnesses, especially where low profile, abrasion resistance and flexibility are needed.
•2:1 shrink ratio
•Highly flame-resistant
•Excellent physical and electrical properties after exposure to many chemicals and solvents at 50˚C (not recommended to use with ketones)
•Agency Recognition:
o UL
o AMS-DTL-23053/18, Class 2
o RoHS Compliant
RT-375
•Clear, flexible fluoropolymer tubing used to protect wire and cable markers subject to extreme abuse, while permitting full inspectability of each item covered.
•2:1 shrink ratio
•Exceptional clarity
•Toughness, chemical resistance and high-temperature performance
•Highly flame-resistance
•Good mechanical strength and cut-through resistance
•Agency Recognition:
o UL
o CSA
o AMS-DTL-23053/18, Class 2
o RoHS Compliant
RW-175
•High-temperature, chemically resistant polyvinylidene fluoride tubing especially suitable for applications requiring high temperature performance, outstanding abrasion resistance and cut-through resistance or superior chemical and solvent properties
•2:1 shrink ratio
•Tough semirigid very thin wall insulation tubing
•Protection from most industrial solvents, fuels, and chemicals
•Agency Recognition:
o UL
o AMS-DTL-23053/8
o Def Stan. 59-97 Type 3
o VG 95343 Pt 5 Type F
o BS 3G 198 Pt4
o VDE 0341 Pt 9005
o RoHS Compliant
|
|
|
|
|
|
Raychem High Ratio Heat-Shrinkable Tubing Products- HRSR, HRHF, HRNF, HRHT and URHT
DESCRIPTION:
• Tyco Electronics manufactures the world’s largest range of heat-shrinkable tubing that provides exceptional cable protection, insulation, environmental sealing and strain relief. High Ratio Heat-Shrinkable tubing, with expansion ratios as low as 4 to 1 and as high as 8 to 1 are designed to accommodate large size transitions between cables, cable connectors and backshells. Thus simplifying repairs of damaged cable as well as sealing the back end of connectors,
•There are five specific families of Raychem High Ratio tubing:
HRHF- High Ratio High Flex
HRSR- High Ratio Semi-Rigid
HRNF- High Ratio Non Flame-Retardant
HRHT- High Ratio Heat-Shrink Tubing
URHT- Ultra High Ratio Tubing
•All of the product families are available with or without adhesive and all are flame retardant, excluding, HRNF.
•With these products, thermoplastic adhesive coating offers excellent strain relief and environmental sealing. HRHF, HRSR and HRNF are also available with water-proof sealant to provide environmental sealing in wet and corrosive locations. In addition, HRHT and URHT have good fluid resistance properties as well as excellent long term heat resistance performance.
|
|
Versafit/ Versafit V2/ Versafit V4/ Versafit-3X
•Electrically insulates and protects in-line components, disconnect terminals, and splices.
•Highly flame-retardant
•Highly flexible
•Low shrink temperatures
•2:1 shrink ratio (Versafit/ Versafit V2/ Versafit V4)
•3:1 shrink ratio (Versafit-3X)
•Agency Recognitions:
o UL (Versafit/ Versafit V2/ Versafit V4/ Versafit-3X)
o CSA (Versafit/ Versafit V2/ Versafit V4/ Versafit-3X)
o AMS-DTL-23053/5, Classes 1 & 3 (Versafit)
o RoHS Compliant
|
|
ES/PD Caps
•Specially designed to provide mechanical and environmental protection of stub splices in electrical harnesses
•3:1 shrink ratio (PD Caps)
•4:1 shrink ratio (ES Caps)
•Rapid simple installation
•Mechanically tough outer jacket that provides excellent strain relief, abrasion protection, vibration and flexing
•PD caps provide a splash-resistant, moisture resistant covering (not intended for full immersion in a fluid)
•Agency Recognition:
o UL
o RoHS Compliant
|
|
VERSAFLEX
Versaflex sleeving is suited for the mechanical protection of wire harnesses, hoses, and all other applications where exceptional flexibilty combined with superior abrasion/vut resistance is required.
FEATURES:
- Flame retardant version available (VERSAFLEX-FR)
- Flexible
- Lightweight
- Fungus proof
- Not affected by most chemical and solvents, non-hygroscopic
- Wide range of sizes
Agency Recognition
- RoHS
- UL (VERSAFLEX-FR)
|
|
