The camera series of high-resolution digital cameras is based on variable camera electronics, low power consumption, advanced circuitry, and an extremely rugged design with an excellent signal quality at the same time. The integrator can choose between color or black-and-white systems, high-quality CCD sensors by Sony and Kodak with megapixel resolution and various interfaces (FireWire/ IIDC compatible, CameraLink, GigE). The digital PS cameras have been designed especially for software integrations. The matching Kappa sdk3 offers state-of-the-art software environment based on .net and C-API. Together with the sdk or the detailed interface description the PS cameras convince as high-performance components in all measuring and testing machines.Kappa provides machine vision cameras with top-quality Sony sensors or with Kodak sensors with high refresh rate and square pixel matrix. The machine vision cameras offer highly linear, low-noise signal processing in real time. There is a wide choice of interfaces: RS 422, FireWire, CameraLink, Gigabit Ethernet, USB, HD-SDI, LVDS, video etc... The machine vision cameras from Kappa offer high frame rates and megapixel resolution. With 12 bit digitization depth, raw data and a parametrizable signal processing the machine vision cameras provide numerous measurement advantages. The machine vision cameras are compatible with common image processing software solutions. Machine vision cameras are designed for integration into machines and systems.
|
|
|
The Pantera TF 11M4 is an advanced, full frame camera that offers a unique combination of megapixel resolution, fast frame rate, large bit-depth, and a Camera Link™ interface. The camera's data rate of up to 2 x 36 MHz provides incredible throughput while its 4008 x 2672 pixel resolution enables you to reduce the number of cameras required for large-area surface scanning. With up to 14 bits of output, this camera is capable of discerning the tiniest differences between gray scales. The DALSA-made sensor used in the Pantera TF 11M4 has extremely low noise eliminating the need for voluminous and costly cooling mechanisms.
|
|
pco.4000
This high resolution 14bit cooled CCD camera system comprises advanced CCD and electronics technology. With the new approach to integrate the image memory (camRAM) into the camera itself, it enables unmatched fast image recording with 128MB/s. The system features thermo-electrical cooling (delta vs. ambient -45°C), a superior high resolution (4008 x 2672pixel) and low noise (down to 12e- rms). It consists of a compact camera with an external intelligent power supply. The image data are transferred via customer selectable standard data interfaces to a computer (IEEE 1394 (“firewire”), camera link). The available exposure times range from 5µs to 49days. This cooled digital CCD camera system is perfectly suited for low light and high resolution camera applications, like microscopy, aerial photography or quality control.
|
|
pco.1600
This high dynamic 14bit cooled CCD camera system comprises advanced CCD and electronics technology. With the new approach to integrate the image memory (camRAM) into the camera itself, it enables unmatched fast image recording with 160MB/s. The system features thermo-electrical cooling (delta vs. ambient -50°C), a superior high resolution (1600 x 1200pixel) and low noise (down to 12e- rms). It consists of a compact camera with an external intelligent power supply. The image data are transferred via customer selectable standard data interfaces to a computer (IEEE 1394 (“firewire”), camera link). The available exposure times range from 5µs to 49days (500ns opt.). This digital CCD camera system is perfectly suited for low light camera applications like fluorescence imaging and microscopy.
|
|
Digital Wavefront Cameras® deliver fast and reliable evaluation of wavefronts with ultimate performances at any wavelengths. Integrating state of the art Digital Wavefront Sensors®, these cameras measure tilts, divergence and convergence of wavefronts with an outstanding resolution only limited by CCD sensor.
Thanks to its flexibility in dynamic and resolution, Digital Wavefront Cameras® can address the most demanding applications in optics, laser beam analysis or in ophthalmology. Digital Wavefront Cameras® represent the latest advances in wavefront sensing providing unique advantages compared to conventional Shack-Hartmann sensors.
|
|
With immediate effect, the DFW-SX910 will replace the DFW-SX900 model. With his high resolution, range of features, and internal colour treatment, the DFW-SX910 camera is ideal for quality-critical colour imaging applications, in any type of fluctuating lighting conditions.
This new advanced digital camera incorporate an IEEE 1394 digital interface, is easy to install and use, and produce highly detailed, uncompressed images.
|
|
|
|
|
|

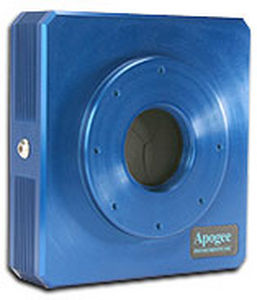

The Alta U16M uses a very large format 16-megapixel full frame sensor with microlensing and anti-blooming gates, ideal for applications requiring large field of view, such as sky surveys and radiology.
4096 x 4096 array, 9 x 9 micron pixels
5 MHz 12-bit and 1 MHz 16-bit digitization
32 Mbyte camera memory
USB 2.0 interface: no plug in cards or external controllers
Programmable, intelligent cooling to 40º C below ambient
Binning up to 8 Horizontal x 4095 Vertical
Subarray readout and fast sequencing modes
Precision time delayed integration readout
Programmable fan speed for low / zero vibration
Two serial port outputs for control of peripheral devices
General purpose programmable I/O port
External triggering and strobe controls
ActiveX drivers included with every system (other software sold separately)
Field upgradeable firmware
Self-test capability with data simulators
Fused silica windows
Runs from single 12V supply with input voltage monitor
Compact enclosure
Programmable status indicators
|
|
|
These are cameras with high resolutions suitable for high detail image observation and measurement.
|
|
|
|
|
|
See incredible resolution with this USB 2.0 camera, providing 3.5 fps at 4008x2672 pixels. Based on a high-quality 43.3mm CCD sensor with global shutter. Unique 10.7 megapixel sensor provides incredible sensitivity with large 9µm pixels and with 12 bit, >65dB dynamic range . I/O control for synchronization with strobe and peripheral devices. Advanced camera functions are available through a comprehensive Software Developers Kit, with sample code and full technical support to quickly integrate camera functions into your application. 3 different lens mount options available: Canon-Mount, F-Mount, K-Mount
CAMERA SENSOR
Image Sensor 43.3 mm (diagonal) format, color or mono, 36.1mm x 24.0mm array
Effective Pixels 4008 x 2672, 9.0ìm square pixels
Frame Rate 3.5 fps at 4008x2672
Sensitivity Excellent
Dynamic Range >65dB
White Balance Auto / Manual
Dimensions (W x H x D) Lw11059 – 3.25 x 2.98 x 5.59 inches
Lw11058 – 3.25 x 2.98 x 5.61 inches
Lw11057 – 3.25 x 2.98 x 5.56 inches
Mass 850g
Power Requirement External 12VDC, 2A (included)
Power Consumption ~18.7 Watts
Operating Temperature 0° C to +50° C
Operating Humidity 5%-95%, Non-condensing
Interface Connector Standard USB 2.0
Lens Mount Canon-Mount, F-Mount, K-Mount
Frame Buffer 1 frame buffer (optional expansion to 6 frames)
|
|
The CoolView VHR is a high resolution CCD camera which has 4000x2672 pixels and interline transfer architecture which allows the CCD to operate without a shutter and at 100% duty cycle. The CCD has a high quantum efficiency of typically 45% @ 550nm.
The camera is deep cooled with DT of 35°C, and uses a Peltier with secondary air cooling. A water cooled version for deeper cooling is also available. The camera has a fast 10MHz readout rate with digitisation to 12 bits and also features a high dynamic range 16-bit mode. The camera features on chip binning and sub area readout.
|
|
|
|
|
|
The INFINITYX-32 pixel shifting camera has been specifically designed for customers in the clinical, life and material science fields. Available at a fraction of the cost of competitive cameras, this complete imaging solution is an extraordinary tool for professionals who require multi-megapixel resolution, sub-pixel detail, precise color accuracy, high sensitivity, 12-bit data, and low noise levels
Live video provides for real-time focus, while auto exposure and auto white balance add to workflow efficiency and throughput. A USB 2.0 digital interface ensures a simple plug-and-play installation with no need for costly and difficult-to-handle framegrabbers.
The INFINITYX-32 includes INFINITY ANALYZE, an advanced and easy-to-use software tool with a wide variety of functions for image enhancement and analysis, including measurement, annotation, archiving and image processing.
CAMERA SENSOR
Image Sensor 1/1.8" format, 32 megapixel CCD, color or mono, 7.1mm x 5.4mm array
Effective Pixels 1616 x 1216, 4.4µm square pixels
Digital Output 8 and 12-bit uncompressed
Frame Rate 12 fps at 1616X1216, 25fps at 640x480
Dark Current (e-/s) 12
Dynamic Range >66dB
CAMERA CONTROLS
Integration Time 1/1000 to 2 sec.
Global Electronic Shutter
Auto Exposure Automatic / Manual
White Balance Automatic / Manual
Gain Programmable / 1 to 10X optimizable
Lens Mount Adjustable C-Mount lens adapter
Dimensions (L x W x H) 3.85 x 2.00 x 2.75 inches
Mass 300g
Power Requirement USB 2.0 bus power, or external 5VDC – 2.5mA
Power Consumption ~4Watts
Operating Temperature 0° C to +50° C
Operating Humidity 5%-95%, Non-condensing
|
|
| ... products without technical information |
| |
|
The product line VarioCAM® high resolution of the German manufacturer JENOPTIK Laser, Optik, Systeme GmbH stands for a new generation of high-performance thermographic cameras based on state-of-the-art uncooled microbolometer FPA detectors with up to 1,280 x 960 infrared pixels.
|
|
|
|
|
|
The VIGOcam v50 camera is designed for temperature distribution measurements and recording in technological device diagnostic. It can be used in various scientific and industrial applications, eg. industrial process control, power and building industry, medical diagnostic and scientific research.
The camera is constructed with the use of a 384 x 288 microbolometric detector array. The new generation, 25 μm pixel, detector array and excellent optics ensure high thermal sensitivity (NETD: 0.08°C @ 30°C) and spatial resolution (1 mrad) of the camera.
The VIGOcam v50 camera is equipped with 3.5" LCD display, video camera, laser pointer, radio link that enables remote control, SD memory card reader, microphone and loudspeaker. Connection with a PC computer is possible via USB or Ethernet port.
The data sent to a PC computer can be processed with sophisticated THERM v50 software which offers various analytical functions to process temperature distribution data including charts, histograms within user-defined regions and report generator. The camera and it's software could be easily adjusted to the customer's specific requirements.
More information: www.v50.vigo.com.pl
|
|
The FLIR P-Series state-of-the-art infrared cameras are designed for professional infrared camera users.
A FLIR P-Series camera is the perfect instrument for users who know the advantages that infrared has to offer, and who rely on an infrared camera at work. Whether you are an infrared consultant or a PDM professional in the utilities- or manufacturing industry, the FLIR P-Series infrared cameras will help you trace anomalies invisible to the human eye.
|
|
