Pointing the way in solid drillingKOMET KUB® solid drills
For more than 30 years, the KOMET KUB® solid drill family has been developing into a leading tool concept. Through the use of high-performance hard metals and coatings of the latest generation, the cutters are optimally matched to the solid drilling process.
|
|
Walter provides its customers with yet another boost in productivity through the introduction of the two new drills from the Xtra-tec® series.
The Xtra-tec® Insert drill with two four-edged indexable inserts is ideal for full or spot drilling on inclined or spherical surfaces.
The Xtra-tec® Point drill is particularly convincing when producing short drill holes or through holes with additional chamfer.
Walter B4213
Increase in productivity from the higher work values
Low hole tolerance thanks to the optimum balance of forces
Excellent surface finish from the WIPER action at the hole diameter
Cost reductions:
– 4 cutting edges per insert
– higher cutting parameters – saving additional follow-up operations
High process reliability from positive
locking of the insert
|
|
SHARK-Drill® Catalogue
• SHARK-Drill®
• Cutting inserts
• VHM twist drills
Perfection: ARNO tools in use!
|
|

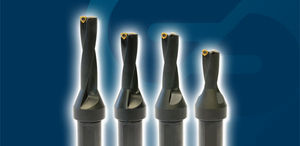

Indexable drills for steels and cast irons
(L/D2, L/D3, L/D4, L/D5)
Highest Productivity, Maximum Performance
New Wiper chipbreaker: -DW
- 2, 3, 4 and 5xd for different bore hole depths
- 4 different high performance cutting grades
- 3 different chipbreaker geometries
- Wiper technology
- Inserts with 4 cutting edges
- Suited for minimum quantity lubricating
- Eccentric sleeve
- Low vibration and low noise drilling of most different cutting materials
- High cutting parameter, reduced machining time
|
|
The Unidrill® product range is a replaceable insert system with the capability of drilling several diameters with one body. Both HSS and carbide inserts are available for drilling all materials.
Geometry CR Grade SP9336
(T15 High Speed Steel with TiAlN PVD coating)
For machining steels, cast irons (including nodular) and non-ferrous materials. This geometry has cross ground point, radial land, chip splitters and a corner protection radius.
Diameter range 10mm - 25mm / 0.390" – 1.000"
|
|
|
Find the toolholder that's right for your application. Available in most ANSI sizes, Tungaloy holders are manufactured to the highest quality standards. Check out our A-Type holders for strong clamping power and fast, accurate indexes
|
|
Indexable Drilling
Kennametal offers the most complete range of indexable drills, ranging from the DFR 12,7mm (.500") to the HTS deep hole drilling system of 270mm (10.63"). Coupled with Kennametal grade technology, the indexable drills offer security, durability, and aggressive cutting speeds.
Drill Fix DFR
High feed rates, better stability, and process safety.
Drill Fix DFT
Most complete range of indexable drills in the metalworking industry.
HTS Deep Hole Drilling System
Flexible indexable deep hole drilling system.
|
|

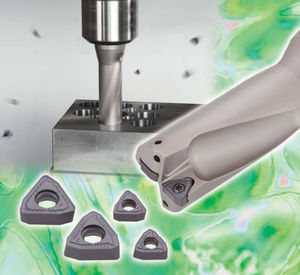

- Economical, 4 cutting edges per insert.
- Low drilling noise and tough body.
- New MIRACLE Coated X/P15TF (US breaker) for stable machining and a wider application area.
JUST FIT SLEEVE
Allows the drill diameter to be increased in increments of 0.1mm up to a maximum of 0.5mm.
|
|
