Jigsaw for heavy-duty sawing applications in wood and metal.
Variable, electronic stroke speed control for optimum cutting speed.

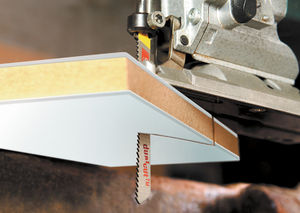

Especially suitable for sandwich materials and stainless steels.
Automatic coolant/lubricant feed with integrated tank.
Can be converted for beam turning with large foot plate.
Air-jet feature for unobstructed view of the cutting line.
|
|
420 ST E
Product features
-Blower device ensures unimpeded view of cutting site
-x-mal-click system enables tool-free replacement of saw blade
- Tool-free adjustment of saw plate for 22.5 and 45º mitres
- Plexiglas screen ensures unimpeded view of cutting site and improves suction power
-Vacuum cleaner connection
- 4 m rubber mains cable
|
|
110mm(4-5/16") Electronic Jig Saw
- Powerful 720W (120V:5.8A) motor
- Tool-less Blade changing system for easy replacement
- Electronic Speed Control Dial located on the best position for operation
- 4-stage Orbital operation for efficient cutting
- Top mounted LED light illuminates the workspace improving cut-line visibility
- Powerful dust blower pushes sawdust and chips away from the cutting path for a cleaner, more visible work surface
- Splinter guard for reducing splintering of cut surfaces
- Soft-touch grip for easier handling
- 2.2kg (4.9 lbs.)light weight
- Cutting stainless steel sheets(CJ110MV and CJ110MVA)
|
|
FEATURES
- 3 orbital settings + straight cutting
Optimum cutting action can be selected by simply turning the change lever.
- Ergonomically designed rubberized grip
Provides more control and comfort while minimizing hand fatigue and pain.
- Thick blade (1.7mm thickness) is available
In addition to the current 1.1mm thickness blade. 1.7mm thick blade performs well in straight cutting and curve cutting to thick workpiece.
Bosch's equivalent can be installed.
- Connectable to vacuum cleaner using hose
(Optional accessory)
- Low vibration
Counterweight balancing system reduces vibration.
Reducing vibration makes operator feel more comfortable when cutting various workpieces.
- Variable speed control by dial
Ensures optimum cutting speed per job.
- Rigid and rust- resistant aluminum bas
|
|
|
|
|
|
Steel until 4mm/Wood until 50mm
Power
Multiple uses with the various saw blades
Adapted to the industrial lifespans

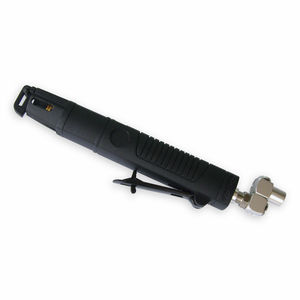

The jig-saws are adapted to the blades of the most varied teeth (additional to order separately), in particular for the industrial lifespans. The cutting speed is adjustable in a few seconds thanks to the adjustment of the exhaust silencers connected on the side. Two frequencies of blades make it possible moreover to adapt to various nanomaterials.
The first bearing unit (1850min-1) is used for the sawing of the following matters:
steel until 400N/mm 2, Al, Cu, ms, wood hard and tender, laminated, thermohardening, plastic reinforced with glass fiber, similar laminates, asbestos cement, and other nanomaterials.
The second bearing unit (1300min-1) is used for the sawing of the following matters:
stainless steel and thermoplastics.
A major part of the outgoing air is evacuated in a quiet way by the laterally connected handle, and thus moves away the unpleasant drafts from the scheme of work. In same time, a small part of this air is employed for cooling of the saw blade and to determine the outline of cut.
The screw with six sides making it possible to tighten and loosen the blade is constantly in the knob handle dévissable.
Of a great utility, certain accessories are available to few expenses: units of maintenance, special oil adapted to the pneumatic machines, balancers, and pneumatic hoses resisting oil.
|
|
Model: ST 800 XE
• Powerful 705 watt motor
• Large 110mm cutting depth
• Patented FIXTEC system for changing saw blades in seconds
• 4–Stage pendulum adjustment
• Variable speed electronics for control
• AVS anti-vibration mechanism for user comfort
• Ergonomic slimline bodygrip design with integrated soft-grip
• Dust extraction port
• Dust blower keeps cut line clear for accuracy
• Base plate can be moved backwards for cutting close to edges
|
|
Used primarily for cutting metal and non-ferrous metals. Milled and set teeth allow for better clearance while cutting metal. Using a larger tooth (6, 8 tpi) allows for more efficient cutting in hard board, wood and other wood composites.
High strength steel cutting edges are hardened to 65 Rc and electron-beam welded to a flexible backer steel offering the flexibility required for longer blades.
|
|
