PS5021 flashlamp driver is designed for pumping of variable or long pulse width solid-state lasers. It features variable pumping pulse in 0.1-2 ms range and output voltage of up to 450 V. This power supply can be remotely controlled through RS232 interface.
FEATURES Excellent pulse-to-pulse stability. The charger is based on resonant inverter topology which is most efficient way to charge capacitive loads. Innovative design of charger circuit allows to charge capacitor bank with an excellent precision of 0.1%.
|
|
The OP750 multichannel source can be configured for a mix of up to 24 individual or switched LED or laser sources.
A single wavelength LED sources feature and internal large core fiber to guarantee an overfill condition into 62.5/125 or 50/125 multimode fiber available for the wavelength 850nm and 1300nm.
The single wavelength sources for 1310nm and 1550nm are terminated with standard 9/125 fiber. A dual wavelength option, 1310nm and 1550nm into a single port is available as well (12 channel version only).
|
|
|
The PDL 800-B is a stand-alone driver for the picosecond diode laser heads of the LDH-Series (375 to 1550 nm) as well as for the sub-nanosecond pulsed LEDs of PLS-Series (260 to 600 nm). These laser heads can emit light pulses as short as 70 ps FWHM (50 ps on selection) at repetition rates from single shot up to 40 MHz with peak powers up to 1 Watt. The PDL 800-B features easy-to-use controls for pulse width, repetition frequency and laser power level.
|
|
|
|
|
|

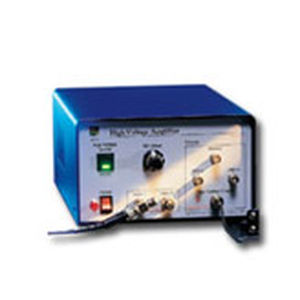

The Model 3211 is a workhorse amplifier for driving capacitive loads such as broadband electro-optic (EO) modulators and piezoelectric transducers.
The Model 3211 incorporates high-slew-rate, high-voltage operational-amplifier technology to give you extremely precise linear operation over a wide range of input voltages and frequencies. The ±200-V output will swing our broadband EO modulators (pages 43, 45) through 180° of phase shift with bandwidths of up to 0.6 MHz. The peak-to-peak output noise is less than 100 mV in a 1-MHz bandwidth.
The front-panel controls include an easy-to-reach, high-voltage on/off switch and a DC off-set that sets the output level anywhere from - 200 V to +200 V, allowing an EO amplitude modulator to be biased for optimum linearity without additional components. Two inputs allow signals from separate sources to be sum-med and amplified. Two bias outputs of +200 V and - 200 V allow single-polarity operation for piezoelectric transducers and other compo-nents. A monitor output provides 1/30 of the output voltage for display on an oscilloscope.
|
|
- Laser diode current source with integrated 32W temperature controller
- Three models available with up to 4A laser drive current
- GPIB/IEEE-488 remote interface
- High stability, low noise laser current source operating in constant power or constant current modes.
- Analog modulation capability to 1MHz
- 4-wire laser forward voltage measurement and adjustable voltage limit
- Temperature controller compatible with thermistor, IC, and RTD temperature sensors
- Temperature stability of ±0.004°C
- TE voltage measurement
|
|
|
The OP250 is a configurable stabilized light source with a variety of Lasers and LEDs. Available in a single port or dual port configuration, selectable wavelengths, and various power levels and industry standard optical interfaces this instrument offers all the features and functions necessary for the development, testing and inspecting of optical components and cables.
|
|
|
The UC-2000 Universal Laser Controller provides an easy user interface for total control of laser power, duty cycle, and modulation frequency. Power control is achieved by pulse width modulation (PWM) at selectable clock frequencies of 5, 10, and 20 kHz. Compatible with Synrad's entire line of CO2 lasers, the all-digital UC-2000 features an easy-to-read LCD screen and easy set-up. Available in standard or rack-mountable packages.
|
|
|
|
|
|
General description:
The SurfBoard-USB is a fully featured board, which provides reliable performance for controlling and synchronizing I/O, 2 and 3-axis scan heads and virtually any laser. The board can operate from any PC platform with a USB port - including laptops and embedded PCs. Gone are the days of opening a bulky desktop to install a board or worrying about address or IRQ conflicts. The SurfBoard-USB is a truly plug-and-play product.
Measuring only 10x10cm, the SurfBoard-USB operates with Windows XP / Vista on NTI's industry leading WaveRunner laser / scanner control software. Your laser scanning system will not be waiting for data with the incredibly fast USB 1.1 or 2.0 PC interface and the 10 micro second laser / scanner update rate. The board includes on-board flash memory to store large jobs, plus 6 inputs and 6 outputs used for automation and a pointer control, mark-in-progress signal, start mark signal, and mark-on-the-fly encoder inputs. Scan head control is through an industry standard XY2-100, 16-bit digital interface or an optional analog interface. Laser control is provided via standard PWM, analog or 8-bit digital signals.
Each board is packaged in a small, rugged enclosure, which can be remotely mounted to facilitate easy system installation. And don't worry about losing your software dongle, because with the SurfBoard-USB, there is no software dongle required.
|
|
Laser Controller
The Laser Controller LC201 is the control- and operation-module for all of the Taufenbach laser systems.
The power and the frequency of the lasers can be adjusted.
The system is provided with a key switch, an emergency switch and inputs for external interlock circuits so that laser systems complying with the demands of laser class 4.
The housing is designed as a 19“-rack-mountable package.
- For all Taufenbach Lasers
- Laser class 4
- Power control - adjustable from 0 to 100 %
- Frequency control - adjustable from 1 Hz - 100 kHz
- Key switch
- Emergency switch
- 2-channel interlock
- Small rack-mountable package (19”)
|
|
The Vitesse family of laser drivers are production-proven and include variants optimized to each of the optical module applications.
Key Features
- Built-in support for IEC-60825 eye safety (VSC7964, VSC7966, and VSC798x)
- Duty cycle, output modulation, and output bias level controls (VSC7980, VSC7981, and VSC7982)
- Programmable output data eye crossing point (VSC7983 and VSC7984)
- Integrated limiting amplifier (VSC7964 and VSC7966)
- Internally stabilized modulation and bias outputs (VSC7983 and VSC7984)
|
|
FEATURES:
- Ultra Low Noise: <10mA*
- High Current without Heat Sink: 1A
- High Absolute Accuracy: <0.1%
- High Stability: 100ppm/°C
- Dual Modulation Ports: High/Low Speed
- Low Drop Out Voltage: 1V
- Complete Shielding
- Compact Size
- SMT Package Available
- *Total RMS between 0.1Hz to 0.5MHz.
APPLICATIONS
- Driving diode lasers with low noise, including DPSSLs,
EDFAs, fiber lasers, diode laser modules, etc.
|
|
| ... products without technical information |
| |
|
The ZL40514 is a high performance laser driver capable of driving two separate cathode grounded laser diodes (e.g. 650 nm and 780 nm laser diodes). The ZL40514 contains a 150 mA low noise read channel (ChR), and three 500 mA LVDS controlled write channels (Ch2, Ch3 and Ch4). The Read channel amplifies the positive current supplied at its reference input, INR, by a fixed factor of 100. Write channels amplify the positive currents supplied at its reference input IN2, IN3, and IN4 by a fixed factor of 240. An on-chip RF oscillator is provided for the reduction of laser mode hopping noise.
|
|
| ... products without technical information |
| |
|
|
|
|
General Construction Lasers
Construction Lasers of the Rugby Series
Work confidently with the Rugby Series General Construction Lasers - self-leveling for jobs of any size, large or small. The Leica Rugby has the features you need to get the job done.
Select the right product for your needs:
Leica Rugby 260SG, 270SG & 280DG
Make the Right Choice! The Leica Rugby 260SG, 270SG and 280DG offer the contractor a real choice of features and functionality.
Leica Rugby 200
Rugged - Dependable - Accurate - Versatile: The Rugby 200 is a heavy duty, horizontal and vertical self-leveling laser. Completely sealed, The Rugby 200 is ideal, inside and out, for both general and interior construction applications.
Leica Rugby 100/100LR
Lasers make faster work of any layout job while eliminating costly errors and downtime. The Leica Rugby 100 and 100LR have become the standard in general construction lasers. Ruggedness, accuracy and reliability have been key to the success of the Leica Rugby.
Leica Rugby 50
Simple, one-button operation, fully automatic, general construction laser. Following in tradition of the Rugby family...
|
|
|
|
|
|
SINGLE GRADE LASERE
- with slope in the X-direction
ML3
The ML3 is a single grade laser. It is built to be strong and robust. The mechanical/Optic unit is mounted in an aluminium housing. The housing has an integrated ergonomical handle for easy positioning.
The ML3 is waterproof (IP 68), and activates a self calibrating feature every time the power is turned on.
The ML3 has special designed optics to obtain a long working distance.Single Grade Lasere ML 3
The ML3 has a click-function control panel with 5 buttons for:
- Increasing the grade (up to 10%)
- Decreasing the grade
- Selection of rotational speed
- Manual/Automatic selection
- Power on/off
The 4 character high intensity LED display gives information about the grade setting as well as working and battery conditions. The ML3 is powered by the widely known standard Makita™ type 7.2 V battery. The battery is very easy to exchange without any tools. One recharge that can be done in one hour, lasts for approximately 30 hours of operation. The ML3 is delivered in a carrying case along with: Battery charger, Battery, Handheld detector HS10.
|
|
|
|
|
|
The Spectra Precision® Laser LR50 Laser Display Receiver is designed to be used as a stand-alone display receiver on grading and excavating equipment including: dozers, excavators, backhoes, scrapers, and box blades. The easy-to-use LR50 features versatile 360-degree laser reception and works with all types of rotating lasers on all types of machinery for fast, no-hassle setup. Rugged and waterproof, the LR50 receiver withstands all weather environments. Internal isolating shock mounts protect the electronics.
Features:
-Built-in blade tilt indicator helps the operators keep the blade level for increased accuracy and productivity.
-Center On-grade provides an equal amount of grade information above and below on-grade. Use on dozers, graders, scrapers and box blades.
-Offset on-grade for productive excavation provides additional above grade information for less undercuts.
-Built-in plumb indicator for fast, accurate grade checking for excavators and backhoe's.
-Up to six channels of grade information plus directional out-of-laser beam indicators.
-Three selectable accuracies meet job tolerances from rough grading to final finishing for maximum flexibility.
-Adjustable, ultra-bright LED with green on-grade display provides user selectable, easy-to-see display to match ambient lighting conditions.
-Use as standalone display receiver or with CB25 Single Control Box for an affordable blade control solution.
-Used with Spectra Precision Laser RD10 Remote Display.
Used on:
Dozers
Graders
Scrapers
Skid Steers
Box Blades
Levelers
Kilvers
|
|
|
|
|
|
DUAL GRADE LASERS
- with slope in both the X- and Y-direction
Laser ML 4ML 4
Rugged design – All ML 4 models are built to be strong and job-site tough. The mechanical / optical unit is mounted in a sealed waterproof aluminum housing. The housing has an integrated handle for ease of handling.
Ease of set up – Setting up the laser is very simple. Just place the laser approximately horizontal, then the automatic self-leveling will correct the beam’s position up or down.
Ease of use – The ML 4 utilizes an integrated LCD display and a touch button control panel.The functions are:
• Grades in both X- and Y-axis.
• Reversing the grade setting (±).
• Rotation (electronic) of optical axis.
• Manual/Automatic selection.
• Lateral adjustment, Left/Right for ML 4V.
• Selection of rotational speed.
Remote control – All ML 4 models come standard with an IR remote control.
Remote control functions are:
• Stand-by.
• Reversing the grade setting (±).
• Rotation of optical axis.
• Lateral adjustment, Left/Right for ML 4V.
Power save feature – Whenever the ML 4 is placed in the case the power is turned off automatically.
|
|
|
|
|
|
The robust Trimble LR400 receiver combined with the GL700 transmitter is designed specifically for earthmoving applications performed with larger machines like dozers, scrapers and excavators. The receiver features center on-grade for use with dozers and scrapers and an "excavator mode" for use with excavators and backhoes. Using the excavator mode, more above-grade information is displayed making it easier for the operator to lower the bucket and cut to the correct grade.
Features & Benefits:
-Large LED display arrows indicate "high" or "low" with amber lights and "on-grade" with green lights so the operator can quickly and easily move the cutting edge to a desired elevation, especially on larger machines such as excavators, dozers and scrapers, for improved productivity.
-Adjustable accuracy bandwidths and distinct modes for specific applications and equipment provide flexibility to meet the machine needs and the accuracy requirements of the job.
-Selectable "on-grade" location and accuracy indicators provide improved efficiency and allow customization of the receiver to each unique application.
-Rugged, waterproof magnesium housing withstands tough jobsite conditions.
-Powered using its own battery or using the machine's battery.
Applications:
Site prep
Building pads
Sewage and storm drains
Landfill sites
Balancing materials
|
|
|
The UC-2000 Universal Laser Controller provides an easy user interface for total control of laser power, duty cycle, and modulation frequency. Power control is achieved by pulse width modulation (PWM) at selectable clock frequencies of 5, 10, and 20 kHz. Compatible with Synrad's entire line of CO2 lasers, the all-digital UC-2000 features an easy-to-read LCD screen and easy set-up. Available in standard or rack-mountable packages.
|
|
|
|
|
|
General description:
The SurfBoard-USB is a fully featured board, which provides reliable performance for controlling and synchronizing I/O, 2 and 3-axis scan heads and virtually any laser. The board can operate from any PC platform with a USB port - including laptops and embedded PCs. Gone are the days of opening a bulky desktop to install a board or worrying about address or IRQ conflicts. The SurfBoard-USB is a truly plug-and-play product.
Measuring only 10x10cm, the SurfBoard-USB operates with Windows XP / Vista on NTI's industry leading WaveRunner laser / scanner control software. Your laser scanning system will not be waiting for data with the incredibly fast USB 1.1 or 2.0 PC interface and the 10 micro second laser / scanner update rate. The board includes on-board flash memory to store large jobs, plus 6 inputs and 6 outputs used for automation and a pointer control, mark-in-progress signal, start mark signal, and mark-on-the-fly encoder inputs. Scan head control is through an industry standard XY2-100, 16-bit digital interface or an optional analog interface. Laser control is provided via standard PWM, analog or 8-bit digital signals.
Each board is packaged in a small, rugged enclosure, which can be remotely mounted to facilitate easy system installation. And don't worry about losing your software dongle, because with the SurfBoard-USB, there is no software dongle required.
|
|
Laser Controller
The Laser Controller LC201 is the control- and operation-module for all of the Taufenbach laser systems.
The power and the frequency of the lasers can be adjusted.
The system is provided with a key switch, an emergency switch and inputs for external interlock circuits so that laser systems complying with the demands of laser class 4.
The housing is designed as a 19“-rack-mountable package.
- For all Taufenbach Lasers
- Laser class 4
- Power control - adjustable from 0 to 100 %
- Frequency control - adjustable from 1 Hz - 100 kHz
- Key switch
- Emergency switch
- 2-channel interlock
- Small rack-mountable package (19”)
|
|
The Vitesse family of laser drivers are production-proven and include variants optimized to each of the optical module applications.
Key Features
- Built-in support for IEC-60825 eye safety (VSC7964, VSC7966, and VSC798x)
- Duty cycle, output modulation, and output bias level controls (VSC7980, VSC7981, and VSC7982)
- Programmable output data eye crossing point (VSC7983 and VSC7984)
- Integrated limiting amplifier (VSC7964 and VSC7966)
- Internally stabilized modulation and bias outputs (VSC7983 and VSC7984)
|
|
| ... products without technical information |
| |
|
|
