D E S C R I P T I O N

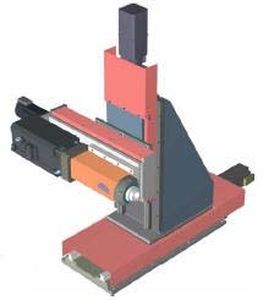

Micro Stages MT-55 are especially suited for the integration in difficult accessible places and limited space conditions. MT-55 can be employed for precise and high-resolution positioning of small construction parts such as fibres, optics and laser diodes. MT-55 can be assembled without problems to XYZ-modules. MT-55 is equipped with zero-backlash ball screws and precision lead screw with 0.25 mm pitch. The Micro Stage MT-55 is driven by a zero-backlash toothed belt and DC-, or 2-phase-step motor with zero-backlash gear. Quiet smooth move and highest resolution up to 0.0137µm is guaranteed (SMC). The travel range is 5 mm. MT-55 is provided with a center hole of 15 mm diameter, so it is well suited for all tasks of microscopy. Two limit switches prevent damage from accidental overtravel. The XY-assembly can only be made at plant and must be indicated when ordering. (Code: 6219-9-X20).
