Bolts PROSAFE
Bolts with stem, lever or chain.
Stems available in various lengths.
No necessary electric connection.
Locking of cams, valves, doors of safety, ...
|
|
Heavy duty version of lock. This product has been specifically designed to withstand harsh environments due to special formulation of the metal (an alloy of copper and aluminium) and the increased size of both the body and all the internal elements. Vibration, dust, cement and other destructive elements are handled completely by the S series. Mechanical locking of power supply, valve, control circuit ...Connection with a safety switch permits the locking of the control circuit.
Key code directly integrated into the lock body.
STI provides individual key number management by installation site (please contact us).
Related to an access lock, this version of the device does not need any wiring (key transfer)
|
|
ACE Controls now offers a series of products, titled the LOCKED SERIES, specifically designed to lower machine process costs and increase service life as well as operational safety.
The installation of ACE LOCKED SERIES safety clamping products decreases the forces occuring when problems such as, power failure, programming error, erroneous switching or other problems occur.
All elements of the ACE Controls emergency stops are independent of the power supply and are not dependent on any part of the machinery that they protect and thus act as an independent brake system for the respective drives.
|
|
|

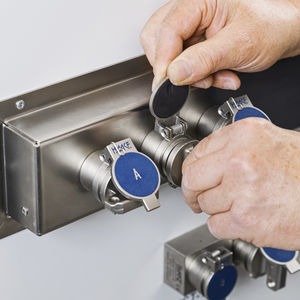

Such guard locking devices are for instance key-operated mechanical interlocks, also called trapped-key systems. They are based on the easy-to-understand premise that a key cannot be in two places at the same time - it can for instance be inserted in a switch OR be used for opening a guard. Another safety-relevant feature is that a key can only become free in a safe condition, when there are no hazards - a switch is turned off, a guard interlock is closed and locked.
|
|
|
|
|
|
The NX range permits a module selection which includes at the same time mechanical interlocking systems so that it turns into one single element.
The NX range is a versatile and modular system for machinery guarding applications. The NX range is composed of mechanical bolt locks with modules like herses for padlock or electrical contact of security, and accessories from different latches type.
The principle of key release and locking is directly integrated in the interlocking system.
The NX range is completely evolving and can be tailored for any application due to its modular configuration. NX is also easily adapted to changing circumstances. As regulations or procedures change, modules can be removed and new features can be simply added to the unit. This range is totally suitable with security norms in force which always are becoming stronger.
The different components of the NX range are completely built in stainless steel so that they can give a perfect resistance to harsh environments. Fields of application are diverse: concrete, chemistry, energy, electric, etc…
In order to respond to the requirements of the industry branch, Serv Trayvou has developed the NX-range whose system is modular and very heavy duty.
Through this range STI proves all its expertise and technical know-how which place the company as a specialist in safety devices for hazardous machines.
|
|
This lock allows :
> The locking of machines such as disconnecting switches, circuit breakers with a complementary condition (authorization delivered by robot, temporization, null velocity pick-up...)
> With contacts on the rear of the bolt, the interlocking of many switches, circuit breakers, disconnecting switches, with complementary condition and indication.
> With a contact on the front of the bolt, the interlocking of control circuits in open position with complementary condition.
The electromechanical lock is equipped with:
> a green LED power indicator
> a pushbutton of voluntary operation and energy saving
> an internal wiring connector block.
> a mechanical override system with a key that is used in case of power failure.
Positive security : Opening of the circuit by the wrenching of the contact related to the key operation.
|
|
This lock allows the locking of accesses such as sliding doors, caps, casings and other guards.
Made up of stainless steel to resist to aggressive or corrosive environments. The NXOL lock
equipped with the optional Chain Key can support a high degree of misalignment.
Operation : Authorisation key free, latch trapped.
|
|
Guillemin type coupling with an integrated locking system.
This global solution forces the operator to unlock the device before connecting a flexible tube.
Mechanical model: connection is permitted by introducing the key
Electro-mechanical model: connection is permitted by an electrical signal
Permits error proofing (product in bad conditions, silo in bad conditions,) during transfer operations.
The contact sends a signal.
Function: loose key – connection not permitted/ key in position – connection permitted.
|
|
| ... products without technical information |
| |
Latches
Slam action latching solutions promoting safety and reliability in a variety of types and duty ranges including FMVSS 206 compliant for entrance, compartment, access doors and panels plus other applications.
Handles
Ergonomic, stylish handles promoting safety and security in a variety of materials, finishes and styles including FMVSS 206 compliant for entrance, compartment, access doors and panels plus other applications.
Linkages
Functional linkages and rods provide locking logic or remote connectivity between latches and handles.
Electrical/Electronic
The addition of keyless electronic products adds a further dimension of functionality, convenience and security to our access door systems.
Hinges
Door and glass window hinges in a variety of materials and finishes.
|
|
|
Normont inventories a diversified portfolio of locks, latches and locking systems. We inventory Adjustable Trigger-Lock Latches, Flush Mounted Latches, Flush-Mounted Channel Latches, Container Draw Latches, Adjustable Container Draw Latcheses, Heavy Duty Adjustable Container Draw Latches, Self-Closing Latches, Two Point Self-Closing and Toggle latches.
|
|
| ... products without technical information |
| |
The Ball Lock Mounting System was designed to locate and lock two flat stationary surfaces in a machine tool. Use of the Ball Lock Mounting System in other applications can result in different forces and stresses being exerted on the system components. End users must calculate the forces and stresses generated prior to their using Ball Lock in a different application.
The Ball Lock Mounting System is used as a Quick Change Solution on the following:
• CNC Machines
• Palletized Fixtures
• Stamping
• Fabricating
• Injection Molding
• Packaging Machines
• Assembly Machines
• EDM
• Robotics
• Welding Fixtures
|
|
|
The WDS Ball Lock System is designed to speed the accurate locating of fixture plates and subplates. When in position all that is required is a couple of turns on each set screw in each locating bush and full holding force is applied.
|
|
Zeropoint Quickclamping cylinders with pusher and central locking against pollution for automatised solutions
Hydraulic release
Cover and piston hardened
Repeat accuracy < 0,005 mm
Assembling diameter Ø 78 mm
Pull in force 20 kN
Holding force 55 kN
Use:
For installation in base plates, machine tables, clamping profiles, columns and towers, machine pallets and clamping pallets.
Note:
Through the central locking the pollution particles can not go into the nipple bore. The central locking element advances with an individually defined spring force
Blowing out and sputter functions
On request:
- Installation diagrams on request
- Hydraulic move-out of central locking
|
|
ALUFIX XL is a range of strong modular fixturing elements for building fixtures on their own or together with ALUFIX Classic elements. Bars are available up to 10 metres long, other elements include coupling plates and connecting elements. ALUFIX XL is often used for the basic frame of a fixture where less flexibility is required and users move on to ALUFIX Classic for part supports. Also for complete fixtures destined for long term uses this system is sometimes preferred. Reusability is 100 percent.
The system is available in sizes XL50 (bars are 50x50) and XL100 (bars are 100x100) and both are compatible with ALUFIX Classic. The profiles are only machined in the ball seats, which allow accurate and stable ball and seat connection as opposed to connections using holes in ALUFIX Classic.
|
|
Container Hook VCH 20 with Safety Locking Device
Suitable for ISO container edges. With a patented safety locking mechanism. A clevis connection for the 22 mm VIP chain. Using a VRG - 16 connector, the chain diameter can be reduced and thus a 16mm VIP - chain can be used .
Attention: RUD-VCH 22-Hooks are not suitable for vertical lifting. Given a minimum inclination angle of 30° during the lifting process, the hook cannot automatically open.
Connecting bolt and tensioning sleeve are pre-assembled.
|
|
• Huck HuckLok
-Wide grip range – Accommodates a large variation in joint thicknesses
-Structural fastener - high shear & tensile strength
-Large blind side footprint – ideal for lower strength or thin sheet joint materials
-Flush pinbreak – No catching on clothes, skin or goods. Quick and easy visual inspection
-Internal pin locking mechanism – Secure within the rivet body and protected from corrosion, plus additional blind side pin locking for increased fatigue life
-Headstyles - Protuding
-Materials – Steel
-Diameters - 4.8mm, 6.4mm
|
|
• Huck BOM
-Very high strength/diameter ratio – can be used in demanding structural applications as an
alternative to threaded fasteners or welding
-Very high joint tightness when compared to conventional blind fasteners
-Very resistant to tampering, extremely hard to remove
-Excellent gap closure capability
-Large blind side footprint – ideal for lower strength or thin sheet joint materials
-Headstyles - Protuding
-Materials – Steel
-Diameters - 4.8mm, 6.4mm, 7.9mm, 9.5mm, 12.7mm, 15.9mm, 19.1mm
|
|
• Huck Auto-Bulb
-Purpose design blind side shape for easy hole locating - ideal for automated assembly
-Large blind side footprint – ideal for lower strength or thin sheet joint materials
-Good blind side clearance – less space required on the blind side prior to installation
-High pin retention prevents possibility of noise/vibration in dynamic assemblies
-Recessed pinbreak – No catching on clothes, skin or goods
-Structural fastener – high shear & tensile strength
-Headstyles -Protuding
-Materials – Steel
-Diameters - 4.8mm, 6.4mm
|
|
• Huck Magna-Bulb
-Extra large blind side footprint – ideal for lower strength or thin sheet joint materials
-Structural fastener – Very high shear strength and high tensile strength.
-Flush pinbreak – No catching on clothes, skin or goods. Quick and easy visual inspection
-Internal pin locking mechanism – Secure within the rivet body and protected from corrosion
-Headstyles - Protuding
-Materials – Steel
-Diameters - 4.8mm, 6.4mm, 7.9mm
|
|
• Huck Magna-Lok
-Wide grip range – Accommodates a large variation in joint thicknesses
-Structural fastener - high shear & tensile strength
-Excellent gap closure capability
-Outstanding hole filling on the blind side – Excellent joint tightness and very resistant to
water ingress.
-Flush pinbreak – No catching on clothes, skin or goods. Quick and easy visual inspection
-Internal pin locking mechanism – Secure within the rivet body and protected from corrosion
-Headstyles - Protuding, truss, countersunk
-Materials - Steel, stainless steel, aluminium
-Diameters - 4.8mm, 6.4mm, 9.5mm
|
|
... see all the products in the category
Rivets
|
Parts which are circular, have several edges, or are
excentrical in the diameter range of 3 to 14 mm
and 10 to 70 mm long can be produced as solid or
hollow parts. Multi-stage presses and ancillary
equipment of the latest design are available for
production. Design office and tool shop are all inhouse.
|
|
|
|
|
|
As soon as it becomes clear that a fastening problem cannot be solved with normed or standardized elements, it is advisable to use special parts. Changing parameters slightly to adapt a standardized part to your special case is sometimes enough. In other cases a completely autonomous trial solution is required. In both of these cases, Lederer is the right partner for you. On the basis of the information that you provide, we procure every desired special part in every desired material, either by drawings or on the basis of existing samples.
This includes:
- Swiveled parts
- Extruded and press forged parts
- Hot-formed parts
- Cast and forged parts
- Stamped and bent parts
- Security screws
As regards the individual specifications, there are hardly any limits to what you can request:
- in all diameter ranges and all thread mouldings (fine-, left-, UNC-, BSW- etc.)
- in all materials (stainless steel, steel, special materials)
- in all product classes and their corresponding demands
- with all surfaces, coatings and securing elements
It goes without saying that special and designed parts are subjected to the same stringent quality checks as our normed and standardized parts. The same applies to the fact that you will receive test certificates in accordance with DIN EN 10204.
|
|
Application examples: Adjuster Gears
High strength cold forged adjuster gears
New, more stringent crash test parameters require pinions with higher mechanical strength. The cold forged net-shape adjuster gears offer higher strength gear teeth, combined with precision tolerances to offer improved reliability and performance.
Cold forged pinions: Higher mechanical strength than current sinter or machined metal pinions
Increased fatigue durability
Precision tolerances: Can eliminate expensive secondary operations
Hollow parts if required: Optimal component weight
Complicated geometries: Design flexibility
possible: Low cost component solutions
Application examples
Seat adjustment elements: Longitudinal adjustment; Backrest adjustment; Seat height & tilt adjustment
Seat belt pre-tensioner
Hand brake adjuster
Gears
|
|
|
|
