The FaroArm Quantum® - The world's most advanced measurement arm
Available in 6- to 12-foot working volumes and either 6- or 7-axis models, the FaroArm Quantum offers accuracy comparable to fixed CMMs - the first eight-foot arm with proven measurement precision within +/- .0007" ( +/- .018mm); a fifth the width of a human hair.
The Quantum represents the latest generation of the FaroArm product line and continues to eclipse competitive models in every category.
-Repeatability: The first 8-foot portable arm certified to .0007" (.018mm) repeatability
-Bluetooth® Cable-Free Operation: Inspect and digitize up to 30 feet (10m) away - even through walls. Uses less power than Wi-Fi and even supports point streaming
-Exclusive FARO i-Probe: Automatic size recognition and built-in temperature sensor
-Auto-Sleep Mode: Automatically turns off unit to save energy, extend component life
-Universal Quick Mount: Adds mounting flexibility while reducing setup time
-Ergonomic Handle: Improves ease-of-use, comfort, and measurement effectiveness
These industry-leading features make the Quantum the ideal tool for companies constrained by the limitations of fixed CMMs and lesser quality portable models.
Key Benefits of the FaroArm Quantum:
-Ends the reliance on hard-to-use and time extensive fixed CMMs
-Design parts and products with ease and precision
-Mount and measure parts in process, at the part
-Increases productivity with reduced measurement and inspection times
-Increases production efficiencies and deliver products more quickly
For more information visit: www.faroarm.faro.com
|
|
|
|
|
|
The FaroArm® Quantum: The Ultimate Portable CMM!
Quality in production begins with accuracy in product measurements. To achieve the highest levels of accuracy, manufacturers were forced to measure their parts in a controlled environment using large, expensive coordinate measuring machines. qsd
Until now. FARO has advanced portable measurement beyond levels previously thought impossible. The FaroArm Quantum has the power to inspect and perform CAD-to-part analysis in any environment - with an 8ft. volumetric accuracy of up to +/-.0006'' ( /-16 microns) - a fifth the width of a human hair!
MAIN BENEFITS:
* 30% More Accurate: The only 8-foot portable measurement arm certified to .0007'' (.018mm) accuracy.
* Bluetooth Wireless Operation: Inspect & digitize up to 30 feet (10m) away - even through walls.
* Auto Sleep Mode: Automatically turn off unit to save energy and
extend component life.
FEATURES
- Exclusive FARO i-Probe: Individually serialized with automatic size
recognition and built-in probe temperature sensor
- Universal Quick Mount: Adds mounting flexibility while reducing setup time
- Ergonomic Handle: Improves ease-of-use, comfort and measurement effectiveness
- Temperature Compensators: Allows the FaroArm to react to thermal variations for optimal accuracy
- Joint Stress Overload Sensors: Prevent improper use and unnecessary wear
|
|
|
|
|
|

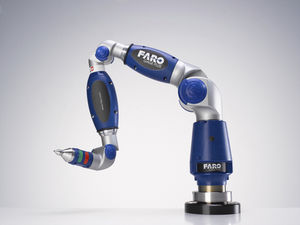

FARO® Gage: Measure it Where You Make it!
FARO Gage, Gage Plus and PowerGage are high-precision, portable 3D coordinate measurement systems with a working range of 1.20 metres and a measurement accuracy of ±0.005 mm (±0.0002’’). A variety of attachment options enable rapid deployment directly at the workplace or in a processing centre. With FARO PowerGage, components can be measured and inspected based on CAD data, as well. The measurement system contains a powerful software programming module, as well as a player module for fast orientation.
Typical applications
Assembly inspection, geometry checks, on-machine inspection (OMI), part inspection, part-to-CAD comparison, surface inspection
Common industries
Aerospace, automotive, mechanical engineering, metal working, tool & mould making and other manufacturing industries
Highlights
very high measurement accuracy up to ±0.005 mm (±0.0002’’)
measurements right at the workplace
integrated power supply for cordless operation
internal counterbalancing makes operation with one hand possible
very easy creation of measurement sequence programmes (PowerGage)
outstanding price/performance ratio
|
|
|
|
|
|
The Quantum FaroArm: The Ultimate Portable CMM!
Quality in production begins with accuracy in product measurements. To achieve the highest levels of accuracy, manufacturers were forced to measure their parts in a controlled environment using large, expensive coordinate measuring machines.
Until now. FARO has advanced portable measurement beyond levels previously thought impossible. The Quantum FaroArm® has the power to inspect and perform CAD-to-part analysis in any environment - with an 8ft. volumetric accuracy of up to +/-.0007'' ( /-18 microns) - a fifth the width of a human hair!
MAIN BENEFITS:
* 30% More Accurate: The only 8-foot portable measurement arm certified to .0007'' (.018mm) accuracy.
* Bluetooth Wireless Operation: Inspect & digitize up to 30 feet (10m) away - even through walls.
* Auto Sleep Mode: Automatically turn off unit to save energy and
extend component life.
FEATURES
- Exclusive FARO i-Probe: Individually serialized with automatic size
recognition and built-in probe temperature sensor
- Universal Quick Mount: Adds mounting flexibility while reducing setup time
- Ergonomic Handle: Improves ease-of-use, comfort and measurement effectiveness
- Temperature Compensators: Allows the FaroArm to react to thermal variations for optimal accuracy
- Joint Stress Overload Sensors: Prevent improper use and unnecessary wear
|
|
|
|
|
|
FARO Gage: Measure it Where You Make it!
The FARO Gage and Gage-PLUS are the industry’s first line of personal Coordinate Measuring Machines (CMMs). With their 1,2m (48”) working volume, they are the “mountit-to-where-you-make-it”, truly portable, cost-effective, 3-Dimensional, minimal-training gages for machinists. The FARO Gage line replaces all conventional gaging devices with an expandable library of gaging tools. Save time and money by replacing your cluttered inspection area with the one tool that can do it all.
Bringing new power to in-process inspection and CAD-to-part verification, the PowerGAGE includes a high-powered, easy-to-use programmer module, no-train “player” module, and extremely accurate 4-foot measurement arm. Program it once and you’re done, even directly use CAD data for nominal. It was designed by and for machinists to speed through measurement challenges and produce the most accurate results available. Shop-hardened and temperaturecompensated, it allows anyone, anywhere to measure in 3-D with previously unheard of precision.
|
|
OMEGA, the affordable measuring portable Arm for 3D inspection needs.
Its ergonomics, its robustness and the infinite rotation make OMEGA your
ideal metrology tool for all your applications (geometrical measurement, surface control, reverse engineering…)
OMEGA Arm is the most economic portable measuring system with 6 lengths of arms available. Take advantage of the best ratio Price/Performances to improve quickly and efficiently all your controls in the fields of sheet metal, plastics, woodworking, foundry, fabricating, wires and tubes…
The OMEGA series offers total compatibility with all Romer accessories and equipment (sensors with or without contact, scanning probes, digital rails, VPS…)
For totally autonomous use, the OMEGA Arm is provided with a fixing puck for quick installation and a wireless battery pack with optional WiFi communication. Go for affordable measurements without constraints by using the OMEGA Arm.
|
|
Designed exclusively for today’s machine shop, the six-axis ROMER Multi Gage is a portable precision CMM with a 1.2 m measuring volume. The new Multi Gage is used for dimensional control of molds, parts, tooling, castings, and more. Its quickmount system allows the CMM to be setup for on-demand measurement and inspection of parts or assemblies on your machine tool or anywhere on the shop floor.
New plug-and-measure probes: Using Swiss-made multi-wire connectors from TESA, the same type used on the TESASTAR-M motorized probe head, ROMER’s longstanding automatic probe recognition feature is now coupled with a highly proven, robust kinematic joint connection. The probes are automatically recognized and identified by the software – just like on a large CMM – with no recalibration of probes required when changing from probe to probe.
|
|
Articulated FLEX Arms
Worldwide exclusive technology.
The FLEX combines 2 arms of different sizes in only 1 piece of equipment with accuracy required for each configuration. By selecting 2 arm lengths, FLEX will correspond to the right volumes and accuracy of the parts to be controlled. Fast and easy arm length (under 2 minutes).
|
|
ArmTube and G-Tube : the latest technology in non contact measurement.
Non contact infrared and laser technology for no tube deflection during measurement.
-Simple and double precision measurement
-Works with 180° bent angles
-Option to move tube during measurement
-Cost effective solutions: no more expensive masters needed
-Minimum down time for new tubes in production
- User friendly software interface to measure quickly bent tubes
-Communication with many existing benders
The quick non-contact measurement solution for the inspection of bent tubes in your work shop.
|
|
|
The ZETT MESS AMPG 6-axis articulated measuring arm is a transportable coordinate measuring machine. Its application range extends from quality and production control within production lines, to crash test measurements for measuring points that are not easily accessible and interior space measurements as well as scanning and digitising surfaces in the design area. The AMPG can be optionally fitted with a fixed probe, a touch trigger probe, a laser sensor or a tube measuring fork. Measured values are recorded either at the touch of a button or automatically for transfer to the computer.
|
|
|
With PRO® and PRO® T, Carl Zeiss offers the universal measuring machines for the automotive and supplier industries. They are ideal for the initial batch of parts up to analysis – from the first sheet to the first tool, from the cubing model to a complete car body. The most important features: the very high speeds without a loss of measuring accuracy – due in no small part to the RDS CAA sensor carrier – as well as problem-free adjustment to changed production requirements. Read more here.
|
|
|
Machines PRIMA Bi pin are currently the variation of MONOPIN Range PRIMA spearhead of the range of machine with horizontal arm HEXAGON-METROLOGY and are able to cover a great number of applications in Métrologie medium or Workshop. Of an extremely robust design around a structure out of cast iron and steel having received a specific surface treatment chrome hard, range PRIMA offers a robustness and an unequalled longevity.
|
|
These machines have the following features, in addition to the customary MORA quality elements:
» The machines are completely enclosed including the x-axis guidance system if required
» All machines operate in continuous, 5-axis mode, with the result, for example, that a total of fifteen axes are active for measurements in a coordinate system in the case of an underfloor system
» Travel speeds up to 850 mm/sec
» Guide rails fully hardened and chromium-
plated safety from rust, excellers mounted in special hardened bushes (bearings); smooth and safe running
» Electronic path encoding system (optical or - in case of coarse dust, etc., magnetic)
» Patented cable-breakage safety system
» High-dynamics drive systems with speeds up to 800 mm/sec.
|
|
Mµ-Tos
These machines have the following features, in addition to the customary MORA quality elements:
» The machines are completely enclosed including the x-axis guidance system if required
» All machines operate in continuous, 5-axis mode, with the result, for example, that a total of fifteen axes are active for measurements in a coordinate system in the case of an underfloor system
» Travel speeds up to 850 mm/sec
» Guide rails fully hardened and chromium-
plated safety from rust, excellers mounted in special hardened bushes (bearings); smooth and safe running
» Electronic path encoding system (optical or – in case of coarse dust, etc., magnetic)
» Patented cable-breakage safety system
» High-dynamics drive systems with speeds up to 800 mm/sec.
|
|
The Coordiante measuring machines DIMENSION and DIMENSION-TWIN were especially designed and constructed for use in harsh conditions where fast and percise measuring is paramount. Here only low-friction percision linear guides of the highest quality are used. Air bearings in combination with granit guides can be used when higher accuracy is required. As with all our CMM machines, the motors and guides are sealed. This helps assure protection from dirt, damage, and thermal influences. Highly dynamic, high quality servo-motors provide an exact and vibration-free positioning.
Our manually controlled machines have integrated handwheels, as well as easy to use fixation controls for all axis.
|
|
