With a complete range of Touch Panel PCs, Industrial Panel PCs, and Industrial Flat Panel Monitors, Advantech offers a wide range of HMI products for industrial automation needs. By creating value-added, standard product solutions and by offering customization, Advantech can provide platforms to meet any requirement.
|
|
RAFI produces complete control panels and data entry systems including electronic circuitry and interfaces. We design our systems with special emphasis on reliable data input and convenient operation. A wide range of technological and design options enable RAFI to quickly implement individual solutions. For example, we utilise the following equipment for in-house production:
CAD development tools (3D)
Screen printing machines for the production of overlays
Sheet metal machining equipment for front panels
SMD and conventional assembly of printed circuit boards
Individual assembly and testing facilities
|
|
|
|
|
|
Operator Panel LXT
The product segment “PREMIUM” offers powerful operator panels that are used in almost all production processes. Typical applications are machine visualization on site with networking to a guidance system, or production processes that require convincing user interfaces. Equipped with a keypad or touch screen data entry option, there are more than 35 panels available with display sizes ranging between 3 to 21 inches in two product groups. A selection that offers the right model for almost any application.
LXT Series
The LXT Series product group comes into use when intuitive operation and ergonomic design is requested. From pure installations to food production to even transport equipment, packaging plants or water treatment and offshore applications, these compact panels can do their job anywhere.
With the Information Designer, you can quickly and efficiently create impressive user interfaces for the entire LXT series. Finished masks and graphic objects are integrated into the interface through simple drag and drop. The Designer also creates detailed documentation. This means that accompanying project documents are quickly prepared for the machine description.
For you, PREMIUM means: A multitude of operator panels, equipped with extensive functionalities, as a comprehensive HMI solution for your special visualization tasks.
|
|
|
|
|
|
Operator panel BASIC
Operator panels in the product segment “BASIC” are used wherever essential operator functionalities are required. Customers only pay for the features that they need for their applications. With an ideal price/performance ratio, these products help reduce the costs for machine operation, in serial machines, for example. The graphic operator panels demonstrate their strengths for smaller and medium-sized applications,
such as mobile packers, industrial washing machines and baking ovens, die casting systems, automated soldering machines and other small machines.
LHT Series
The LHT product series includes panel units with keypads and touch screen entry in six different sizes between 3 to 10.4 inch display size. The versatile panels are brought to life with the help of the H-Designer, an intuitively used project planning tool with a broad functional scope. Thanks to flexible help programs that facilitate project creation in just a few minutes, the H-Designer is the perfect tool for simple to intermediate applications.
A large number of communications drivers makes it possible to easily connect up almost any conventional control system. Currently, there are more than 100 different driver protocols for PLC’s, frequency converters and servo controllers available.
|
|
|
|
|
|
PREMIUM
The product segment “PREMIUM” offers powerful operator panels that are used in almost all production processes. Typical applications are machine visualization on site with networking to a guidance system, or production processes that require convincing user interfaces.
Equipped with a keypad or touch screen data entry option, there are more than 35 panels available with display sizes ranging between 3 to 21 inches in two product groups. A selection that offers the right model for almost any application.
WOP-iT Series
The WOP-iT product group has a multitude of powerful user functions. With the help of the client server technology, it is possible to install a simple and flexible network from the PLC to the main frame via the panel without additional hardware. Communication is bidirectional – panel and server PC independently synchronize themselves according to the data entry.
With the WOP-iT Designer, it is possible to handle general project planning via the entire panel family. Users can configure a graphic user interface from comprehensive object libraries rapidly and effortlessly. With the help of numerous additional functions such as comparative arithmetic, Boolean algebra, string processing and user administration, the project planning
expenses are considerably reduced. The easy language setting
feature completes the functional scope.
|
|
Colors for your data
Industrial Operator Panel (HMI) with 7.5" touchscreen color TFT display
64K colors TFT display
VGA (640x480 pixels) resolution
Resistive touchscreen
Connection to industrial bus systems and Ethernet (requires plug-in modules)
32 MB internal Flash memory
32 MB on removable media (option)
SSFDC memory card
IP65 front panel protection
Programmable with "Designer" software tool (option)
|
|
Hardware
QVGA 320x240 pixels, lighted, STN colour graphics LCD display measuring 145 mm (5.7") diagonal, (TFT, enhanced TFT and greyscale displays are optional).
Module with display, CPU board, touch screen and mounting bracket is available for integration into your panel.
Resistive analogue touch screen. Options include PS/2 keyboard / keypad interface
EIA-232, -422 or -485 serial interface. Second EIA-232,-422 or -485 port available.
Ethernet 10/100Base-T Power-over-Ethernet.
TCP/IP, Modbus™ and other protocols. 4 Mbytes of flash and 16 Mbytes RAM. 200 MHz Intel® XScale™ core platform. Speaker and real-time clock.
NEMA4 sealing.
HMI Software
QlarityTM - Object-based programming language makes application design easy for all user levels. Design with pre-defined objects, edit current objects or design new objects for your application. Qlarity Foundry - Windows® programming environment for screen design and integration. Qlarity Foundry is available free of charge.
|
|
Our Lowest-Priced Graphic OIT
When you need an operator interface that displays intuitive graphics, but need to keep cost to a minimum, consider the Blue Series graphic OIT. With a list price lower than most alphanumeric OITs, yet loaded with high-value features, these OITs are designed to meet your size and price needs.
Smaller than a 4 x 6 index card, the Blue Series OIT is made to fit in tight spaces. The membrane style keypad has five user-definable function keys and keys that support screen control and read/write access to PLC data. Each function key can be screen-dependent and allow two operations when used with the Shift key.
The graphics screen supports a resolution of 128 x 64 pixels on a high-contrast LCD. TrueType fonts allow a variety of text sizes, including international characters. With a graphics display, you can create a more intuitive OIT using bar graphs, meters & imported custom bitmaps that aren't available on a text display.
|
|
Beijer Electronics EXTER™ K100, keypad panel with TFT-LCD 10.4" color display
Display: Graphic 64K color TFT-LCD, resistive touch
Presentation form: 10.4", 800 x 600 pxl
Function keys: 22 (10 with integrated LED and text strip)
USB Host, USB Device
Front protection class: IP66 (waterproof even when exposed to high pressure washing).
With EXTER™, you get an operator panel that is ready to impress you. Its high-performance Intel Xscale® processor, robust construction and multiple communication ports make it a futureproof choice for your machines and processes. There are fourteen models to choose from - seven with touchscreen display, six with keypad control and one mobile operator panel. The award-winning, slim design and the powerful performance make EXTER™ an operator panel beyond the ordinary.
|
|
|
|
|
|
Large-character, 20×4, lighted display is readable from four meters (12 feet).
24- or 40-key tactile keypad with high-quality steel snap domes, a shift LED, a power-on LED and a column of user-programmable indicator LEDs (four on the 24-key keypad and five on the 40-key keypad).
Optional lighted keypad for operating in dark environments.
EIA-232, EIA-422, EIA-485, 5-volt Buffered or -422m interfaces supported.
20 Kbytes of user data storage (5 Kbytes with EIA-485 or -422m).
Extremely rugged NEMA-4 enclosure is ideal for industrial environments.
Every key supports two-key rollover and key release strings.
The QTERM-P40 can operate in any of three modes: full-duplex, block or multidrop mode; multidrop mode supports up to 32 terminals per host.
Every key can be programmed with six parameters: unshifted key string, key release string, key repeat flag and shifted key string, key release string and key repeat flag.
48 programmable macro strings allow complete operator menus using simple host commands. Macros can include local commands and display data.
Make the terminal part of your product with a custom key legend and company logo label.
industrially hardened to operate in many environmental conditions and meets NEMA-4 specifications. CE certified.
Optional emergency-stop switch (E-stop) with large mushroom head.
|
|
Text Displays with Customizable Keys
The MicroOIT Series have alphanumeric displays with membrane-style keys. Each key is programmable, allowing users to define a unique keypad to match their particular application. The legendable insert feature means users don't have to pay extra for custom overlays to get a custom look.
A wide range of communications drivers are available: from Allen-Bradley, Modicon, and GE Fanuc to Keyence, Contro Microsystems & Bristol Babcock - over 74 families of PLCs and motion controllers in all.
The configuration software includes recipes, menus, alarms & the ability to create over 500 screens. Designed for harsh industrial environments, these OITs carry a Class I, Div 2 rating & operate under a wide temperature range.
|
|
SIGMATEK offers a wide range of text and graphic terminals for automation.
The selection of HMIs ranges from non-intelligent control terminals to panel PCs with integrated CPUs; from two-line text terminals to high resolution TFT color displays with up to 19”. The optimal and most economic solution is available for any task.
During development particular attention was given to creating a compact design with comfortable control features. An emphasis was also placed on dependability and optimal connectivity to the system.
For fast, flexible and dependable communication with the control or other components, numerous interface connections are available ranging from DIAS over VARAN to Ethernet and CAN. Customer specific front labels and button layouts allow individual configuration of the terminal.
|
|
Bernstein’s MBDT-L family of hand-held operator control units provides the right solution approach for any application.
Each control unit comes pre-configured and is immediately operational. The operator no longer needs to conduct extensive configuration. The integrated backlit LED displays are available in two resolution types (4 x 20 and 16 x 40 digits). A serial interface (RS-232, RS-422/RS-485) or bus system (CAN, Profibus) provides the necessary access for control communication. The units can communicate in a range of protocols making the dialog terminals compatible with a broad range of control systems from various manufacturers.
As with all Bernstein hand-held control units, the MBDT-L family stands out with a modern, ergonomically designed housing and high degree of protection. The comprehensive assortment of operator control elements and option, such as emergency STOP buttons, electronic dials or dead man switch, leave absolutely nothing to desire.
|
|
Allen-Bradley graphic terminals from Rockwell Automation offer rugged electronic interface solutions in a variety of sizes and configurations. These robust devices are fully packaged (hardware, software, and communications) and tested for HMI (human machine interface) operation. Simply download your configured application file, set appropriate communication parameters, and connect the communication cable.
PanelView Plus CE terminals are optimized for machine level interface, providing tight integration with the control system. They replace traditional wired panels as the input and output mechanism for operator interaction machines. Choose from a stand-alone single system to a multi-layer, enterprise-wide solution. These terminals are capable of providing process information over a variety of communication protocols including DeviceNet, ControlNet, EtherNet/IP, DH+, DH-485, Remote I/O, DF1, and other third party vendor networks.
|
|
Beijer Electronics H-series H-T70t, touchscreen panel with TFT-color 7" colour widescreen display
Display: Graphic 64K color TFT-LCD, resistive touch
Presentation form: 7" (diagonal), 800 x 480 pxl
Keypad: 1 Meny key and 6 user-defined function keys
2 USB Hosts, 1 USB Device and a built in CF-card slot
The H-series offers valuable HMI functionality at an affordable level. The series include keypad and touch screen interfaces and is available in seven different sizes from 3 to 10.4 inches. Offering three levels of functionality – Standard, Plus and Network – the H-series enables you to select and pay for what level of HMI technology you need.
|
|
|
Industrial RS232/RS422 character based terminals with alpha/numeric keypad input. Very low cost ( priced as low as $205) and very dependable. Many different models to choose from !!
|
|
Beijer Electronics H-series H-T60b, touchscreen panels with mono/color STN LCD 5.7” display
Display: Mono STN LCD
Presentation form: 5.7” (diagonal), 320 x 240 pxl
Keypad: 1 Meny key and 5 user-defined function keys
The H-series offers valuable HMI functionality at an affordable level. The series include keypad and touch screen interfaces and is available in seven different sizes from 3 to 10.4 inches. Offering three levels of functionality – Standard, Plus and Network – the H-series enables you to select and pay for what level of HMI technology you need.
|
|
|
|
|
|
Hardware
VGA 640x480 pixels, lighted, TFT colour graphics LCD display 10.4". (An enhanced TFT display is available as an option).
Resistive touch screen.
Optional PS/2 keyboard / keypad interface.
Ethernet options available. Supports TCP/IP, ModbusTM and other protocols.
4 Mbytes of flash memory and 16 Mbytes RAM.
EIA-232, -422 or -485 serial interface. Additional serial ports available.
RISC 92 MHz MIPS R3000 processor.
The terminal is industrially hardened to operate in rugged environments and meets NEMA-4 specifications for washing, ice and salt spray.
Modular form factor also available.
Software/Firmware·
QlarityTM - Object-based programming language makes application design easy for non-programmers whilst also having the capability of highly complex applications.
Design with pre-defined objects, edit current objects or design new objects for your application
Windows® programming environment - Qlarity Foundry is available for free.
Support for select partner hardware (distributed/remote I/O, motion control).
Keys around the display can be customised and your logo can be added to the legend. Custom hardware, firmware and software options are also available.
Contact us for a free trial demonstration terminal.
|
|
|
|
|
|
NEW RED LION G306A OPERATOR INTERFACE PANEL FEATURES ADVANCED TFT DISPLAY FOR CRISP IMAGES, EXCELLENT READABILITY
The 5.7" 256 color QVGA 320x240 pixel LCD display also offers three front-panel LED indicators, and a five-button keypad for on-screen menus. In addition, as with all G3 panels, the G306A arrives standard with an Ethernet port, USB programming port, support for up to five high-speed serial ports, integrated protocol converter, built-in web server, standard CompactFlash socket and IT-ready data logging.
The G306A is both robust and simple to operate. Users can easily enter data on the G306A through the resistive analog touchscreen or front panel keypad. Plus, this model comes with an increased onboard flash memory of 8 MB, and it can be configured using Red Lion’s free Crimson Programming Software. With these exceptional features, the G306A is ideal for collecting and displaying data or interfacing with a variety of devices, including PLCs, PCs, drives, PID controllers and others, all while offering exceptional visual properties.
The Red Lion G3 series offers the most powerful communications platform available today, providing a cost-effective solution for protocol conversion, remote system control and monitoring, as well as historical data logging. By utilizing innovative technology to display sharp, high-quality images and easy-to-read data, the G306A delivers a superior HMI solution.
- Configured using Crimson 2.0 Software (FREE)
- Up to 5 RS-232/422/485 Serial ports
- 10 Base T/100 Base-TX Ethernet Port
- Remote Web Access and Control Facility
- UL Listed for use in Hazardous Locations
- IP66
|
|
Beijer Electronics EXTER T70, touchscreen panel with TFT-LCD 6.5” color display
Display: Graphic 64K color TFT-LCD, resistive touch
Presentation form: 6.5”, 640 x 480 pxl
USB Host, USB Device and built in CF-card slot
Front protection class: IP66 (waterproof even when exposed to high pressure washing).
With EXTER™, you get an operator panel that is ready to impress you. Its high-performance Intel Xscale® processor, robust construction and multiple communication ports make it a futureproof choice for your machines and processes. There are fourteen models to choose from - seven with touchscreen display, six with keypad control and one mobile operator panel. The award-winning, slim design and the powerful performance make EXTER™ an operator panel beyond the ordinary.
|
|
|

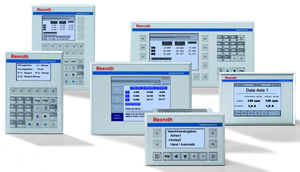

To meet the wide variety of requirements in the industry, Rexroth offers two different technologies in their industrial PC equipment. The standard industrial PC is for normal industrial requirements (IndraControl VS), and the high-end PC is for the highest industrial requirements in the areas of shock, vibration, serviceability, etc. (IndraControl VP).
|
|
|
|
|
|
Operator terminals
TERMEX is an intrinsically safe operator panel family for hazardous areas
The text terminals TERMEX 220 and TERMEX 320 with a monochrome display (4 lines, each with 20 characters) are used for operator guidance, the presentation of measured values and message displays on systems of low complexity.
The monochrome graphics terminals TERMEX 230 and TERMEX 330 are used on systems with increased requirements in terms of presentation and operation. The graphics terminals have a single resolution of 240 x 128 pixels (maximum 14 lines, each with 40 characters) and permit a more ergonomic presentation of the operating pages by means of different font sizes and embedded graphics.
The intrinsically safe TERMEX terminals are connected to the respective PLC via the power supply unit in the safe area. Various interfaces are available for the transfer of data from and to the PLC.
The TERMEX terminals are available with ATEX approvals for Zones 1 and 2 (to category II 2 G) and Zone 22 (to category II 3 D).
TERMEX has also an FM-approval for the use in North America. The approval is in accordance with IS CL I, DIV 1, GP A, B, C, D.
|
|
|
|
|
|
The POLARIS Panel PC 19.1" is based on a fast Intel® Pentium® M processor and is equipped with all conventional interfaces. By means of the WLAN technology, individual computers or network devices such as printers or DSL access points can be wirelessly connected to an existing local network (LAN) or local networks can be set up completely wirelessly. This facilitates a high-performance visualization and operation of the processes directly on site. The wired electrical connections are realized via a terminal compartment of the “e” type of protection (increased safety).
The state-of-the-art display technology guarantees an optimum contrast, even with large viewing angle. The front panel fitting assures easy of installation. Upon request, the devices are also available as turn-key system solutions in a stainless steel enclosure as wall, floor or ceiling mounting versions. An intrinsically safe USB interface for a USB Ex i-memory stick enables the device configuration’s easy transferability. An intrinsically safe keyboard as well as a mouse, a trackball and a touchpad are available as front panel fitting. Optionally, a touch screen (intrinsically safe), assuring an absolutely maximum operator convenience, is available.
As a standard, Windows® XP Professional is preinstalled on the Panel PCs, supporting the installation of numerous software packages such as customer-specific software or other conventional standard visualization software. Of course, the operator can also employ the BARTEC “BMS Graf pro” software package. The PROFIBUS-DP interface can be used only with software package “BMS Graf pro“.
|
|
5000 Series Integrated - Keypad/Display Units
Integrated keypad and display hardware for harsh industrial or exposed public environments
- Vandal and impact resistant
- Weather, water and dust resistant
- Available with metal keys, polymer keys or Storm GFX keys
- Can be supplied with a back-lit 4 line by 20 character LCD, or non-loaded, ready to accept a customer specified display
|
|
Description of the pictured operator panel GEL 8819 LogiPanel:
The LogiPanel GEL 8819 is a control panel with integrated PLC and CANopen interface for decentralized system extension. It permits solving the following tasks.
* Automation of individual units and very small machines
* Flexible acquisition and output of data including data pre-processing, e.g. with scanning stations in the production process
* Operating and monitoring device for the LogiDrive LD 2000 servo converter
* CANopen terminal
|
|
UFT500 – unipo® flat terminal
1:1 replacement for complete operation panels - UFT500
In addition to the established UFP replacement TFT monitor in industrial quality, our UFT500 contains a high quality key panel with freely programmable key codes and so represents the matching 1:1 replacement for your control panels!
Variable labels and easy configuration make UFT500 by unipo® the most flexible solution for all terminal replacement cases.
|
|
Terminals are predominantly used for smaller machines or for control and display panels that have minimal requirements on graphic abilities. They are just as suitable as industrial PCs for use as support computers for control systems.
Terminals are available as built-in devices. Housings are also available for use with free-standing applications.
|
|
|
|
|
|
HMI: MFD4 - multi-function display for universal use
The multi-function display MFD4-5-XRC-30 is a new module in the Moeller automation system.
The device from the easyHMI series offers a full graphic 5.7 inch TFT display with 32.000 colours, resistive-touch technology as well as a host of communication features on board.
Based on the integrated PLC functionality it is possible to use the MFD4 both as a HMI and as a HMI control. It provides the ideal platform for control and visualisation for small to medium sized automation applications.
The engineering philosophy using just a single software package has been strictly adhered to and continued with the MFD4. Both the visualisation and the control use the easySoft CoDeSys. This saves time and expense with engineering, communication and documentation.
Further product features
Several communication options already on board
Ethernet 10/100 interface, combined CANopen/easyNet interface, as well as RS232 interface are on board as standard on the MFD4.
Accordingly, there are no additional costs involved for example, when providing world-wide access to you application via a web browser. Cost-intensive service calls on site will be eliminated in many cases
MMC enables universal use
The entire project, recipe data, trends and alarm data and the operating system can be stored optionally on a multimedia memory card. Thus, in world-wide use data can be exchanged or updated quickly, easily and reliably without a programming device.
|
|
Operator Terminal OT115 series
* Display: 4.2"-STN bluemode display with 240 x 64 pixels
* Processor: 72 MHz 32 bit
* Operating memory: 64 kB internal
* Operating system: VxWorks®
* Interfaces: RS232/422
* Projecting: M-JVIS Designer
|
|
|
|
|
|

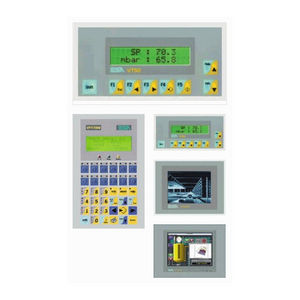

Operating and displaying with b maXX HMI
14 operating and display devices are available to the user in the b maXX HMI and b maXX IPC product ranges, from text-oriented control terminals to TFT touch panels.
The b maXX HMI range has been specially designed for special automation requirements. The range covers control and display equipment requirements from the b maXX HMI 10 text-oriented terminal to Touch TFTs such as the b maXX HMI 155T. Baumüller operating and display tools allow the machine to be adapted to any production process.
User orientation and operator convenience are characteristic of Baumüller operating and display products. All terminals in the HMI series are programmed using the same programming tool.
The compact design of the b maXX HMI provides the user with a comprehensive range of functions in a small space.
The b maXX HMI range includes a comprehensive array of operating terminals. The terminal versions range from the text-oriented b maXX HMI 10 and 20 to the b maXX HMI 30 and b maXX HMI 35K graphics/text terminals, the graphics terminals b maXX HMI 65K to 105K and the touch displays, b maXX HMI 45T to 155T.
The web functionality of the b maXX HMI product range makes it possible for machines to have remote diagnosis and remote maintenance via a LAN/WAN connection.
|
|
|
|
