LO2.0M Series, economy truck, with fixed platform
LO2.0 Series, with fixed platform and independent fork lift
LO2.0L Series, with rising platform and independent fork lift
Our range of order pickers is one of the most efficient and cost effective solutions for the fast supply of customer orders, currently available on the market. It also performs well in horizontal transport activities such as cross-docking and load shuttling.
The key to order picking is comfort and ease of operation. You will find a comfortable work platform and easy to operate tiller head with finger tip controls, combined with easy on/off access. The range includes models for ground level picking or frequent second level picking requirements, or with independent fork lift. All trucks have a 4kW AC motor to drive maximum productivity over a full shift of picking.
|
|
|
JLG’s range of stock pickers is designed to help you boost productivity and improve worker safety by virtually eliminating the need for steps or ladders. No more climbing, stretching or straining required. With two models – model 10 MSP and 15 MSP – your entire workforce can reach higher, carry more weight and work faster and more efficiently than ever before.
|
|
Confidence taken to new new heights
Imagine working on the ledge of a three-story building, every day. It’s easy to see how confidence affects operator productivity as well as order picking performance, safety and overall efficiency. Crown supplies a full range of mid/high-level order pickers from the smallest model LP 3010 with an operator reach height of 3 meters, to the SP 3521 with an operator reach height of 11.3 meters. Every model builds confidence with features that work with the operator, both on the ground and at the highest elevations.
|
|
Multi-purpose at multi-levels
Consider the time it takes an individual to transport, put away or retrieve multiple loads of products using manual equipment such as ladders and handcarts. The Wave Work Assist Vehicle can virtually cut that time - and your labor cost - in half. The Wave is a revolutionary, mobile productivity tool that eliminates the risks associated with climbing ladders and improves load handling ergonomics to reduce back and other injuries. There is no safer, faster or more cost-effective way to help your workers transport, lift or move products, tools, equipment or supplies than with the Wave.
|
|
MO10, MO10S
Capacity: 600, 1000kg
- Medium/high level order picker
- Picking height up to 9500mm standard
- Drive side mounted controls
- Fly by wire steering
- Full AC MOSFET control
- Proportional hydraulic control
- Automatic release braking
- Supplementary lift
- Panorama mast
- Regenerative braking on lowering of cabin
- Guidance options - rail/wire
|
|
100% Efficiency for every picking task
No other material handling process is more dependant on the operator than order picking. Process studies show the time spent off the truck can be as high as 90% of the picking cycle. The new GPC 3000 Series of low-level order pickers was designed around the entire picking process with superior driving performance, fatigue-reducing comfort, and a significant number of features which reduce and simplify the operator's movement when performing tasks both on and off the truck. The result is enhanced productivity, safety and durability through Crown's innovative design, advanced technology and robust construction.

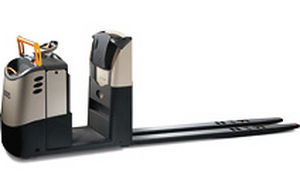

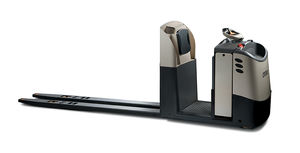

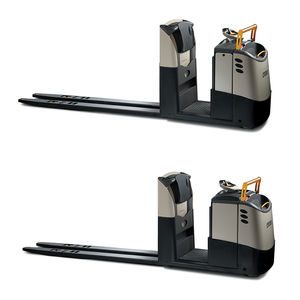

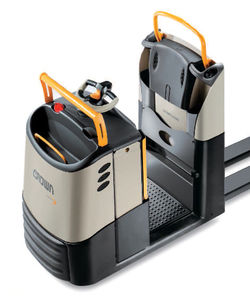

Crown's GPC 3000 Series also features models with lifting forks and scissors-lift forks for an ergonomic advantage in high-throughput applications.
|
|

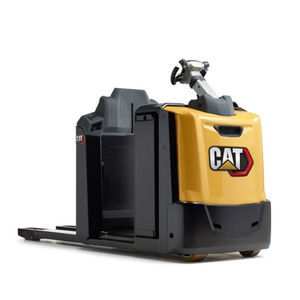

Cat Lift Trucks' order pickers are the best. Why? Because there%u2019s a picker for every single warehouse application, and because each order picker is designed with operator comfort in mind.
The more comfortable the operator, the more ergonomic the controls, then the quicker the picking and the more achieved per shift. In addition, several functions can be pre-programmed, for example to limit top speed, if safety requires it; or to limit fork-lowering speed when handling fragile goods.
|
|
MO20S
Capacity: 2000kg
- Combi MOSFET Dualtech electronic control
- Rising platform options 960/ 1200/ 1500mm high
- 480-560 Ah battery capacity
- Brushless servo-steering
- 4 preset performance settings to suit driver preferences
- Regenerative braking
- Yale AC technology
|
|
Apart from optimizing the warehouse layout to match the frequency of access to various goods, the next best thing for saving time and money is your choice of order picker. Order pickers are the busy bees of the warehouse.
Some 80% of orders involve just 20% of stock lines, and stacking and picking at low levels is a cheaper option than at higher levels. Getting the right warehouse layout and the right order pickers are crucial to your Return On Investment.
|
|
ErgoPicker OPS
High level picker with extra high-performance
For picking up to 9.5 metres with very great stability.
The truck can be driven anywhere in the warehouse and in rail-guided aisles. Independent fork lift for load carrier gives extremely ergonomic picking.
|
|
CAPACITY: 1.5t
ORDERPICKER
Heavy-duty Class "H" insulated, SepEx™ motor is high-starting torque type, ball bearing armature shaft mounting.
24 volt industrial-type lead acid battery.
Disc brake is mounted directly on motor shaft greatly multiplying brake power through the double reduction transmission.
Interlocking I-beam type mast with heavy-duty ball bearing rollers.
Heavy-duty Class "H" insulated, series-wound motor with gear pump mounted inside hydraulic reservoir.
Control logics use Curtis 1243 SepEx™ traction control and directly control the lift system as well as providing for 180º electronic power steering.
|
|
- Low Level Order Picker - 1.0 ton Capacity
- Low Level Order Picker - 1.0 ~ 2.0 ton Capacity
- Low Level Order Picker with Tiller Arm - 2.0 ton Capacity
|
|

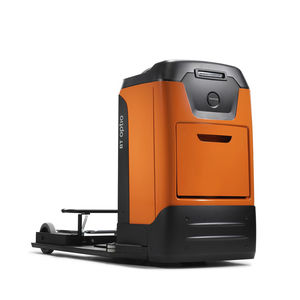

The BT Opus OSE180X low-level order picker is perfectly suited for intense order picking in tough industrial environments. Safe and easy to drive, these trucks offer a compact, ergonomic design that maximises productivity by helping operators to work quickly, comfortably and safely.
Opus OSE180X is also available with platform lift for picking from second level, Opus OSE180XP. This model offers a solution which optimises the total picking cycle. Both efficiency and manoeuvrability increases since the driver has the E-man handle always within close reach. Maximum platform height is 980 mm.
With a capacity of 1800 kg and fork length up to 2850mm, these trucks can handle 2 euro pallets or four roll cages.
Opus range trucks also features BT Powerdrive, for high driving performance with smooth, effortless control. BT Powerdrive is a fully integrated drive system that has been created through the combination of several advanced design elements.
|
|
|
|
|
|
The Jungheinrich ECE 225 gives time and cost savings during order picking by combining excellent performance with a multitude of ergonomic advantages.
Its excellent technical capability is underpinned by a 24 V drive motor in 3-phase AC technology. The advantages: powerful acceleration and high top speed; at the same time significant energy saving, extended operating time and low maintenance (no
carbon brushes). This is realised through an intelligent set up between the drive motor and the electronic drive controller which are both manufactured by our group.
In addition the ergonomic advantages between the operator, truck and load are as follows: The close proximity of operator to the load is crucial for safe and highly productive order picking. The optionally available raising stand-on platform makes order picking easy from the second racking level.
The ECE provides a choice between two different electric steering systems: Tiller steering or JetPilot steering wheel. The advantages
of electric tiller steering: effortless steering with only approx. 60° tiller lock for 90° steering lock. Operator and tiller always remain safely within the truck contours. The advantages of the JetPilot steering wheel: excellent travel comfort due to similar operation
as a motor car. No turning of the body in corners (thus reducing pressure on neck and spine) and one-handed operation and automatic return of the steering wheel to straight line travel.
|
|
|
|
|
|
Effective order picking is the primary concern of distribution businesses today. BT understands this, and has developed a unique range of low-level order picking trucks that truly meet the requirements of different applications, as well as totally supporting the needs of today’s and tomorrow’s operators.
The Opus range of advanced low-level order pickers is designed for intensive picking in demanding environments. All Opus models are built around BT Powerdrive – the advanced integrated drive and control system that delivers excellent ease-of-use, performance, and efficiency. For lighter picking applications, BT offers the versatile Ergomover range. Modular design provides enormous flexibility. A single drive unit sits at the heart of a range of different truck and trolley combinations.
The ability to pick individual items at height opens up the whole of a warehouse to more than just full pallet storage. But working at height demands high safety standards. BT’s Optipace system is at the heart of the medium and high level order picking range – ensuring safety without compromising speed of operation. BT provides solutions for higher-level order picking applications with its Opal and OP truck series. All BT medium and high-level order picking trucks feature the BT Optipace system, which electronically optimises speed, acceleration, and braking according to the height of the truck. This means that acceleration rates and travel speeds are as maximised when working at height.
|
|
Low-level order pickers are a flexible and productive way to pick a wide range of first level, second level and cross docking orders. Thanks to their advanced modular construction, speed, load capacity, battery performance and picking ergonomics can all be optimised to excel in your business.
|
|
Order Picker - 7BPUE15
3,000 lbs. Lifting Capacity
With the ever-increasing market need for a comfortable, efficient and economical way to pick cases up to 25 feet, Toyota expands its Order Picker line-up with the 7BPUE15 model. Separately Excited (SepEx®) drive motor and transistor control technology combined with an ergonomic design deliver a cost-effective solution for the customer's Order Picking needs.
Order Picker - 6BPU15
3,000 lbs. Lifting Capacity
Toyota 6-Series electric 3,000 lb. capacity order picker will revolutionize the way materials are handled. From the versatility of the latest electronic control technology to the comfort and convenience of an ergonomically designed operator compartment, Toyota's 6-Series order picker represents dramatic approach to order picker performance and quality.
|
|
|
|
|
|
Solutions to the efficient Kommissionieren

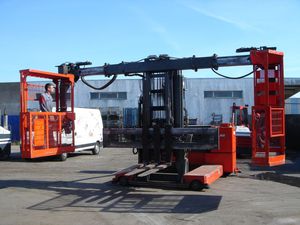

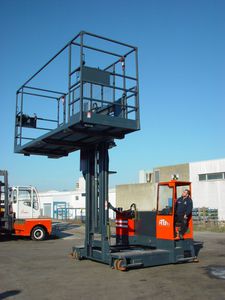

The specialmanufactured HUBTEX side stacker, floors conveyance and special devices is used for the efficient flow of material and movement of goods. Particularly for heavy and bulky goods and with closest course conditions production and trading ventures estimate the HUBTEX vehicles, which can be co-ordinated exactly with the conditions and requirements of a camp. During the commissioning in Laegern and production HUBTEX Flurfoerderfahrzeuge must fulfill most different requirements: Large volume timber materials, disk commodity and profiles from aluminum, steel, plastic u.v.m. are to be transported most rationally and carefully. The industry know-how of HUBTEX makes it possible again and again to develop customer-exact solutions with special optimization effects. Innovation and quality are for HUBTEX the keys to success. The high claim of quality reflects itself also in the proven equipment standards of the Kommissionier vehicles. The advantages of the HUBTEX Kommissioniersysteme: Increase of the productivity up to 50 % damage reduction of the commodity up to 40 % increase of the industrial safety
|
|
High level order pickers
- Two and three stage masts with Freelift covering lift heights from 3200mm to 8250mm
- Battery change equipment
- Cold store protection
- Adjustable forks
- Horizontal and vertical guide rollers
- Wire guidance
|
|
High Level Order Picker - 0.8 ~ 1.0 ton Capacity
- NOH08K 800 (kg)
- NOH10K 1000 (kg)
- NOH10KC 1000 (kg)
- NOH10KH 1000 (kg)
|
|
|
|
|
|

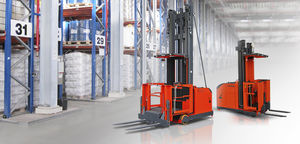

The order picker of the range EKS 310 with 48 V 3-phase AC technology, 1000 kg capacity and order picking heights up to 10,390 mm present top performance in the high-rack warehouse. The EKS 310 is designed for picking single articles from the racking. The facility to ergonomically optimise order picking from a walk-on load section or via an additional lift increases both flexibility and economic efficiency. The EKS 310k is specifically designed for the medium performance segment. Its compactness provides maximum manoeuvrability. This high efficiency is available to the operator for effortless operation: The clearly arranged cab provides a generously dimensioned workplace. Large depositing areas, clear contours and the choice of various operating directions make work significantly more pleasant and consequently faster. At the centre of the effective operating concept is the two-piece operating console and the large display. With a number of innovative performance characteristics, they define technologically advanced system ergonomics:
- Operating arrangement in the drive direction, the load direction, both or diagonal.
- Information transmission via graphic display. Important operating data is quickly and legibly displayed in pictograms.
- Individually adjustable steering characteristics and degree of steering lock.
- Travel control via thumb movement on multi-function lever for safe hold during acceleration and braking.
- Two-handed operating concept for first class safety and operating comfort. Switch-free sensors register the operator’s touch and pass this information to the onboard computer where all safetyrelevant checks are carried out.
|
|
|
|
|
|
OM XOP2ac e XOP3ac vertical order pickers are compact, powerful vehicles and are capable of picking up h28=10480
Available in two versions: ¦ Available in two versions: n with fixed forks, without additional lift additional:
¦ with lifting forks with additional lift:
Specifications: ¦ Overall chassis width: 880 - 980 - 880 - 980 - 1080 mm ¦ Operator platform: width 900 - 1000 - 1100 - 1200 - 1300 - 1400 mm ¦ Operator platform height: up to 8880 mm.
Driver’s cabin: The ergonomics of the driver’s cabin guarantee excellent performance. The suspension of the driver’s cabin and the floor of the cabin absorb bumps and rocking which may occur while being driven, or during lifting or lowering. An ample padded backrest offers a relaxing driving position. The low position of the rise and the protection bars on three sides increase the level of safety. A control panel with generously dimensioned controls means fast and safe operation. The control panel can either be used on the column side or on the side of the load. This gives the operator excellent visibility over the picking area or over the driving direction. The control panel has an integrated display which informs the driver of all the funcions of the truck. By means of keys it is possible to see and select hours worked, heights, wheel position, battery level, as well as other information for the operators and other workers.
|
|
|
How wide? How long? How high? How strong? Order a combination forklift made to meet your needs. With Linde’s modular design, your vehicle is not just picked off our shelves, it is fitted to your own shelves. You can choose from among two drive capacities and two lift capacities, each with impressive torque and excellent efficiency. Using the “Man-Up Principle” for the cab, the driver always rides along, keeping the load and the shelf within optimum range of vision. The driver’s cab is designed from an ergonomic perspective and offers the perfect overview. The combination order pickers and turret trucks from Linde are best suited for laoding, unloading, and reloading entire loading units. Mechanical or inductive line guidance allows you to drive through narrow shelf rows quickly and safely.
|
|
OPB Series
Low Level Order Pickers |
1.0 - 2.0 tonnes
Our versatile low level order pickers allow rapid preparation of orders at first and second pick heights. With comfortable driver compartments, user-friendly controls and efficient fly-by-wire steering, you have everything you need to maximise throughput.
OPBM/H Series
Medium and High Level Order Pickers |
0.8 - 1.0 tonnes
To reach high into your warehouse for preparation of orders, you%u2019ll need one of our high level order pickers. Their advanced technology, driver-friendly controls, high standards of comfort and impressive performance mean increased productivity and happy customers.
|
|

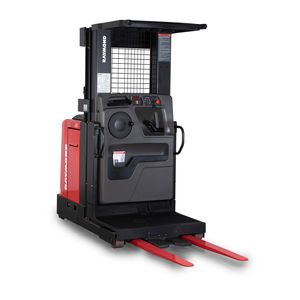

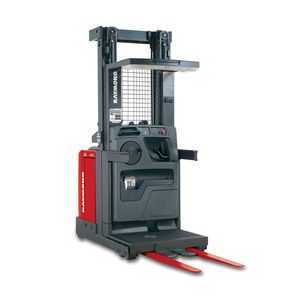

These new trucks feature our exclusive ACR System™. You'll get faster, smoother operation, increased travel, lift speeds, and easier load handling
Get the ultimate in order picking productivity.
Raymond's AC powered trucks offer faster travel and lift speeds
Advanced intellispeed™ system smoothly coordinates travel speed and load height
Contoured handle naturally fits the hand abd provides a sure grip during travel
Special auto-locking pallet clamp designed to work on a wide range of pallets-1 ¼" to 5"
|
|
|
|
|
|
|

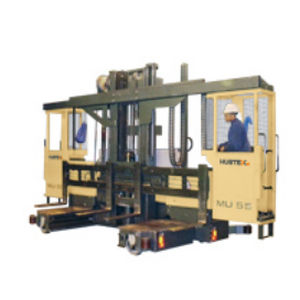

Solutions to the efficient Kommissionieren The specialmanufactured HUBTEX side stacker, floors conveyance and special devices is used for the efficient flow of material and movement of goods. Particularly for heavy and bulky goods and with closest course conditions production and trading ventures estimate the HUBTEX vehicles, which can be co-ordinated exactly with the conditions and requirements of a camp. During the commissioning in Laegern and production HUBTEX Flurfoerderfahrzeuge must fulfill most different requirements: Large volume timber materials, disk commodity and profiles from aluminum, steel, plastic u.v.m. are to be transported most rationally and carefully. The industry know-how of HUBTEX makes it possible again and again to develop customer-exact solutions with special optimization effects. Innovation and quality are for HUBTEX the keys to success. The high claim of quality reflects itself also in the proven equipment standards of the Kommissionier vehicles. The advantages of the HUBTEX Kommissioniersysteme: Increase of the productivity up to 50 % damage reduction of the commodity up to 40 % increase of the industrial safety
|
|
