MOTOR SERIES - MTR7a/ D7a
REVERSIBLE SYNCHRONOUS MOTOR - 250 RPM
Application - Reversible power drive for actuators, pumps, label printing
machines, medical and optical equipment, office machines, automatic vending machines, machine automation
Design - The MTR7a/ D7a reversing synchronous motor with parmanent magnet rotor is electrically reversible and due to its unique stator design it is moderately priced. The rotating field is produced with a phase-shift
capacitor and double-stator with coils thus ensuring extremely quiet
running. Long life is guaranteed by the robust design (sintered bronze
bearings; self-centering type). The MTR7a/ D7a is operated with singlephase AC current. The same motor version can be used at 50Hz and 60Hz.
|
|
MOTOR SERIES - MT6
UNIDIRECTIONAL SYNCHRONOUS MOTORS - 600 RPM
Application - Instrumentastion, diamond machinery, peristaltic pumps,motorised displays, programming devices, cam timers, medical equipment.
Design - MT6 is a unidirectional synchronous motor. The direction of the motor is either cw or ccw which is fixed with help of reversing stopper while manufacturing. This non reversing device also guarantees at all times starting in the desired direction with high starting torque. The motor consists of a cylindrical sheet iron stator which form the poles. Mounted on the hardened and
highly polished rotor shaft is a high coercitivity sintered magnet ring around whose circumference 10 poles of alternate polarity are disposed, Special version of motor without the non reversing device is also available. In this case the motor can start in any direction. Motor can be priovided with screw
clip for fixing.
|
|
MOTOR SERIES - MTR3a/3b
Reversible Synchronous Motor - 250/ 500 RPM
Application - Recorders, Instrumentation, Diamond machinery, Valve Actuators, Light displays, Textile machinery, Medical equipment, Air conditioning & refrigeration, Dampers, Peristaltic Pumps, Dosing Pumps, Vending machines CCTV Camera positioning, any timing and positioning Application.
Design -
MTR3a/ 3b reversing synchronous motor is of the permanent magnet type with two
stator windings, for single phase AC 50/60 Hz. Phase displacement of the
excitation current is achieved by connecting a capacitor in series with one of the stator windings. The sense of rotation is determined by the resulting
circular rotating field. Electrial reversal of the sense of rotation is effected by means of a single-pole changeover switch. The 24/ 12 pole rotor which has a steel shaft polished to a mirror-finish rotates in sintered bronze bearings. Motor can be provided with mounting plate / screw clip for fixing.
|
|
MOTOR SERIES - MTR9a/ 9b/ 9c/ 9d
REVERSIBLE SYNCHRONOUS MOTOR - 1000 RPM
Application - Reversible power drive for special purpose m/cs, actuators, pumps, label printing machines, medical and optical equipment, vending machines etc.
Design - The MTR9a/9b/9c/9d reversing synchronous motor with parmanent magnet rotor
The rotating field is produced with a phase-shift capacitor and doublestator
with coils thus ensuring extremely quiet running and smooth operation. Long life is ensured by the ball bearings. Compared to normal parmanent magnet synchronous motor that operates on tin can principle, these motors are more
efficient. At same time the temperature rise is significantly higher
in this motor. MTR9a/9b/9c/9d is operated with single-phase AC current. The same motor version can be used at 50Hz and 60Hz.
|
|
MOTOR SERIES - MTR8c
REVERSIBLE SYNCHRONOUS MOTOR - 375 RPM
Application - Reversible power drive for actuators, pumps, label printing
machines, medical and optical equipment, office machines, automatic vending machines, machine automation.
Design - The MTR8c reversing synchronous motor with permanent magnet rotor
is electrically reversible and due to its unique stator design it is
moderately priced. The rotating field is produced with a phase-shift capacitor and double-stator with coils thus ensuring extremely quiet running. Long life is guaranteed by the robust design (sintered bronze bearings; self-centering type). The MTR8c is operated with single- phase AC current. The same motor version can be used at 50Hz and 60Hz Various windings of motor are available that are tailored to specific requirements. Only some types are listed.
|
|
|
PTM series synchronous motors range in diameter from 25mm to 55mm, and are low speed permanent magnet motors ideal for timing applications. The single direction (shaded pole design) and reverse direction (phase-shift by capacitor) motors allow automatic self-starting and dynamic braking. With internal impedance protection, the shaft can be stalled continuously without the danger of burning the coils. A variety of plastic and metal gear heads on all models of PTM series synchronous motors are available to meet the requirements of most applications.
|
|
MOTOR SERIES - MTR4a/ 4b/ D4b
REVERSIBLE SYNCHRONOUS MOTOR - 250/ 500 RPM
Application - Valve Actuators, Light displays, Textile machinery, Medical equipment, Air conditioning & refrigeration, Dampers peristaltic Pumps , Dosing pumps, Vending machines, CCTV Camera positioning, any positioning Application.
Design - MTR4a/ 4b/ D4b reversing synchronous motor is of the permanent magnet type with
two stator windings, for single phase AC 50/60 Hz. Phase displacement of
the excitation current is achieved by connecting a capacitor in series with
one of the stator windings. The sense of rotation is determined by the
resulting circular rotating field. Electical reversal of the sense of
rotation is effected by means of a single-pole changeover switch. The 24 /12 pole rotor which has a steel shaft polished to a mirror-finish rotates in sintered bronze bearings. Motor can be provided with Mounting plate/ Screw clip for fixing.
|
|
MOTOR SERIES - MTR5
REVERSIBLE SYNCHRONOUS MOTOR - 500 RPM
Application - Recorders, Instrumentation, Diamond machinery, Valve Actuators, Light displays, Textile machinery, Medical equipment, Air conditioning &
refrigeration, Dampers, Peristaltic Pumps, Dosing Pumps, Vending machines CCTV Camera positioning, any timing and positioning Application.
Design - MTR5 reversing synchronous motor is of the permanent magnet type with
two stator windings, for single phase AC 50/60 Hz. Phase displacement of
the excitation current is achieved by connecting a capacitor in series with
one of the stator windings. The sense of rotation is determined by the
resulting circular rotating field. Electical reversal of the sense of rotation is effected by means of a single-pole changeover switch. The 12 pole rotor which has a steel shaft polished to a mirror-finish rotates in sintered bronze bearings. Motor can be provided with Mounting plate/Screw clip for fixing.
|
|
|
|
|
|
DYNEO, by LEROY-SOMER, is a group of solutions consisting of synchronous permanent magnet motors and electronic variable speed inverters. These solutions reach the highest peaks of energy efficiency. With exceptional efficiency levels over the entire speed range, DYNEO solutions generate huge energy savings. Their unequalled compactness enables easy integration into machines and processes.
Amongst the DYNEO solutions is the LSRPM, a range of synchronous permanent magnet motors, with an aluminium housing, in a mechanically proven IP 55 induction motor design in accordance with IEC 60034. The range covers powers from 0.75 to 400 kW and speeds from 1 to 5500 RPM and for frame sizes from 90 to 315 mm.
This LEROY-SOMER innovation in variable speed drive systems offers great advantages to the customer: gaining in compactness up to 3 frame sizes, exceptional gain in efficiency over the entire speed range, constant torque over the entire speed range and optimised power with centrifugal torque applications.
|
|
ROTEK Synchronous motors -- premium quality materials and finishing
Long-lasting - extremely efficient
First-class materials and precision finishing - the SM65 motor range gives you convincing, in-depth quality and long life.
A special permanent magnet rotor ensures maximum efficiency: a combination of excellent technical characteristics, lower power consumption and compact construction.
Benefits
> long life expectancy
> compact design
> lower power consumption
Charateristics
> constant speed (independent of load and voltage)
> extremely short start-up and stopping times
> blocking proof for a short period of time
> self-holding torque in powerless state
> maintenance free
|
|
ROTEK Synchronous motors -- premium quality materials and finishing
Long-lasting - extremely efficient
First-class materials and precision finishing - the SM65 motor range gives you convincing, in-depth quality and long life.
A special permanent magnet rotor ensures maximum efficiency: a combination of excellent technical characteristics, lower power consumption and compact construction.
Benefits
> long life expectancy
> compact design
> lower power consumption
Charateristics
> constant speed (independent of load and voltage)
> extremely short start-up and stopping times
> blocking proof for a short period of time
> self-holding torque in powerless state
> maintenance free
|
|
ROTEK Synchronous motors -- premium quality materials and finishing
Long-lasting - extremely efficient
First-class materials and precision finishing - the SM65 motor range gives you convincing, in-depth quality and long life.
A special permanent magnet rotor ensures maximum efficiency: a combination of excellent technical characteristics, lower power consumption and compact construction.
Benefits
> long life expectancy
> compact design
> lower power consumption
Charateristics
> constant speed (independent of load and voltage)
> extremely short start-up and stopping times
> blocking proof for a short period of time
> self-holding torque in powerless state
> maintenance free
|
|
ROTEK Synchronous motors -- premium quality materials and finishing
Long-lasting - extremely efficient
First-class materials and precision finishing - the SM65 motor range gives you convincing, in-depth quality and long life.
A special permanent magnet rotor ensures maximum efficiency: a combination of excellent technical characteristics, lower power consumption and compact construction.
Benefits
> long life expectancy
> compact design
> lower power consumption
Charateristics
> constant speed (independent of load and voltage)
> extremely short start-up and stopping times
> blocking proof for a short period of time
> self-holding torque in powerless state
> maintenance free
|
|
The TORQUECHAMPION® direct drive system is the new highly dynamic drive system from LTi DRiVES for precise, fast and maintenance-free positioning.
* Its short length and lack of gearing means it takes up a minimal amount of space.
* The peak torque of the MIC motor is available up to the maximum speed, making positioning faster.
* The hollow shaft permits simple feed-through of cables, hoses or laser beams through the motor.
* The integrated measurement system with 8,388,608 increments per revolution and single-turn absolute information means no reference running is required.
* The MTC motor is an external-rotor motor. It can be coupled with a high degree of torsional rigidity without gearing directly to the mechanism. This means it has no gear play and suffers no wear, needs to maintenance and offers very high drive dynamics.
|
|
|
|
|
|
Permanent magnets brushless motors with high torque for direct drive
Based on the idea that a specific range should be elaborated, the FC motors range with high torque for axis without reducer was born in the beginning of the 90'.
This project, supported by the National Agency for Enhancement of Research, led ALXION to develop a range of 7 permanent magnets brushless motors, specially designed for direct drive applications in various industrial environments. The motors exist in 230 Vac and 400V / 460 Vac windings.
Main characteristics
# Permanent torque up to 461 Nm and peak torque up to 1745 Nm
# Possibility to use a hollow shaft up to 70 mm diameter
# Low speed rotation, from 800 to 190 rpm depending on type
# Position signal with high resolution: up to 393612 points per revolution
# High accuracy resolver: +/- 1 arc min
# Optionally: sine / cosine or TTL encoder
Advantages
# No reducer
# No backlash
# High accuracy servo
# Suppression of maintenance
# Simplification of the mechanism
# Noise reduction
|
|
|
|
|
|
Designed with the aim of addressing new industrial needs, ALXION has created ST low inertia motors range for DIRECT DRIVE allowing acceleration up to 20 000 rad/s². 145 ,190 and 300ST ranges present an outstanding compacity with a continuous torque-to-weight up to 3.7 Nm/Kg and a peak torque-to-weight up to 18 Nm/Kg. ALXION
Main characteristics
Permanent torque up to 235 Nm and peak torque up to 1161 Nm
Possibility to use a hollow shaft up to 75 mm diameter
Three motors technologies:
HP : high precision with cogging torque < 1 % for 145 & 190 ST
SP : standard precision with cogging torque = or < 2 % for 145 & 190 ST
X : high precision with cogging torque < 2 %
Position feedback:
Resolvers: precision ±1 arcmin or ±10 arcmin
SinCos encoders: incremental or with commutation track
ENDAT absolute encoders
HIPERFACE® encoders
Protection degree: IP54
Power and signal connections: Class 6, cables 2 meters length
Avantages
High dynamics
No reducer
No backlash
High accuracy servo
Elimination of maintenance
Simplification of the servomechanism
Noise reduction
Machine optimization and simplification
|
|
Direct Drive STK motors have been designed for being integrated at the heart of servomechanisms with the aim to improve the performances of axis control.
Thus, the use of ALXION's Direct Drive Technology offers adequate solutions regarding the improvement of dynamic performances and accuracy and allows to address applications with demanding constraints on volumes and weights.
Main characteristics

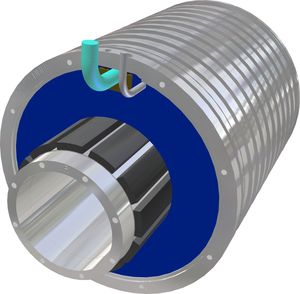

Continuous torque from 14.6 Nm up to 2708 Nm continuous in natural convection depending on size and up to 6100 Nm in fluid cooling.
Six external diameters from 145 mm up to 800 mm.
Internal diameter from 56 mm up to 630 mm.
Various available windings from 30 rpm up to 1500 rpm depending on type.
Advantages
High dynamics
No reducer
No backlash
High accuracy servo
Suppression of maintenance
Simplification of servo-mechanism
Optimization of servo-mechanism costs
Noise reduction
Functional optimization and machine simplification
|
|

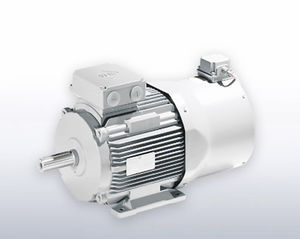

FRAME SIZE:
71 to 132
OUTPUT:
0.75 to 22 kW
TORQUE:
2 to 100 Nm
RATED SPEED:
1 to 6000 rpm
MOUNTING:
IM B3, IM B5, IM B35, IM B14, IM B34
DEGREE OF PROTECTION:
IP55 or higher
MAIN FEATURES:
sensorless permanent magnet ac brushless motors
motors comply with IEC requirements
temperature rise to class B
high efficiency motors (Super Premium)
higer motor efficiency within a wide range of speed
speed variation with drive
lower operating temperature
lower noise
possibility of non-ventilated cooling design
compact design and reduced weight
lower electrical power
OPTIONS:
special mechanical design
forced ventilation
encoder
TYPICAL APPLICATIONS:
electric pumps, ventilation, textile machineries, wind generators
|
|
TYC2 Series Rare Earth Permanent Magnet Three-Phase Synchronous Motor
The TYC2 series is a rare earth permanent magnet three-phase synchronous motor with high efficiency, high starting torque and high power factor. Using high quality rare earth permanent magnet material, the performance of the TYC2 series motor is greater than the Y series motor and the high-efficiency three-phase induction motor. It can be widely used in petroleum, textile, and chemistry industries.
|
|
Reversible Motors
Capacitor-run, single-phase motors. The outward appearance is the same as that of induction motors, however, these motors are suited for applications where the motor must frequently switch direction.
For applications where the motor must switch from one direction to the other on-the-fly.
|
|
