NORMACONNECT® SEC
Ball zone exhaust pipe clamp
The NORMACONNECT® SEC is the ideal problem solver for connection points in the central and rear exhaust gas area. During assembly, in combination with flange connections there is the option to swivel the exhaust silencer.
- Torx screw with integrated washer = simplified assembly and disassembly
- Convex-shaped band fitting ball-shaped flanges = perfectly adapted to the system
- Chromium VI-free, non-seizing coating = improved clamping force
- Solid trunnion, Chromium VI-free coating = high temperature resistance; withstanding high clampingforces
Further advantages:
- Angle compensation in the exhaust gas system
- The silencer can be swiveled during assembly
- Simplified assembly and disassembly owing to the increased system flexibility
- Higher torsion moment as compared to standard ball-type flange connections
- Low leakage rate
- Low weight
|
|
NORMAFIX® RS/RSGU
Pipe retaining clips to DIN 3016
NORMAFIX® RS/RSGU pipe retaining clips are ideal for attaching and retaining pipes, cables, cable harnesses, cable ducts, hoses and a wide variety of mains and lines.
- Reinforced band ends = preventing the clip from tearing or loosening in cases where there is a high mechanical load
- Form fitting and adjustable band = ease of assembly = sage attachment
- Optionally supplied with EPDM profile = vibration damping & protection aganist seepage water
|
|
Heavy Duty Clamps - V-Insert
IDEAL® T-Bolt V-Insert Clamp Series
Custom engineered to fit your flanged application. V-Bands seal connections for flanged joints. Typical applications include filter housings, turbocharger systems, exhaust systems and industrial applications where a flanged connection is required. V-inserts can be manufactured to OE specifications and are made to order. Send full specifications for quotes. Contact Ideal with your special requirements or use the Request a Quote feature to upload your drawing and specifications.
|
|
|
|
|
|
One-piece, self locking pipe clamp for safe and efficient installation of cables and tubes
- Simple mounting without locking screws
- Fast mounting
- Listed by IAPMO R&T/UPC®
- Approved by KIWA®, UL®
- Halogen free as per IEC-Norm 754-2
- Burning behavior as per UL94 HB
- Clamping range 8 - 127 mm
- Low height
- Different plastic materials possible
Since 1975 the self-locking pipe clamp CLIC has proved itself millions of times. Cables and pipes fixed with «Swiss Quality» are fast and securely fixed throughout the world.
Today, system solutions (pipe clamps, screws, plugs and accessories) are required, for instance in telecommunications. Consulting during the phase of planning, becomes more and more important. A long experience in business and our internal development division have allowed many individual solutions in collaboration with our customers engineers. Our production is able to preassemble tailor-made CLIC systems even at short notice.
CLIC ideally covers the demands for fixing points in sensitive environments. In many tunnels coaxial cables for radio and mobile telephone systems are openly mounted. The performance may not be impaired by interference from metallic parts. The plastic pipe clamp is therefore the best solution for the installation.
|
|
Specialty - P-Clips
IDEAL® P-Clips 80002 Series
Optimal for attaching and retaining hoses, pipes, cables, ducts and lines. Rubber coated. Rounded tips. 15 mm band width. 6 mm hole diameter.
Specialty - P-Clips
IDEAL® P-Clips 80003 Series
Optimal for attaching and retaining hoses, pipes, cables, ducts and lines. Rubber coated. Rounded tips. 16 mm band width. 10 mm hole diameter.
|
|
This is the classic product group. You'll still find products here from the early years which are still very popular with the installers and are processed in large quantities to day.
The newer product series of the anchor and C-profile rails with the accompanying clips and yoke clamps have still a high significance in the everyday workflow, too.
|
|
|
HellermannTyton’s snapper hose clamps are lightweight, corrosion resistant hose clamps manufactured from high performance, thermoplastic materials selected to work well in a variety of diverse environments. A quick, ratchet closure provides for reduced assembly line time and allows for application after connection of the hose. Hose clamps may be applied using one of HellermannTyton's hose clamp tools.
|
|

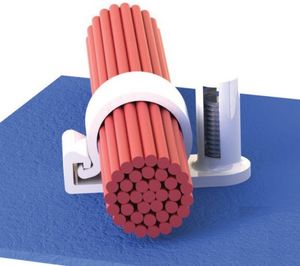

PUSH LOCK CABLE CLAMPS AND SNAP LOCK CABLE CLAMPS DESIGNED TO INSTALL WITHOUT DAMAGE AND TANGLES TO SENSITIVE WIRE/CABLE/HOSE BUNDLES
Heyco Products, Inc., a leading ISO 9001:2000 US-based designer and manufacturer of wire protection products and electrical components, is now offering a new line of Push Lock Cable Clamps and Snap Lock Cable Clamps for clamping cable/wire/hose bundles securely in place.
Both clamp types resist corrosion, salt water, weak acids, grease, and common solvents (non UL certified or tested).
|
|
|
|
|
|
New Generation ABA NOVA clamps incorporate a newly designed housing positioned to more evenly distribute a high clamping force and give safer guidance of the emerging band. The short housing saddle also provides optimal contact pressure on the hose.
New Generation ABA NOVA clamps have been extensively tested and easily surpass the test torques of DIN 3017. They also comply with SS 2298, providing an excellent combination of idle tightening torque and clamping force torque.
The New Generation design results in a clamping force reserve that resists breaks for a safe seal connection. In addition, smooth undersides and rolled-up band edges are gentle on the hose and reduce risk of leakage as well.
With ABA NOVA clamps you will always enjoy:
• First-class products produced in plants certified
to TS 16949:2000. The best steel qualities
enable stable production processes and provide a
high and even product quality.
• Products produced in plants certified to
ISO 14001 and made entirely with recyclable
materials.
• Continuous improvement to always exceed the
high demand of SS 2298 standard. This assures
you of products with a high break torque combined
with a high clamping force around the hose
Technical facts:
• Comply with SS 2298
• Exceed DIN 3017 Standard
• High clamping force
• High break torque
• Less idle torque
• Traceability Code
|
|
Safe and Secure
No matter where or what needs to be connected, there is hardly any connection problem which cannot be solved. OETIKER Clamps and Rings can connect practically anything from hoses, pipes, cables, ropes and other objects, in all different materials and under the toughest conditions, securely and permanently – disconnection only as required.
OETIKER solutions for connections in a wide variety of applications and industries prove themselves in use day in and day out:
• Agriculture, Farm, Forestry
• Vehicle Industry, Car Component
Suppliers and Car Aftermarket
(Passenger Cars, Heavy trucks, buses,
Motorcycles)
• Building, Construction, Sanitary
• Medical, Chemical, Pharmaceutical
• Electronic, Electrical, Power Generation
• Food and Beverage
• Military
• Mining, Petrochemical and Gas
• Maintenance, Repair and Operation
(MRO)
• Machine and Apparatus Engineering
• Marine and Ship-Building
• Public Transport, Aerospace, Aviation
• Welding
|
|
Specialty - Turn-Key® Hose Clamps
IDEAL® Turn-Key® Clamps - Yellow (All)
Innovative design installs with a simple hand twist, no tools required and holds standard installation torque of 30-35 in.-lbs. It’s easy to remove and replace. Just pull off the screw cap for a tamper-resistant connection. Available in a variety of sizes and assorted packs. Common applications: automotive heater and radiator hoses, garden hoses, R.V. sewer hoses, dryer vent hoses, and more...
Specialty - Turn-Key® Hose Clamps
IDEAL® Turn-Key® Clamps - Yellow - 6-PACK
The IDEAL® Turn-Key® Hose Clamps are made of high-quality steel and install with a simple hand twist, no tools required. Reusable and easy to take on and off. 6-PACK Carded Assortment
Specialty - Turn-Key® Hose Clamps
IDEAL® Turn-Key® Clamps - Dryer Vent
The IDEAL® Turn-Key® Hose Clamps are made of high-quality steel and install with a simple hand twist, no tools required. Reusable and easy to take on and off. 2-PACK Dryer Vent Carded Clamps.
|
|
EUROPE TYPE CLAMP WITH THE GRIP
WE CALLED IT BUTTERFLY HOSE CLAMP
WITH POM PLASTIC GRIP, IT IS EASY
TO CONNECT PIPE BY HAND
MATERIAL: W2 STAINLESS STEEL
WIDTH : 9MM WIDTH
|
|
CV-JOINTS FOR CARS
MATERIAL : ALL PARTS ARE MADE UP OF #430S.S
IT IS AVAILABLE FOR #304S.S
SIZES AVAILABLE UPON REQUEST
|
|
General Purpose Non-Perforated/Solid DIN 3017
TRIDON® 131 Series
9mm. W1. Specially designed for use with silicone rubber and other soft hose applications.
General Purpose Non-Perforated/Solid DIN 3017
TRIDON® 141 Series
12mm. W1. Specially designed for use with silicone rubber and other soft hose applications.
General Purpose Non-Perforated/Solid DIN 3017
TRIDON® 132 Series
9mm. W2. Specially designed for use with silicone rubber and other soft hose applications.
General Purpose Non-Perforated/Solid DIN 3017
TRIDON® 142 Series
12mm. W2. Specially designed for use with silicone rubber and other soft hose applications.
General Purpose Non-Perforated/Solid DIN 3017
TRIDON® 134 Series
9mm. W4. Specially designed for use with silicone rubber and other soft hose applications.
General Purpose Non-Perforated/Solid DIN 3017
TRIDON® 144 Series
12mm. W4. Specially designed for use with silicone rubber and other soft hose applications.
|
|
|
Mubea spring band clamps are self-tensioning sealing components. Thanks to use of hardened and tempered spring band steel they posses great flexibility and therefore continuously adapt to the changeable characteristics of hose and spigot. With their almost constant elasticity, spring band clamps provide a continuous, leak-free seal over a temperature range of -40°C to 170°C.
|
|
Clamps for all applications
- Single or double ear O Clips
- Screw clamps with solid band
- Screw clamps with perforated band
- MINI clamps
- MICRO clamps
- Robust clamps
- Rubber-coated clamps
- Double galvanized wire clamps
|
|
THE CONSTANT VELOCITY JOINTS IS RESPONSIBLE A MAINTENANCE TASK
FOR CAR AXLE.
MATERIAL : ALL PARTS ARE MADE OF #430S.S
LENGTH CAN BE REQUESTED BY CLIENT'S REQUEST
|
|
Standard Features
- 100% stainless steel construction
- ¾" wide 22 gauge band
- Spot welded at joint for strength
- Stainless steel nut & bolt ¼ - 20 thread
- 2 ply band for even distribution of torque
- Manufactured in sizes from 1.5" dia. to 12" dia.
|
|
Brack-Its
• Used to mount traffic signs, security devices, and enclosures.
• Withstands stress and wind vibration with specially designed reinforcement ribs.
Fully threaded to solidly anchor attachment bolts.
•
• Hex head bolts with metal and fiber washer, no nuts required.
®
• Applied with BAND-IT
Band and Buckles, Valustrap™, Valustrap Plus™, BAND-FAST™ or
ltra-Lok Systems.
U
|
|
Bandclamps
Hi-Grip
Hi-Grip Spring-Claw
Hi-Torque
Hi-Torque (Spring-Claw)
Hi-Torque Heavy Duty
Platform
|
|
# Wider 9/16" 300 Series Stainless band offers wider sealing area
# Heavy-duty four piece construction
# Allows 80 inch pounds of torque
# 300 Series Stainless 5/16" slotted hex head screw and housing
# Highly corrosion resistant
# Wide range of applications including automotive, plumbing and industrial
# Sold in boxes of 10 or bulk quantities
|
|
Specialty - Quick Engage
IDEAL® Surelock 48 Series
Surelock’s bind-free pull-through design makes installation quick and easy. Captured screw design makes engagement and final tensioning trouble free. Extended housing embraces 25% more screw threads than competitive designs.
Specialty - Quick Engage
IDEAL® Surelock 49 Series
All 316 stainless steel series. Surelock’s bind-free pull-through design makes installation quick and easy. Captured screw design makes engagement and final tensioning trouble free. Extended housing embraces 25% more screw threads than competitive designs.
|
|
Spring Band Constant Tension Clamps
Custom engineered for automotive original equipment applications. Heat treated steel construction and spring design compensate for compression set and thermal cycling.
MicroFlex Clamps
For small diameters. Captured helical spring design provides a continuous load to compensate for hose compression and thermal dimensional changes (cold flow).
Flex-Gear® and Flex-Gear HD®
Using a Bellville spring design to eliminate "cold flow" leakage, Flex-Gear® and Flex-Gear HD® clamps adjust with the hose and fitting to maintain constant tension on the connection, eliminating leak paths.
T-Bolts Spring Loaded
Helical spring design provides a continuous load to prevent leak paths from temperature fluctuations. Typical applications include heavy truck charge air and cooling systems.
|
|
|
|
|
|
Heavy Duty - POW’R-GEAR®
IDEAL® Pow’r-Gear® Clamps 60 Series
410 stainless steel screw. Designed for high vibration and stubborn leakage application such as industrial machinery, heavy truck, farm and off-road equipment or engines. Features extra wide 5/8" band and housing. Delivers high rates of band tension.
Heavy Duty - POW’R-GEAR®
IDEAL® Pow’r-Gear® Clamps 6P Series
300 stainless steel screw. Designed for high vibration and stubborn leakage application such as industrial machinery, heavy truck, farm and off-road equipment or engines. Features extra wide 5/8" band and housing. Delivers high rates of band tension.
Heavy Duty - POW’R-GEAR®
IDEAL® Pow’r-Gear® Clamps 6L Series
Lined band. 410 stainless steel screw. Designed for high vibration and stubborn leakage application such as industrial machinery, heavy truck, farm and off-road equipment or engines. Features extra wide 5/8" band and housing. Delivers high rates of band tension.
Heavy Duty - Pow’r-Gear®
IDEAL® Pow’r-Gear® Clamps 6M Series
Lined band. 305 stainless steel screw. Designed for high vibration and stubborn leakage application such as industrial machinery, heavy truck, farm and off-road equipment or engines. Features extra wide 5/8" band and housing. Delivers high rates of band tension.
Heavy Duty - POW’R-GEAR®
IDEAL® Pow’r-Gear® Clamps 6X Series
Extra band notches. 410 stainless steel screw. Designed for high vibration and stubborn leakage application such as industrial machinery, heavy truck, farm and off-road equipment or engines. Features extra wide 5/8" band and housing. Delivers high rates of band tension.
|
|
Non-Perforated/Solid DIN 3017
Available in 9 mm, 12 mm and 7.5 mm in W1-W5 materials.
1/2" Band Clamps
1/2" Band clamps are suitable for most common home and automotive applications.
Small Diameter Clamps
These clamps are tiny, tough and precision engineered for use in small hose applications. Their slim 5/16" band and low profile make them easy to install in confined areas.
Lined Clamps
Lined clamps are specially designed for use with silicone, rubber and other soft hose applications. The liner protects the hose surface and prevents extruding or shearing as the band is tightened.
Solid Clamps (Non-Perforated)
Preferred by the European original equipment and replacement markets, the non-perforated band protects silicone and other soft hose surfaces from extruding or shearing during installation.
|
|
FULL BAND ZEBRA HOSE CLAMP
MATERIAL : W2,W4,W5 STAINLESS
SIZE : FROM 8MM-320MM
BAND : 9MM WIDTH
HOUSING : STANDARD OR WELDED TYPE
|
|
|
|
