Universys

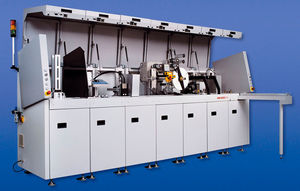

Modular all-in-one system for personalizing plastic and paper cards.
Modular design is the main advantage of the Universys, which contains standardized separation, rotation, ink jet printing, hot stamping and stacker modules. A labeling module or a magnetic stripe coder can be added to handle special applications. The modular design enables users to quickly reconfigure the system and upgrade it at a later date, and it also gives them the flexibility to react without delay to changing market conditions.
The KBA-Metronic alphaJET C inkjet printer is suitable for single ABS, PVC,
paper and PET cards in landscape or portrait format. The hot stamping
module covers relevant data with a scratch-off film foil up to a maximum
of 400 mm2. It has a capacity of 7,200cards per hour.
The security covering system hides secret personal information from view.
An integrated code camera verifies all of the relevant print data in compliance with the latest safety and marking requirements. The multi-functional Universys is ideal for addresses, personal data, PIN numbers, barcodes, serial numbers, expiry dates and scratch-off fields.
|
|
|
|
|
|
|
We are pleased to inform you that TAMPOPRINT AG has extended its delivery programme by the successful further developments of the well proven 2-lane tampon printing machine types Rotoprint and Continua. The extension of the Rotoprint to 3 lanes allows an output of 150.-180.000 closures / h, printed with 1 to 3 colours and with a max. parts diameter of 26-32 mm. Closures with a diameter of 38-50 mm can be decorated with an output of up to 120.000 parts / h with 1 to 3 colours. The combination of the electro-mechanical drive by means of a toothed wheel and the use of only one printing cylinder (manufactured for a precise fitting on a rotary gravure laser) per ink unit lead to a perfect accuracy with an accordingly high machine efficiency. The advantage is first of all that only one clich cylinder 100x150 mm per printing unit is needed and therefore the set-up costs remain low. Compared with the Rotoprint, on the 3-lane Continua it is possible to achieve a quality print with an output of more than 180.000 closures / h, using up to 5 colours. Both machine types have as a standard feature a new gas pretreatment which is automatically controlled depending on the printing speed and thereby achieve an optimum ink adhesion. After the cold air intermediate drying for both lines also the end drying can take place by means of gas. Optionally it is possible to integrate camera systems for the print image control. The components are fitted to our printing lines with a new sorting elevator that is gentle to the parts and colour-independent. The feeding of the closures takes place via gravitation, without mechanical damage and without air consumption.
|
|
UREL Automatic Printing line for DCB & IMS
Description
The VS1520M IN-LINE PRINTER with special indexing system for ceramic substrates.
Substrate dimension up to 200 x 200 mm.
Applications
Printing of inks
Solder resist
Solder paste
Adhesive for SMD
Line includes
Loader from cassette or coin stack
VS1520M printer
Furnace for curing, IR, UV or COMBI
Unloader into magazine or SMEMA interface for other machines
|
|
|
|
|
|
Premius
Brilliant print results and high gloss effects with waterless offset printing
and UV technology. High-speed printing on a wide range of media
including DVD, CD, MiniDisc, Optical Business Card and special formats.
The Premius offset printing machine from KBA-Metronic AG helps your business thrive. You get brilliant print quality combined with excellent performance and perfect reproduction of photorealistic images on DVDs, CDs, MiniDiscs and Optical Business Cards from the first piece to the last even on large print runs.
The consistency of print results on the Premius is simply outstanding. Mature, field-proven technology from KBAMetronic is your guarantee of exceptional print quality. Waterless offset printing,
short inking units without ink keys and an efficient four-cylinder print unit design all enhance ease of operation, reliability and availability. UV varnishes can be applied to some or all of the media surface to add a high gloss appearance.
The speeds are equally impressive. You can print up to 7,200 pieces an hour, change printing plates semi-automatically in less than 5 minutes, and there is no need to adjust registration. All of this adds up to short setup times and high machine utilization, even when you are running more than one shift.
KBA-Metronic AG has many years of experience with short inking units that
work without ink keys. Temperature is used to control the color tones which
remain constant across the entire width of the print surface. Many adjustments that are necessary with conventional offset printing such as setting ink keys are not needed on the Premius.
|
|
|
|
|
|
The result of years of research and experience in the field of pad printing, this machine is able to print from 1 to 5 colours. Computerised electronic control with 4 axes, movements by means of motors and ball screws. Independent horizontal strokes of pads and sealed ink cups (or open plate-holding inktray) and vertical strokes of pads and piece-holder axes. The machine is designed for a wide variety of accessories giving very great control and for maximum printing precision, also over time. High productivity.
Features
- The machine structure is in electric-welded steel, enamelled and normalised to avoid deformation and vibration. Oven-enamelled with dual component paints.
- Machine movements and regulation are numerically controlled, using a touch keypad, easy to learn and simple to use. The operations are displayed on a backlighted LCD.
- The keypad in solvent-resistant material is mounted on a mobile arm for easy use.
- Capacity to store up to 30 work programs.
- Ability to program vertical axis height above the plate.
- Checks of machine controls via modem from our factory.
- The machine complies with Machinery Directives EEC/89/392 & EEC/89/336.
|
|
|
|
|
|
4-color pad printing machine with Conveyer
SpecificationsU
SPM4-150/16G Four-colour open inkwell pad printer with conveyer:
1.Max. plate size: 100150mm
2.Max Printing area: 85130mm;
3.Max. worktable area: 90125mm
4.Max. printing speed: 1200pcs/h
5.Printable colours:4
6.Stroke of cylinder up-down: 80mm;
7. Stroke of table shuttle: 125mm;
8. Range of table height adjustment: 250m.
SPM4-200/16G Four-colour open inkwell pad printer with conveyer:
1.Max. plate size: 100200mm
2.Max Printing area: 85170mm;
3.Max. worktable area: 90125mm
4.Max. printing speed: 1200pcs/h
5.Printable colours:4
6.Stroke of cylinder up-down: 80mm;
7. Stroke of table shuttle: 125mm;
8. Range of table height adjustment: 250m.
SPM4-250/16G Four-colour open inkwell pad printer with conveyer:
1.Max. plate size: 100250mm
2.Max Printing area: 85220mm;
3.Max. worktable area: 90125mm
4.Max. printing speed: 1200pcs/h
5.Printable colours:4
6.Stroke of cylinder up-down: 80mm;
7. Stroke of table shuttle: 125mm;
8. Range of table height adjustment: 250m.
AdvantagesU
1.Total microcomputer controlled operation;
2.Auto four digit counter built-in;
3.Ink covering by ink roller ;
4.Fully coin aluminum structure which is sturdy and long life
5.Independent pad stroke and speed control;
6.Printing speed adjustable to meet with different needs;
7."Inking twice, printing once" to get thicker ink covering;
Machine FittingsU
1. Four Pad plates,
2. Four pads
3. Two blades
4. A tool box.
|
|
|
|
|
|
CD-Print
CD, DVD and Blu-ray (BD) printing in photorealistic quality using waterless offset printing and UV technology. Also suitable for small print runs.
CD-Print from KBA-Metronic AG gives manufacturers and service providers in
the CD, DVD and BD sector the efficiency, flexibility and quality differentiation that they need to deliver what customers are looking for. CD-Print is ideal for small to medium print runs. It offers professionals a very efficient professional solution, which novices also find easy to use.
6,000 photorealistic prints per hours, minimal startup waste and fast changeover make CD-Print the superior choice. The system features relatively low operating costs, which are made possible by waterless offset printing using short inking technology, one-man operation and reproducible print runs. Because CD-Print uses UV technology combined with a high-performance drying system, the discs can flow into downstream operations right after printing to avoid unwanted idle time.
CD-Print features a practical compact, modular design. It is designed for
tomorrows applications. Two additional print stations for decorative colors can be added to CMYK printing. In addition to the white basic unit which comes as standard equipment, a varnish unit can be supplied as optional equipment which gives the disc an appealing finish.
CD-Print is the ideal partner wherever space, cost and time are crucial
production parameters.
|
|
Cylinder Automatic Pen-rod screen printer
Machine Parameters:
Printing Speed: 4000pcs / hr
Printing Size: 8-100mmPrinting Length 25-270mm
Compressed Air: 0.6MPa
Lp Gas: 0.15MPa
Dimension Unit: 1907~1000~1500mm
Test Table: 2000~500~700mm
Power Unit: 380VACC3-PHASEC6.5KVA
Test Table: 220VACC1-PHASEC0.2KVA
ApplicationF
It is a one color automatic colour screen printing machine with fully auto feeding, flame treatment, screen printing, UV curing and loading system. It is fully automatic screen printing machine and perfect for printing one color pen rod, plastic bottles and oval shape products which require very high working capacity. The thansmission structure advantaged designed, so the machine runs stable and to be operated flexibly.
|
|
|
|
|
|
Automatic Glass bottle screen printer
SpecificationsU
1. Product Outlook: Ink Cylindrical
2. Printing Size: Max Dia.80mm
3. Printing Length: Max. Length:300mm
4. Working Capactiy: 900pcs/hour
5. Frame Heating Power rate: 2.2W
6. Power Supply: 220V 1-phase 50Hz
7. Air Compressor: 5-7 Bar
8: Total Power Rate: 2.8KW
10: Machine Dimension:2300 1000 1700mm
Advantages:
Products Description: Aluminium alloy structure frame;
Automatic feeding, transportation,screen printing, drying;
One time loading objects and muti-colour overprint. fit printing objects without orientation point and hole;
PLC controlling and touch-screen operation technology;
World famous brand pneumatic part and electron parts;
High printing efficiency and high printing precision;
S-303 is a fully automatic 3 color glass bottle silk screen printing machines. The major application of this machine is for the printing of beer bottle,drinks bottle and water glass, cup, ceramtic vase etc. The feasure characteristic of this machine is to applies simple solution to solve registration positionaing problem.
Adopt the high temparature glass ink, printed by heating melted glaze. After finsih printing, taking the final step of drying burning process with high temapature stove so as to make the ink completly melting with the substrate. The screen frame is being used recylce. You will be astonished by the printing quality as well as the low printing cost and environmental protection. The Glaze was meted.
|
|
Electrical Fully Automatic Pen-rod cylinder screen printer
SpecificationsU
1Objects diameter320 mm
2Objects length70180 mm
3Printing stroke 2080 mm
4Max printing speed 6600 pcs/hr
5Motor wattage 4.5kw
6Net weight 450kg
7Outer dimension 320011201520mm.
AdvantagesU
Cleaning screen , adding ink when stopping will not singe objects in drying closet;
With vacuum function seated (selection ) for precision orientation.
High speed printing;
Printing two kinds of diffrent objects meantime is able.
Installed surface cleaning device;
Double blade design for high quality coating ink;
Eletron controlling ensure lower noise;
Automatic feeding and printing;
Printing stroke and printing speed is adjustable;
Taiwan frequency conversion production installed
IR or UV drying system online.
|
|
Serie LOGICA is a range of machinery studied and realized to simplify the pad printing process.
Their technological contents, as the CN electric operation, make these machines versatile and useful for any needs.
Serie LOGICA is splitted in 2 lines dedicated to different exigencies:
HIGHSPEED LINE main characteristics are high working cycles on small/medium size objects and an easy setting to be transformed in a real pad printing plant.
With HIGHSPEED LINE, TOSH improves the pad printing application opportunity even on applications where pad printing was excluded by machines technical limits.
FLEXIBLE LINE, developed for multicolour print on medium/big size objects (till 10 in a single cycle), distinguish itself with a great operative flexibility that mix very fast production changes with high production cadences.
|
|
|
|
|
|
Price TermsU FOB GuangZhou
Payment TermsU T/T.LC
PackingU Wooden case
Lead TimeU Within 7 days
Standards CertificateU ISO9001-2000
Power SupplyU 110/220v 60/50Hz 1Phase
Colour Painted U Green
SpecificationsU 1.Max. plate size: 200x450mm;
2.Max. worktable area: 520x220mm;
3.Max. Stroke of working table:200mm;
4.Max. printing speed: 800pcs/hr;
5.Air consumption: 225L/min(6bar);
6.Dimensions: 1231x850x1359mm;
7.Weight: 250Kg; .
AdvantagesU 1. Microprocessor control for each function makes operation easy;
2.4-Digit auto counter built-in;
3. Coin aluminium structure ensures sturdiness;
4.Ink roller used for ink applying is easy to remove and clean;
5.Independent stroke and speed adjustment for pad up/down;
6.Auto balanced doctor blade ensures that ink can be scraped cleanly and completely;
7.Adjustable printing speed meets different printing requirements;
8.It is available that ink roller keeps working while pad doesn't lower down that so that ink will not easily become dry;
Machine FittingsU 1. large steel plate one pcs;
2. Fxiture for computer keyboard;
3. Combination pad for computer keyboard.
This Model is designed especailly for printing keyboard of computer we will make expert computer keyboard fixture, combination pad, Pad plate according to different size of keyboard as per customers requirements.
|
|
Junior 90
This machine has been designed for print sizes from 80 mm, with 90 mm eter sealed ink cup, one colour, for bench use or with base. Up to 7 electronically controlled speeds; with microprocessor-controlled pneumatic movement, manually adjustable vertical stroke. High productivity.
|
|
SP-350-FR
SCREEN PRINTING MACHINE
FEATURES
- PLC Controlled, Pneumatically operated
- Flat, Curved and Round Printing
- Linear Bearings for long life
- Aluminum Parts for faster and smoother operation
- Good quality components and Pneumatics
- Simple to operate
- T-Slotted XY & R table for easier and faster registration
- Attractively and appropriately treated with powder coating, Hard Anodising and Electroless Ni.Plating
- Noise less operation with shock absorbers
- All the required adjustment built-in
- Bottle inflation attachment available
- Registration of earlier colour for round articles available
- Fast and easy change over from Flat to Round printing
- Marked Dials & Scales for easier settings
|
|
The market demands more and more compact and flexible designs for automations and system solutions. For machines with high hourly outputs the camera inspection of good and bad parts has become a standard feature in the meantime; additional processes such as assembly or checking have to be integrated. It is, however, necessary that semi-automatic machines for smaller but often changing series can be retrofit within a very short period of time.
High-speed pad printing machine as a symbiosis of machine construction and application engineering by TAMPOPRINT AG. As a leading turn-key supplier TAMPOPRINT is able to implement customer URS (User Requirement Specifications) into special machinery.
|
|
|
|
|
|
6-color pad printer with conveyer
SpecificationsU
SPM6-150/18T
1.Max. plate size: 100300mm
2.Max. worktable area: 70x100mm
3.Sealed cup diameter: 90mm
4.Max. printing speed: 600pcs/h
5.Printable colours:6
6.Max print area: 80mm130mm;
7.Station number: 18pcs
8. Max Products Dimension: 120230mm.
9. Table stroke: 125mm
SPM6-150/22LT
1.Max. plate size: 150350mm
2.Max. worktable area: 70x100mm
3.Sealed cup diameter: 140mm
4.Max. printing speed: 600pcs/h
5.Printable colours:6
6.Max print area: 130mm130mm;
7.Station number: 22pcs;
8.Max Products Dimension: 190230mm;
9.Table Stroke: 200mm.
AdvantagesU
1. Six color printing with conveyer;
2. Microprocessor control with numerical display leads to easy operation;
3. Automatic 5-digit counter installed;
4. With aluminum alloy frame, the machine is light and sturdy ;
5. The speed and the vertical stroke of the pad can be adjusted independently;
6. With sealed cup to protect operating environment;
7. The extra function "twice inking, once printing" is designed for thicker ink film;
8. For different requirements, the working speed can be adjusted;
9. Sweeps forward and backward without pad falling down, to prevent ink drying;
10.6-color, 3-color, 2-color, 1-color printing available,
11.The ink cup can be independently adjusted for overprint;
11.With air jet for fast drying;
Machine FittingsU
1. Six plates,
2. Six pads
3. Six sealed cups
4. One tool box.
|
|
Machine Parameters:
1.Printing Speed Round: 4000pcs / hr Oval 5000pcs / hr
2.Printing Size: Round Diameter 20-100mm Length 25-270mm
3.Printing Length: Oval Width 25-120mm Length 25-270mm
4.Compressed Air: 0.6MPa
5.Lp Gas:0.15MPa
6.Dimension Unit: 1907~1000~1500mm
7.Test Table: 2000~500~700mm
8.Power Unit 380VACC3-PHASECUnit 6.5KVA
9.Test Table 220VACC1-PHASEC0.2KVA
ApplicationF
This multi-purpose fully-automatic polychromatic screen printer is applicable to print patterns on the surface of cylinders and oval cylindrical bottles. The colors can be either assorted or fixed by connecting a number of machines or separating machines to print so as to meet different customersf needs to the most extent. The updated transmission design features being more stable, easier to switch to bottles of different shapes, and more flexible. Besides, its favorable price ratio will drive the product to be used by more and more small and medium-sized enterprises
|
|
|
|
|
|
Machine Parameter:
1.Printing Speed: 3000-3600pcs/hr
2.Product Printing size Range: Cap's outter size:15-34mm Cap's Height:25-60mm
3.Air Compressor:0.6-0.7MPa 4.Gas Pressure: 0.15MPa
5. Dimension: 300X1900X2900mm 6. Power Supply: 380V 50HZ 7.Power Rate: 6KW
Machine Description:
Design for the round product without the fixed position, mainly printing the soft tubes, caps, circular bottles. Can accurate printing 1-5color and chromatography.
This Machine is one of our newest creative and latest patented design of our fully automatic horizontal type screen printers with conveyors.
Transmission mainly used for high-speed precision intermittent segmentation combined with the standard cam, meanwhile realization of the precise point, to make machine more stable and reliable operation at up the speed to 3,300 pcs / hr. Adopt international PLC control and the setting up of simple and efficient operation of the touch screen, and easily achieve human-machine dialogue, operating comes in handy.UV curing adopts the PRIMARC UV curing system of our agency Company in the United Kingdom, in the event that guarantee the stability and performance of the energy savings, will be even more excellent curing effect.No case has not printing, low-pressure alarm, waste / alarm wrong material, UV overheating alarm monitoring function. Automatic loading and lay off system guarantees the continuity of printing, and avoid as much as possible in the printing process in the printing surface of the trauma of protection for the safe operation of operating personnel.
|
|
There is a clear trend towards automations, and additionally beside of the successful standards even to customized system solutions for the special demands of our customers from all over the world. The export share is over 60%. High-precision marking, often combined with the European hygiene standards as it is often the case in the pharmaceutical supply industry, are the key tasks for the tampon printing at TAMPOPRINT AG.
The ALFALAS laser systems are a complement to the tampon printing and one cannot imagine the modern marking processes without them. Whether day and night design in the automotive or telecommunication industries, wood grain design or marking of spare parts. There are often machine lines which represent a symbiosis of both marking technologies.
The perishability of the modern industrial design and individually adapted workpieces require a just-in-time production with a low number of pieces and this will well accommodate the laser marking.
|
|
|
|
|
|
PAD PRINTING MACHINE GTO EVOLUTION 5 COLOURS MAXI WITH DISERFIED DESCENT
- Supporting frame completely in aluminium casting
- Electro-pneumatic operation
- Equipped with 5 closed ink cups, 110 mm. with internal and external teflon coating to reduce the cleaning operations and times
- Type block size 300x125 mm.
- Max printing area 100x90 mm.
- Bed in painted sheet, included
- Programs with 1-2-3-4-5 colours
- Equipped by, individual pad Dow stroke every cylinder
- Double colour intake program included
- Speed/pause adjustment through keyboard
- Electronic piece shifting unit, programmable through the external keyboard
- Type block holding bed adjustable on two axis
- Pad down stroke adjustment through keyboard with on-screen display
- Piece counter with displaying of hour average production rates
- Sliding side guards
- Decibel noise level reduction filters
- Piece holder, adjustable on the three axis, complete with oscillating adjustment to facilitate the printing on objects
- With diagonal level
- 220 Volt
- 6 Bar
|
|
Sealed Ink Cup 60
- High-quality tampon printing machine at a favourable price
- Suitable for automations thanks to PLC
- Different sequence cycles adjustable
- Ink residue pick up system available
With the new "Sealed Ink Cup 60 E" we have succeeded in creating a modern and a technically high-quality electropneumatic tampon printing machine. Based on the previous version "Sealed Ink Cup 60" an electrically driven tampon printing machine with many advantages such as double and triple print or piece counter was developed. Whether as a hand-work place or as a component of an automation, the "Sealed Ink Cup 60 E" can be used almost everywhere.
|
|
|
|
|
|
ROTOTAK 5
The rotary 1-colour pad printing system used to print shaped heels or monoblock soles in one colour to obtain a leather effect, floral decorations or other effects. System description:
Pad printing machine GTO EVO
Type block dimensions: max 600x200 mm.
Adjustable stroke on two sides.
Electro-pneumatic operation.
Max. printing dimensions: 150x300 mm.
Hermetically sealed inking system with ceramic ring 180 mm.
1 standard cup.
Structure: cast in aluminium alloy
Standard columns on enclosed bearing structure.
Heel handling system:
Handling system of the heel made up of 5 NC interpolated axis system. The 1st axis makes the linear movement of the piece, a 2nd axis turns the piece under the pad simultaneously and in a synchronised manner, the 3rd axis raises and lowers the piece to adapt to the shape of the heel in order to avoid straining the pad excessively. The 4th axis tilts the piece to adapt to the last print, given by the second pad unit. Finally the 5th axis turns around the vertical axis.
The heels are manually positioned by the operator in a blocking device made up of nr. 2 relief and shaped jaws that perfectly grasp the items.
Automatic piece discharger.
Software:
Customised with settings made using a keyboard and through self-learning function.
Possibility to save the operational data on disk for one colour for each model.
Safety systems:
Installed on the actual machine in compliance with current norms, plus EC declaration of conformity.
Page 2
Hourly production: Roughly 400 pcs/hour with women and men heels, 200 pcs/hour with monoblock soles.
|
|
|
|
|
|
No. 1 ROTOTAK 1 EVO MODEL
Pad-printing machine used to decorate women%u2019s heels with angle open on two sides, front and back, with two strokes for leather, cork and other desired effects.
System description:
- Machine structure cast in aluminium alloy, base included;
- Equipped with No. 2 closed ink cups with 110mm-diameter ceramic ring; the cups are internally and externally coated with Teflon to facilitate the cleaning operations;
- Printing plate dimension for colour 120x450mm.;
- Max. printing dimension 200x90 mm.;
- Control keyboard;
- Electronic and differentiated adjustment for the two pads in printing phase carried out directly through the keyboard with values displayed;
- Printing pause and pick-up pause differentiated adjustment;
- Speed adjustment of each movement by means of flow regulators;
- Printing plates micrometric adjustment on the two axis and diagonal adjustment to obtain a quick centring;
- Heel-holder unit adjustment on the 4 axis, including the oscillating one;
- Possibility to use the machine in single or automatic cycle.
Hourly production: is estimated at 400/500 pieces/hour.
|
|
|
|
|
|
Two colours pad printer with conveyer
SpecificationsU
PM2-100TG Pad printer
1.Max. plate size: 100200 mm;
2.Max. worktable area: 100x120mm;
3.Ink Cup diameter: 90mm;
4.Max. printing speed: 1000pcs/hr;
5.Printable colour :2;
6.Max printing area: 8080mm.
PM2-150TG Pad prionter
1.Max. plate size: 100250mm;
2.Max. worktable area: 130x140mm;
3.Cup diameter: 90mm;
4.Max. printing speed: 900pcs/hr;
5.Printable colors:2;
6.Max printing area: 85130mm.
PM2-200TG Pad printer
1.Max. plate size: 100300mm
2.Max. worktable area: 140180mm;
3.Cup diameter: 90mm;
4.Max. printing speed: 800pcs/hr;
5.Printable colors:2;
6.Max printing area: 85170mm.
PM2-250TG Pad printer
1.Max. plate size: 150350mm
2.Max. worktable area: 140180mm;
3.Cup diameter: 140mm;
4.Max. printing speed: 800pcs/hr;
5.Printable colors:2;
6.Max printing area: 130220mm.
AdvantagesU
1. Double color printing, shuttle driven;
2. Microprocessor control;
3. Automatic 5-digit counter installed.
4. With coin aluminium structure frame, the machine is light and sturdy. .
5. The speed and the vertical stroke of the pad can be adjusted independently.
6. The extra function "twice inking, once printing" is designed for thicker ink film.
7. For different requirements, the working speed can be adjusted.
8. Sweeps forward and backward without pad falling down to prevent ink drying.
9. 2-color, 1-color printing available,
10.With air jet for fast drying.
11. Sealed cup to store and coating ink.
Machine FittingsU
1. Two pcs plates,
2. Two pads
3. Two blades
4. One set tool box.
|
|
|
|
|
|
"HSC" High Speed Circular - Your round parts deserve ... our all-AROUND-printing
* The fastest 1-colour printing machine in the world
* 1-colour printing with flawless finest texts and graphics on the circumference
* Extreme output of 20.- 40.000 parts / h, 1-colour
* Cylindrical parts with a diameter of 2 mm - 30 mm
nnovation & Know-how - resulting in an unbeatable combination from TAMPOPRINT AG: A completely new rotary tampon printing process (patent pending /
DGM - German Utility Patent) with endless flow printing principle, with an exceeding output of 20.- 40.000 parts/h, printed in 1 colour with flawless finest texts and graphics on the circumference.
Basically: The smaller the diameter the higher the output / h. Cylindrical parts with a diameter of 2 mm -
30 mm. Thanks to the modular machine concept of the HSC"-High Speed Circular many different products can be decorated with the all-around-printing.
The "HSC"-High Speed Circular will be presented to the world public for the first time at the "Fakuma 2008" in Friedrichshafen (Lake Constance) / Germany,
Hall A1, Stand 1302 from October 14-18, 2008, where it can be seen in production.
Application examples:
Dialysis test tubes, syringes, refills for ballpoint pens
Ballpoint pen tubes, batteries, fiber pencil tubes
Tablet boxes, glass tubes, vials
Ink cartridges, tubes, safety fuses
Small aluminium boxes for tablets, tablet tubes
Cylinder made of plastics / metal
|
|
|
|
|
|
One Colour Sealed cup pad printer
SpecificationsU
PM1-100T
1.Max. steel plate: 100 200mm
2.Ink cup size: 90mm
3.Max. printing area :8085 mm
4.Printable color quantity:1
5.Max. printing speed: 1300 pcs/hr
PM1-150T
1.Max. plate size: 100250mm;
2.Ink cup disameter: 90mm;
3.Max. printing area: 80130mm;
4.Max. printing speed: 1000pcs/hr;
5.Printable color quantity:1;
PM1-200T
1..Max. plate size: 100300mm;
2.Ink cup disameter: 90mm;
3.Max. printing area: 80170mm;
4.Max. printing speed: 1000pcs/hr;
5.Printable color quantity:1.
PM1-250T
1..Max. plate size: 150350mm;
2.Ink cup disameter: 140mm;
3.Max. printing area: 130220mm;
4.Max. printing speed: 700pcs/hr;
5.Printable color quantity:1.
AdvantagesU
1.Each function controlled by microprocessor ;
2.Five-digit auto counter built-in;
3.Hight quality coin aluminium make structure solid and weight light;
4.Ink cup is used for ink covering,save ink and protect environment clean ;
5.The viscosity of ink is stable printing quality is easily guaranteed;
6.Independent pad up/down stroke and speed adjustment;
8.Printing speed adjustable to fulfil various requirements;
9."Inking twice,printing once"for thick ink film;
10.Able to sweep forward/backward without lowering pad to avoid ink drying at intervals.
Machine FittingsU
1. Thick steel plate one pcs,
2. One pad
3. One sealed cup
4. One tool box.
|
|
|
|
|
|
The remit for the construction of the Rotoprint model was a compact design while still achieving a high output.
The concept allows an output of up to 100,000 or 150,000 units/hour for closures with a 28 mm diameter, depending on the settings.
For closures with a 38 mm diameter, the machine achieves an output of approximately 75,000 or 110,000 units/hour.
The Rotoprint can be set up for print images with 13 colours.
With all variants, parts are fed using the well proven sorting elevator, eliminating the need for unnecessary machine stops due to closures being the wrong way round. The storage reservoir of the sorting elevator can be filled on request using the Octabin tilting stations.
The system is fitted with exchangeable mandrels. This guarantees a quick and economical process changeover on the system when printing several cap types.
The RTI 2000 printing unit is operated without the use of any tools and requires no external ink supply systems. This dramatically reduces set-up times and ensures trouble-free operation. Gas is used in the process of end drying. This guarantees that the ink dries quickly and assists ink adhesion.
The products are discharged in correct position on a cold-air drying conveyor.
|
|
|
|
|
|
SpecificationsU
1. The max printing thickness: 200 MM
2. Air consumption: 75 Lit/Min
3. Outline size: 10808501280MM
4. The max printing area : 200250MM
5. Dimension of working table: 250mm300mm
6. Max printing speed: 1800Pc/Hr
7. Max frame dimension: 410350mm.
8. Stroke of Squeegee: 250mm.
9. Stroke of Table cylinder: 60mm.
10.Max Diameter of Products: 75mm
11.Max length of Products: 300mm.
12.Gross/Net weight127kg/90 kg
AdvantagesU
1. Controlled by microprocessor easy operation running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame,low weight and high intensity,adjust convenient.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. With super long slide stroke to print large size workpiece.
9. Pneumatic part of the installation of the German FESTO Parts, Separate adjustment speed.
Application Scope:
Suitable for precise printing substrates in Cylindrical, Conical and Oval forms which with smooth curve surface and made of various materials such as metal, plastic, ceramic, glass, wood etc.. Printing objects such as lipstick, cosmetic bottles, scour bottles, drink bottles, pots, oil-filter shell etc..
|
|
MORLOCK has implemented the customer requirements with the help
of an extrusion type round table unit (carousel) and 14 exchangeable work piece holders. 2 very fast and easily adjustable MSC 100 printing modules, each with its own hot air dryers, have been integrated in this carousel. The
blister wrap is pasted over with a label by a 5-axial articulated arm robot, which picks up a label from a magazine, moves to a hot pasting station and then positions the label.
|
|
The ball printing machine ATLAS is designed for the decoration of PVC toy-balls over 360 with different sizes ranging from 110 mm ( 4,3") up to 250 mm ( 10").
The output is about 500 balls per hour. Both hemispheres of the balls are printed sequentially by different print heads.
Note that the mentioned printing speed depends on a lot of parameters and are to be considered as an indication. This output refers to the largest ball format.
In principle the number of printing stations is unlimited but experience tells us that the maximum possible is 12, equal to 6 (= 4 + 2) colours at each hemisphere. The installation is designed to achieve an unequalled print quality.
|
|
|
|
