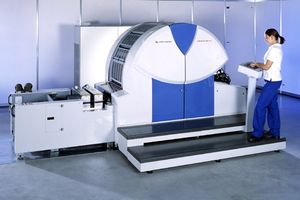

Genius 52 UV
Standardized sheetfed offset with waterless and UV technology without ink zones for printing on plastic and carton.
The economic strengths of the Genius 52 UV lie in small and medium-size print runs. Its most striking advantage is the small amount of setup work and the short period of time until the first "good sheet" is produced. It is inked up more quickly than other machines.
Specifications
General
Printing system: waterless offset printing
Printing units: 4 standard (or 5 optional)
Inks: UV-curing inks
Print substrates: from 0.1 to 0.8 mm (0.004 to 0.03"), (depending on substrate) PVC, ABS, PS, PE, PET, PC, carton and paper
Performance: max. 8,000 sheets/hour (depending on print substrate)
Stack height:
Sheet feeding 600 mm (23.62") max.
Sheet delivery 400 mm (15.75") max.
Formats:
Max. sheet format 360 x 520 mm (14.2 x 20.47")
Min. sheet format 210 x 297 mm (8.27 x 11.69")
Max. printing format 350 x 500 mm (13.78 x 19.69")
Gripper edge: 10 mm (0.39")
Printing plates: waterless, analog or digital
Format / thickness: 404 x 540 x 0.3 mm (15.91 x 21.26 x 0.0118")
Plate change: semi-automatic, register-true, complete plate change in less than 5 minutes
Length x Width x Height: 3,825 x 3,278 x 1,906 mm (150.6 x 129.1 x 75.0")
Footprint: approx. 12 m2 (129.2 sq.ft.)
Total weight: 6.2 tons (approx. 13,700 lbs)
Air consumption: 800 l/min (7 bar / 101.5 psi)
Power connection:
Connected load: 3 x 400 V / 230 V (± 10 %) TN-S-net, 50 Hz
Electric power: 50 kVA
Amperage: 84 A
Backup fuse: 100 A
Technical alterations reserved.
|
|
|
|
