APPLICATION

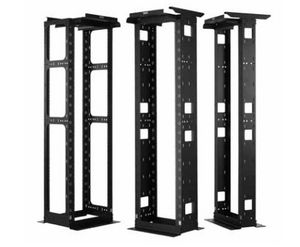

The 2-Post Open Frame Rack is a key element in a structured cabling system. With models sized to fit either 19 in. or 23 in. equipment, this floor mounted unit is particularly well suited for networking and data transmission applications.
FEATURES
Range of heights from 4 ft. to 9 ft. (24U to 58U) to match capacity requirements; 19 in. Rack Packages are 7 ft. high
Side rails are tapped on both sides with 12-24UNC threads for quick installation
EIA Universal 5/8 in. - 5/8 in. - 1/2 in. vertical mounting hole pattern matches industry standards
RU markings on both front and back of uprights make it easier to mount equipment
Packed unassembled in individual cartons; assembly hardware (including twenty 12-24 mounting screws) is furnished for convenient storage and installation
Can be shipped via FedEx or UPS
Convenient rack and cable manager packages offered with either one or two 6 in. cable managers
Each cable manager in the package includes a two-piece
snap-on cover
Packages are available in black or mill finish
CONSTRUCTION
Frame is a strong and lightweight aluminum (6063-T6 alloy) extrusion with RU markings on both front and back of uprights
FINISH
RAL 9005 black polyester powder paint or milled aluminum
INDUSTRY STANDARDS
UL 1863 listed, File No. E230874
cUL CSA22.2 No. 182.4, File No. E230874
EIA 310-D
|
|
|
|
|
|
19 " Rack for Data and ICT
We have designed a smart range of 19 " rack enclosures, especially for telecommunications and data applications. We supply a completely finished and mounted enclosure to save assembly costs, all the doors can be dismounted and the main door has a rotating handle. Our wide range of manufacturing possibilities offers customised design as standard, available from 21 U to 48U or even more. The enclosure design is fully ventilated in the upper part and can even house fans inside to force ventilation within the enclosure towards the outside, conserving the electronic components inside the enclosure in perfect condition.
Given the multitude of solutions we can offer for this type of enclosure, we can easily adapt to our customers' requirements and make any proposed solution viable.
Special Solutions
• The following colours are available: Grey RAL 7035, 7032 and Graphite Grey
• Types of doors: ventilated, with slats, blind, transparent, dark.
• Customised to your requirements.
• Ventilated plinths.
• Roof with forced ventilation.
• Metal feet.
• Soundproof rack enclosures.
• Manufactured in stainless steel AISI 304 or 316. EN 14401.
• EMC protection seams between the frame and the contact surface. Guaranteeing a perfect electrical connection. EEC 89/336.Standard.
|
|
Due to the hardness of the material, we recommend using metal multi-tooth screw
SZ 2486.300 for the interior installation.
Rittal Service:
TS stainless steel (1.4301) available in protection category NEMA 4x on request – please add extension .640 to the Model No.
Material / Surface finish
Material:
Stainless steel 1.4301:
Enclosure frame, roof, rear panel and gland plates: 1.5 mm
Door(s): 2.0 mm
Mounting plate: 3.0 mm sheet steel
Surface finish:
Enclosure frame and gland plates: Bare
Door, roof and rear panel: Brushed on the outside,
grain size 240
Mounting plate: Zinc-plated
Supply includes
Enclosure frame with door(s), mounting plate, gland plates, rear panel and roof, 2 support strips fitted in the enclosure depth (only with depth 600 mm).
Protection category
IP 55 to EN 60 529/10.91, NEMA 12 is met.
|
|
D-4080 Retractable Writing Shelf
D-4100 Storage Drawer
D-4454 Solid Bearing Sliding Shelf
C-7100 Ball Bearing Sliding Shelf
C-71307 Ball Bearing Shelf
D-4451 Adjustable Fixed Shelf
|
|
Eldon's Upgraded Floor Standing ElRack Patch and Server Rack Series
ElRack just got better! Not only is the "one-rack-solution" to providing a variety of different mounting possibilities a real winner with the industry, but now with the newly released accessories available, ElRack truly becomes a real trend setter! Whether you need 19", 23", 24" or ETSI (metric) requirements, the ElRack%uFFFD copes with all sizes, as standard.
Dimensions available:
- H: height from 21U (1000mm) to 48U (2200mm),
- W: width 600mm, 800mm and 900mm,
- D: depth 600mm, 800mm, 900mm, 1000mm and 1200mm.
The Elbox wall mounting range:
Boasting a fresh, appealing design, the new ElBox patch box comes in 400mm, 500mm and 600 mm deep versions. While both the 400mm and the 500mm will be supplied as knock-down or flat-pack versions, the 600 mm deep model will be delivered pre-mounted at the factory.
|
|
|
|
|
|
PE Rack Complete Cabinets - Complete Solutions for Networks and Servers
Project and Effi ciency Range with low-cost Complete
Cabinets for networks
-Models for maximum market coverage with 25 U and 43 U in
heights of 1200 and 2000 mm respectively, depths of 600, 800
and 900 mm and widths of 600 and 800 mm
-Extremely strong framework with a load bearing capacity of up
to 700 kg
-Frame can be “halved”
-High quality powder coating fi nish in light grey RAL 7035 on all
panelling components
-All panelling, such as side panels and doors, can be removed in
seconds.
-Top and bottom modules prepared for brush strips and/or
ventilators
-Doors fi tted with T-handles and locks. Can be exchanged for
pivoted handles.
-Plinths are passively ventilated, 100 mm high.
-Standard depth-adjustable 19” mounting angles
-Extremely high savings on baying solutions due to intermediate
sets
Material:
-Framework, vertical: 1mm steel sheet, multiply profi led; horizontal:
2 mm rectangular tube.
-Panelling: 1 mm steel sheet
Finish:
-High-quality powder coating in light grey RAL 7035
-Top/bottom modules, installation set for mounting angles and
19” mounting angles all galvanised
|
|
Eta offers a number of RACK solutions to satisfy a majority of applications including:
19" swinging frames
19" fixed frames
19" rails
Double Hinge Boxes (CR)
- Swinging frames with solid rotation hinges are manufactured from sheet steel and offer outstanding strength and versatility. The rotation direction is reversible (left-right) and the opening angle varies according to cabinet width.
- Fixed frames are applied directly on the cabinet framework. Only for cabinet with 600 width.
- CR Box (Double Hinge)
CR Boxes have two sections. The central section is used for mounting 19" components whilst the rear section with mounting plate, can be used for assembling standard components. The front with silk-screened security glass offers excellent visibility and aesthetic. Door can be mounted left or right.
|
|
- Vertical masts, internal uprights and anchoring cross-beams in metal sheet steel, 2mm. thickness, upper and lower base 1,5mm. thickness, painted in RAL 7035 (smooth finishing)
- Tempered glass door according to UNI 7142 -(88) norm
- Rapidly removable side panels in pre-painted RAL 7035 sheet steel and protected by a key lock
- Ventilation flutes on both upper and lower areas
- Roof equipped to accept forced-air ventilation unit
- Possibility to install a second pair of 19" frames in the rear position
- Roof and base equipped with cable entry holes with sliding covers
- Ready for ground wiring
- IEC borings on 19" frame
- IP 20 protection degree according to EN 60529 norm
|
|
The Rosenberger-OSI „Data-Center-Rack“ has been developed especially for FO patch distributors in data centers. In data centers the requirement for highest density becomes increasingly more important than in other cabling areas. To lead the through the very high density emerging large cable volumes professional and appropriate away from the patch fields, new cable management solutions are needed.
Advantages:
- installation of single data racks
- module system
- variable side wall and rear wall doors concept
- cable management system
- accessories
|
|
Features:
- 24" width aligns with floor tiles
- Vertical cable management options for mid to high density cabling applications are simple to install and allow user to configure system to their needs
- Rack is UL listed for 1500 lbs. load rating to accommodate large networking equipment
- 6" deep vertical channel design provides distribution cable pathway
- System accessories provide maximum flexibility that allows the user to customize the rack layout
- Rack features 19" or 23" EIA mounting
- Rack space identification allows quick and easy location of rack mount items
- Full length dual and single hinged doors provide an aesthetic finish and easy access to the vertical pathway
- Top channel provides pathway for cable or ladder rack up to 18" wide
|
|
SP20 Rack
- High-grade steel cabinet (light grey RAL 7035). Profi le technology guarantees maximum stability
- Fully assembled with basic accessories
- Flexible interior - designed to accommodate all currently available IT components
- Simple to assemble and disassemble - all cabinets can be dismantled
- Accessible from all sides (removable doors and panels)
- Can be used as stationary or mobile units
- 100% modular system, can be extended at any time
- Extremely strong frame with load bearing capacity of up to 1000 kg
|
|
|
RapidNet is a patented, high performance, pre-terminated system that utilizes a proprietary bundled cable cut to customer specified lengths. Combined with our patented cassettes, which protect the terminations, installation is a snap - literally. The cassettes snap easily into the RapidNet modular panel which fits into a standard 19" rack. RapidNet, manufactured in a stringent, quality controlled environment, arrives pre-labeled and pre-tested which contributes to higher quality and lower installation times. Because it can be installed so quickly and carries a high degree of performance and reliability, RapidNet is the ideal solution for mission critical data centers, temporary networks, and disaster recovery planning.
|
|
|
HellermannTyton’s rack mount fiber enclosures are the ideal direct termination and splice solution of LAN applications capable of supporting up to 192 fibers. While offering easy-to-use front slide-out trays for easy access to connections, enclosures are equipped with cable management and cable routing accessories to limit bend radius and add strain relief control. HellermannTyton’s Rack Mount Fiber Enclosures easily fit into 19” or 23” racks.
|
|
A complete offer of chassis will cover all needs:
Industrial Rack Mount Chassis 4, 8, 14 or 20 slots with different combinations ISA/PCI.
Industrial Rack Mount Chassis with different height: 1U, 2U, 4U, 5U, 6U or 8U. Available with LCD screen
POwer supply 150W in 500W AT / ATX / AT-
Function PFC - verbose power supply- Power supply " hot-swappable ",... Chassis with tolerance of breakdown,control of machines, control of temperature, indicators of states in front panel, management of aeration,...
|
|
Driver Bays 2 x 5.25ff Bay, 2 x 3.5ff Bay
System Control Power Switch button, Reset button, Keyboard-Lock button
System Cooling Fan 1 x cooling fan(optional)
Power Supply Support ATX/PS/2 Power supply
Vibration 0.5g rms/5`500Hz/random operation
EMC CE/FCC Class B
Construction 1.2mm galvanized Heavy duty steel
Operating Temperature 0Ž`50Ž
Operation Humidity 5%`95%, 40Ž, no condensing
Dimensions 482mm ~ 450mm ~ 177mm (W~D~H)
|
|
Dimensions acc. to IEC 60297 or IEEE 1101.1, Aluminum or sheet steel versions, up to superior EMC level. Large selection of assembly options.
|
|
europacPRO
- 19’’ subrack
- With high flexibility
- EMC shielding can be retrofitted
- Fully IEEE 1101.1 compatible
europac integral
- Subrack with integrated functions
- Simple assembly
- Cost effective alternative for high quantities
multipacPRO
- 19" chassis for horizontal board installation and non-standardized components
- Versions in aluminium or sheet steel
inpac
- 19" chassis with high mechanical stability
- Modular design for standardised board formats
- Front and rear frame Al die cast frame Al die cast
|
|
|
The KM6 family of subracks has evolved over many years as the demands of the electronics industry have changed with advances in technology. It sets the standard against which other systems are measured: the KM6 range offers an unrivalled combination of strength, versatility and configurability at cost-effective prices: additional features such as RFI protection, shock and vibration protection can easily be specified. Whether used to house equipment meeting the requirements of open architecture bus structures such as CompactPCI or VMEbus or for broadcast, medical, test or general purpose applications, one of the three main variants of KM6, supported by a huge and comprehensive range of accessories, will fit the bill. All relevant international specifications are met.
|
|
Vitaro 195
ZENITH 160
BERLIN 150
apra Line 140
Tamago 185
apraTek 180
19" enclosure system 179
|
|
3 U subrack 245
6 U subrack 245
2 U subrack 245
4 U subrack 245
7 U subrack 245
Individual Configuration 245
3 U subrack 270/271
|
|
- 4U 19'' Rackmount Industrial Chassis for IPC or Mainboard :
- Rugged design constructed in 1.2mm Heavy duty steel and
it's a cost effective solution
- One 12cm lntake cooling for excellent cooling cycle and
comes with washable air filter
- Design for various industrial computer for networking,
communication applications and related solutions
|
|
|
The BackPack plugs into the rear of the Cage and connects the PC Blades to the User Ports and the network. BackPacks, in conjunction with ClearCube software, enable PC Blade sparing and IT administrative control.
|
|
With UNIQLE, SCHÄFER is systematically implementing the principle of a cooling system integrated in the server rack. The decision for integration is a logical step.
Server space is not unlimited! And through the trend to higher and higher computer performance accompanied by a greater packaging density, server racks must assure a maximum of space efficiency. This enables
a maximum computer density per m2 floor space to be achieved.
|
|
- Door with safety lock and polycarbonate glass. Useful dimensions 660x525 mm h.
- Suitable for monitor sizes up to 21". Internal dimensions of upper compartment: 690x600x580 mm h.
- Retractable keyboard shelf Useful dimensions 620x510 mm h.
- The lower compartment can be fitted with retractable and height-adjustable shelves for housing hardware systems and printers. Internal
dimensions 690x600x720 mm h.
- Cooling fan with dust filter.
- 4 channel cable duct.
- 5 socket electrical system with circuit breaker.
- Air inlet hole with dust filter.
- Intlet hole for network cables and outlet hole for power cable.
- Room temperature for use -5/+40 °C with humidity up to 50%
- Room temperature for use -5/ 20 °C with humidity up to 90%
|
|
- A 4" base with front access makes it easy to move with a forklift or pallet-jack when required. It is also possible to add casters and have the cabinet be mobile at all times.
- The 21 ¾" x 19" glass panel is demagnetized to avoid image distortion.
- The palm rest on the keyboard drawer provides good wrist support when consulting computerized data.
- The back panel provides easy installation of your computer system
- Built-in ventilator with filter to limit dust infiltration and reduce heat, allowing you to protect your equipment.
|
|
COMPARTMENT SCREEN CPUC
Tilted roof
Front face, higher face and back face obtained in only one part for a total
sealing
Side faces: sliding panels in the slottings of 10mm of depth
guaranteeing nonthe water penetration at the time of washing
This double access right-hand side and left avoids the obstruction of the doors and the mechanical risks and facilitates the access to computer equipement
Compartiment screen CPU completely tight
COMPARTMENT PRINTER AND KEYBOARD
Access by shutter cutting down
Telescopic table, slide triple
development stainless charges 60 kg with safety position
Reserve of place mouse gun cab
|
|
Computer & Documentation Stations
These stations are built to answer the ever increasing need for
documentation and I.T on the shop floor.
Document stations come a lockable drawer and full cupboard with
optional backpanel system.
Computer stations feature slide out keyboard drawers, full
cupboards, some with sliding shelves and a choice of open or
enclosed monitor areas.
Workstations
Perfect for supervisory or general workshop use, these units combine secure
storage with a sloping worksurface.
• Solid steel construction with reinforced doors
• Lockable cupboard with 2 adjustable shelves
• Lockable drawer
• Document retaining lip
All models are supplied with fronts in epoxy powder coat RAL5015
blue as standard. red, green, mid or light grey fronts are available as
a no cost option. Housing / shelves are RAL7035 light grey.
All prices include delivery to mainland U.K and are subject to V.A.T.
Delivery time in standard blue is 2-3 weeks
|
|
|
For the best protection of PC Blades and BackPacks, ClearCube recommends using a full cabinet enclosure. Cabinets come standard with a glass door that provides protection and Blade front panel LCD visibility. Each cabinet also includes adequate space for routing User Port and Ethernet cables.
|
|
The computer cabinet is designed for protecting
computers against dust, knocks and bumps in industrial environments. The top part has an opening of 590 x 650 mm with lockable door fitted with a Plexiglas window, lockable, pullout keyboard shelf and mouse mat and a shelf.
The bottom part has an opening measurement of 590mm x 855mm with a single lockable door
|
|
|
|
