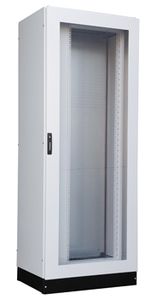

19 " Rack for Data and ICT
We have designed a smart range of 19 " rack enclosures, especially for telecommunications and data applications. We supply a completely finished and mounted enclosure to save assembly costs, all the doors can be dismounted and the main door has a rotating handle. Our wide range of manufacturing possibilities offers customised design as standard, available from 21 U to 48U or even more. The enclosure design is fully ventilated in the upper part and can even house fans inside to force ventilation within the enclosure towards the outside, conserving the electronic components inside the enclosure in perfect condition.
Given the multitude of solutions we can offer for this type of enclosure, we can easily adapt to our customers' requirements and make any proposed solution viable.
Special Solutions
• The following colours are available: Grey RAL 7035, 7032 and Graphite Grey
• Types of doors: ventilated, with slats, blind, transparent, dark.
• Customised to your requirements.
• Ventilated plinths.
• Roof with forced ventilation.
• Metal feet.
• Soundproof rack enclosures.
• Manufactured in stainless steel AISI 304 or 316. EN 14401.
• EMC protection seams between the frame and the contact surface. Guaranteeing a perfect electrical connection. EEC 89/336.Standard.
|
|
Due to the hardness of the material, we recommend using metal multi-tooth screw
SZ 2486.300 for the interior installation.
Rittal Service:
TS stainless steel (1.4301) available in protection category NEMA 4x on request – please add extension .640 to the Model No.
Material / Surface finish
Material:
Stainless steel 1.4301:
Enclosure frame, roof, rear panel and gland plates: 1.5 mm
Door(s): 2.0 mm
Mounting plate: 3.0 mm sheet steel
Surface finish:
Enclosure frame and gland plates: Bare
Door, roof and rear panel: Brushed on the outside,
grain size 240
Mounting plate: Zinc-plated
Supply includes
Enclosure frame with door(s), mounting plate, gland plates, rear panel and roof, 2 support strips fitted in the enclosure depth (only with depth 600 mm).
Protection category
IP 55 to EN 60 529/10.91, NEMA 12 is met.
|
|
Eta offers a number of RACK solutions to satisfy a majority of applications including:
19" swinging frames
19" fixed frames
19" rails
Double Hinge Boxes (CR)
- Swinging frames with solid rotation hinges are manufactured from sheet steel and offer outstanding strength and versatility. The rotation direction is reversible (left-right) and the opening angle varies according to cabinet width.
- Fixed frames are applied directly on the cabinet framework. Only for cabinet with 600 width.
- CR Box (Double Hinge)
CR Boxes have two sections. The central section is used for mounting 19" components whilst the rear section with mounting plate, can be used for assembling standard components. The front with silk-screened security glass offers excellent visibility and aesthetic. Door can be mounted left or right.
|
|
- Vertical masts, internal uprights and anchoring cross-beams in metal sheet steel, 2mm. thickness, upper and lower base 1,5mm. thickness, painted in RAL 7035 (smooth finishing)
- Tempered glass door according to UNI 7142 -(88) norm
- Rapidly removable side panels in pre-painted RAL 7035 sheet steel and protected by a key lock
- Ventilation flutes on both upper and lower areas
- Roof equipped to accept forced-air ventilation unit
- Possibility to install a second pair of 19" frames in the rear position
- Roof and base equipped with cable entry holes with sliding covers
- Ready for ground wiring
- IEC borings on 19" frame
- IP 20 protection degree according to EN 60529 norm
|
|
D-4080 Retractable Writing Shelf
D-4100 Storage Drawer
D-4454 Solid Bearing Sliding Shelf
C-7100 Ball Bearing Sliding Shelf
C-71307 Ball Bearing Shelf
D-4451 Adjustable Fixed Shelf
|
|
Eldon's Upgraded Floor Standing ElRack Patch and Server Rack Series
ElRack just got better! Not only is the "one-rack-solution" to providing a variety of different mounting possibilities a real winner with the industry, but now with the newly released accessories available, ElRack truly becomes a real trend setter! Whether you need 19", 23", 24" or ETSI (metric) requirements, the ElRack%uFFFD copes with all sizes, as standard.
Dimensions available:
- H: height from 21U (1000mm) to 48U (2200mm),
- W: width 600mm, 800mm and 900mm,
- D: depth 600mm, 800mm, 900mm, 1000mm and 1200mm.
The Elbox wall mounting range:
Boasting a fresh, appealing design, the new ElBox patch box comes in 400mm, 500mm and 600 mm deep versions. While both the 400mm and the 500mm will be supplied as knock-down or flat-pack versions, the 600 mm deep model will be delivered pre-mounted at the factory.
|
|
|
|
|
|
PE Rack Complete Cabinets - Complete Solutions for Networks and Servers
Project and Effi ciency Range with low-cost Complete
Cabinets for networks
-Models for maximum market coverage with 25 U and 43 U in
heights of 1200 and 2000 mm respectively, depths of 600, 800
and 900 mm and widths of 600 and 800 mm
-Extremely strong framework with a load bearing capacity of up
to 700 kg
-Frame can be “halved”
-High quality powder coating fi nish in light grey RAL 7035 on all
panelling components
-All panelling, such as side panels and doors, can be removed in
seconds.
-Top and bottom modules prepared for brush strips and/or
ventilators
-Doors fi tted with T-handles and locks. Can be exchanged for
pivoted handles.
-Plinths are passively ventilated, 100 mm high.
-Standard depth-adjustable 19” mounting angles
-Extremely high savings on baying solutions due to intermediate
sets
Material:
-Framework, vertical: 1mm steel sheet, multiply profi led; horizontal:
2 mm rectangular tube.
-Panelling: 1 mm steel sheet
Finish:
-High-quality powder coating in light grey RAL 7035
-Top/bottom modules, installation set for mounting angles and
19” mounting angles all galvanised
|
|
The Rosenberger-OSI „Data-Center-Rack“ has been developed especially for FO patch distributors in data centers. In data centers the requirement for highest density becomes increasingly more important than in other cabling areas. To lead the through the very high density emerging large cable volumes professional and appropriate away from the patch fields, new cable management solutions are needed.
Advantages:
- installation of single data racks
- module system
- variable side wall and rear wall doors concept
- cable management system
- accessories
|
|
Features:
- 24" width aligns with floor tiles
- Vertical cable management options for mid to high density cabling applications are simple to install and allow user to configure system to their needs
- Rack is UL listed for 1500 lbs. load rating to accommodate large networking equipment
- 6" deep vertical channel design provides distribution cable pathway
- System accessories provide maximum flexibility that allows the user to customize the rack layout
- Rack features 19" or 23" EIA mounting
- Rack space identification allows quick and easy location of rack mount items
- Full length dual and single hinged doors provide an aesthetic finish and easy access to the vertical pathway
- Top channel provides pathway for cable or ladder rack up to 18" wide
|
|
SP20 Rack
- High-grade steel cabinet (light grey RAL 7035). Profi le technology guarantees maximum stability
- Fully assembled with basic accessories
- Flexible interior - designed to accommodate all currently available IT components
- Simple to assemble and disassemble - all cabinets can be dismantled
- Accessible from all sides (removable doors and panels)
- Can be used as stationary or mobile units
- 100% modular system, can be extended at any time
- Extremely strong frame with load bearing capacity of up to 1000 kg
|
|
COMPARTMENT SCREEN CPUC
Tilted roof
Front face, higher face and back face obtained in only one part for a total
sealing
Side faces: sliding panels in the slottings of 10mm of depth
guaranteeing nonthe water penetration at the time of washing
This double access right-hand side and left avoids the obstruction of the doors and the mechanical risks and facilitates the access to computer equipement
Compartiment screen CPU completely tight
COMPARTMENT PRINTER AND KEYBOARD
Access by shutter cutting down
Telescopic table, slide triple
development stainless charges 60 kg with safety position
Reserve of place mouse gun cab
|
|
•PROTECTION & SECURITY : maintaining the best protection against dust, bumps...
•MODULARITY : large compatibility to fit every hardware change (inside is fully adjustable).
•ERGONOMICS : screen is at 1.40m height and keyboard about 1m high (best ergonomics position to work standing up).
•MOBILITY : easily movable and high stability.
•SECURITY : highly stable and 360° visibility.
DESCRIPTION :
•Steel and composite movable container.
•Very resistant (20/10 steel structure).
•Easy access to front and back panels (2 doors).
•Overpressure inside the container for best protection (filtrated air system and heat extraction).
|
|
- Door with safety lock and polycarbonate glass. Useful dimensions 660x525 mm h.
- Suitable for monitor sizes up to 21". Internal dimensions of upper compartment: 690x600x580 mm h.
- Retractable keyboard shelf Useful dimensions 620x510 mm h.
- The lower compartment can be fitted with retractable and height-adjustable shelves for housing hardware systems and printers. Internal
dimensions 690x600x720 mm h.
- Cooling fan with dust filter.
- 4 channel cable duct.
- 5 socket electrical system with circuit breaker.
- Air inlet hole with dust filter.
- Intlet hole for network cables and outlet hole for power cable.
- Room temperature for use -5/+40 °C with humidity up to 50%
- Room temperature for use -5/ 20 °C with humidity up to 90%
|
|
With a depth of 1000 mm, these cabinets are suitable also for housing very large servers.
The side panels come with ventilation flutes.
Available for both width 640 and 800 mm.
It is advisable to make use of a front and/or rear door with holes, to ensure adequate heat dispersion.
NEW!
It’s now available the special dimention 600 x 850 - 42 units, specially made for servers and to be positionned on floating floors!
WE ARE LOOKING FOR DISTRIBUTORS AND AGENT IN FREE AREAS, IF YOU ARE INTERESTED CONTACT US
|
|
Absolutely new , workable for small and medium offices where you cannot place a standard Server Rack 19" Cabinet due to space.
Dim. 600Lx1000Px650 12 Units
Code : MAGN1062 Colour Black Ral 9005
With this new solution you can solve all space problems in office , can contain also Servers with 800 depth.
This cabinet can be placed or under desk or in a corner of the office without be in the way , with a very nice styling .
Contact us for more information
We are also looking for Distributors and Agent for free areas, if you are interested contact us
|
|
With UNIQLE, SCHÄFER is systematically implementing the principle of a cooling system integrated in the server rack. The decision for integration is a logical step.
Server space is not unlimited! And through the trend to higher and higher computer performance accompanied by a greater packaging density, server racks must assure a maximum of space efficiency. This enables
a maximum computer density per m2 floor space to be achieved.
|
|
- A 4" base with front access makes it easy to move with a forklift or pallet-jack when required. It is also possible to add casters and have the cabinet be mobile at all times.
- The 21 ¾" x 19" glass panel is demagnetized to avoid image distortion.
- The palm rest on the keyboard drawer provides good wrist support when consulting computerized data.
- The back panel provides easy installation of your computer system
- Built-in ventilator with filter to limit dust infiltration and reduce heat, allowing you to protect your equipment.
|
|
Computer & Documentation Stations
These stations are built to answer the ever increasing need for
documentation and I.T on the shop floor.
Document stations come a lockable drawer and full cupboard with
optional backpanel system.
Computer stations feature slide out keyboard drawers, full
cupboards, some with sliding shelves and a choice of open or
enclosed monitor areas.
Workstations
Perfect for supervisory or general workshop use, these units combine secure
storage with a sloping worksurface.
• Solid steel construction with reinforced doors
• Lockable cupboard with 2 adjustable shelves
• Lockable drawer
• Document retaining lip
All models are supplied with fronts in epoxy powder coat RAL5015
blue as standard. red, green, mid or light grey fronts are available as
a no cost option. Housing / shelves are RAL7035 light grey.
All prices include delivery to mainland U.K and are subject to V.A.T.
Delivery time in standard blue is 2-3 weeks
|
|
|
For the best protection of PC Blades and BackPacks, ClearCube recommends using a full cabinet enclosure. Cabinets come standard with a glass door that provides protection and Blade front panel LCD visibility. Each cabinet also includes adequate space for routing User Port and Ethernet cables.
|
|
Machine tool cabinets offer high storing capacity on a small footprint; they require little storage space and reduce installation costs.
Tools and operating materials are stored directly on location. Machine tool cabinets can ensure value conservation and effortless use of the valuable stored goods in the very best way. The cabinets are available with hinged or sliding doors
|
|
SP54 Rack
- High-grade steel cabinet (light grey RAL 7035, black RAL 9005). Profi le technology guarantees maximum stability
- Fully assembled with basic accessories
- Flexible interior − designed to accommodate all currently available IT components
- Simple to assemble and disassemble − all cabinets can be dismantled
- Accessible from all sides (removable doors and panels)
- Can be used as stationary or mobile units
- 100% modular system, can be extended at any time
- Extremely strong frame with load bearing capacity of up to 1000 kg
- Protection rating: IP54, all-round sealing
|
|
- The most up-to-date cabinet solutions for all standard server and network components even for combinations of components from
different manufacturers
- Maximum assembly range: 900 mm deep, 600 mm wide
- Maximum security: side panels attachable/detachable with lock,
doors with pivoted handle and lock
- Optimum ventilation (active or passive)
- Simple to assemble and disassemble − all cabinets can be dismantled
- Mobile or stationary application possible
- In light grey RAL 7035 or black RAL 9005, inc. accessories in black
- Extremely strong frame with load bearing capacity of up to 1000 kg
|
|
|
|
|
|
Application
Designed deeper to house servers and manage power cables, PROLINE® FLOTEK™ Cabinets rely on optimized passive airflow for thermal management. The cabinets may be placed in data rooms randomly or in hot/cold aisle configurations.
Features
• Rigid front door made of aluminum extrusions and formed perforated steel offers highly attractive appearance and durability
• Fully perforated front and rear doors and fully perforated top allow maximum air movement around equipment; conforms to server manufacturer open space requirements
• Models without sides fit together quickly for easy installation in ganged applications
• Three-point locking pushbutton swing handle on front door provides easy but controlled access; two keys included
• Rear doors are split for easy access and include 3-point, low-profile, locking swing handle
• Two sets of 19-in. square-hole rack angles support both front and rear of equipment
• Rack angles are infinitely adjustable from front to rear for positioning flexibility
• Large gland plate in top allows easy routing of cable, pre-terminated cables and patch panels
• Mounting hardware (20 each of 10-32 screws and cage nuts) is included
Specifications
• 16 or 14 gauge steel doors, sides and cover
• Welded 12 gauge steel frame
• Rack angles have square holes with EIA 310-D spacing
• Open bottom with integral bolt-down brackets
Finish
Phosphatized steel coated with RAL 9005 black textured, low-gloss polyester powder paint. Other finishes available—contact Hoffman Customer Service.
Patents
|
|
Project and Effi ciency Range with low-cost
Complete Cabinets for networks
- Models for maximum market coverage with
43 U in heights of 2000, depths of 800 and
widths of 800 mm
- Extremely strong framework with a load
bearing capacity of up to 700 kg
- Frame can be "halved"
- High quality powder coating fi nish in light
grey RAL 7035 on all panelling components
- All panelling, such as side panels and doors,
can be removed in seconds
- Top and bottom modules prepared for brush
strips and/or ventilators
- Doors fi tted with T-handles and locks. Can be
exchanged for pivoted handles
- Plinths are always passively ventilated,
100 mm high
- Standard depth-adjustable 19" mounting
angles
- Extremely high savings on each baying solution
Material:
- Framework, vertical: 1mm steel sheet, multiply
profi led;
- Horizontal: 2 mm rectangular tube.
- Panelling: 1 mm steel sheet
|
|
The computer cabinet is designed for protecting
computers against dust, knocks and bumps in industrial environments. The top part has an opening of 590 x 650 mm with lockable door fitted with a Plexiglas window, lockable, pullout keyboard shelf and mouse mat and a shelf.
The bottom part has an opening measurement of 590mm x 855mm with a single lockable door
|
|
. Management of the cables
. Modularity and Flexibility
. Capacity of resistance to the load up to 1.350 kg
. Invisible circulation of the cables
. 10 years guarantee
|
|
Standard PCs are increasingly used as control systems for machines, complex plants and installations. Protecting the main PC unit and the peripherals, e.g. printer and keyboard, from illegitimate access and from sources of pollution is the purpose of the PC Enclosure range. These systems conform to common safety requirements and provide the standard of easy and comfortable operation that has come to be expected. They also feature a range of concepts for heat dissipation.
- powder coated RAL 7032, front doors painted 7023
- robust industrial design
- complete pre-installation (ready for use upon delivery)
- front with three compartments, full-size door on back
- roof plate screwed tight (optionally raised, meeting IP 23)
- two-part bottom gland plate, 1/3 and 2/3, with patented rubber profiles for cable entry
- two mounted device carrier plates included in standard supply
- one pair of side panels also pre-installed
- multiple cable entry options
- appealing design
|
|
Everyone talks about the future, but Rittal helps shape it – and that includes the field of climate control.
Development work focuses on the holistic protection of process control with the minimum possible energy consumption.
Modern cooling units with excellent efficiency and perfect interface technology, together with liquid cooling concepts, offer fresh new perspectives for the correct cooling of electronic components. This is crucial to the availability and reliability of machinery and IT technology.
For this reason, Rittal collaborates closely with you to develop customised climate control concepts.
|
|
A frontal frame is mounted on the standard ARETA cabinet to form the
basis of this PC cabinet assembly.
|
|
|
|
