| Plant and mechanical engineers are responsible for ensuring personal safety. The center safety products of elobau range from sensors and evaluation units for small machines to bus components for large plants. The personnel of elobau GmbH offers support with the implementation of the latest safety guidelines. |
|

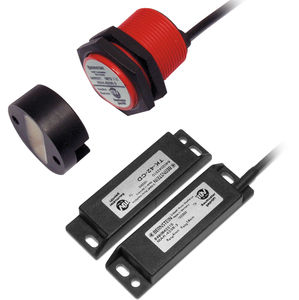

The PXS or PSS type products are sensors designed to control the opening of protective devices, machine casings and access professional doors.
Associated with their respective coded magnet and a controller module, they are capable of monitoring 1 or more "O" contacts
(break, closed with a magnet) and/or 1 or more "C" contacts (make, closed with a magnet). They meet the "CE" directives and
European regulations relating to machine conformity as per the standards EN60204 - EN1088 - En 954 and be covered by the
categories 1 to 4 of these standards according to the associated module (CETIM certificate).
Safety functions performed thanks to :
- Tamper-proof: the sensor, associated with its coded magnet, reduces the possibility of tampering ; a standard magnet cannot
actuate the sensor .
- Redundancy: the components are redundant. If part of the sensor fails, the redundant circuit continues to operate.
- Unbalance: associated with a controller module which checks the unbalance of the signals from the sensor, the first fault is
signaled if the switches are not actuated in the right order
Magnetic protection sensors represent an alternative to mechanical position switches in the following cases :
- Mechanical clearance required to overcome alignment or vibration problems,
- Compulsory complete sealing: industrial, food and mechanical environments,
- Longer lifetime and reliability. |
|
Eden is a new non-contact sensor using dynamic signal transmission. The sensor operates to category 4 according to EN 954-1 and has an extended sensing distance. Several Eden sensors and light beams can be connected in the same safety circuit and dynamically monitored by the Vital safety module.
We also offer several other types of interlocking devices. The Emergency Stop Grab Wire protection switch JSNY10 provides 'emergency shutdown' up to 25 metres. |
|
BNS range magnetic safety detection serve to monitor the position of sliding, hinged and removable safety guards. Sensors without integral evaluation can only be used for safety duties to DIN VDE 0660-209 in combination with a safety guard monitor of the AES / AZR range for protection up to Control Category 4 to EN 954-1, see chapter 10.2.
The use of magnetic safety sensors is of particular advantage in cases where extremely dirty conditions can occur or high hygienic standards need to be maintained. This is provided by the simplicity of cleaning the units.
A further advantage is the facility for concealed mounting under non-magnetic materials. Working surfaces and storage areas can be arranged without the need for dust-collecting edges or other functionally required cut-outs or projections.
BNS range magnetic safety sensors can also be used in cases where a precise approach is not possible and greater tolerances are required.
Schmersal make both standard and AS-i Safety at Work magnetic safety sensors.
Click here to see the AS-i models Or for the standard models click below |
|
| The industry's most complete line of contact and non-contact products. GE Security Industrial safety interlock switches are used to detect the opening of guards-including professional doors, gates and/or removable covers-that prevent access to dangerous parts of a machine, and to help deter tampering with the guards or the internal machine controls. As with all GE Security Industrial 300-BT products, the safety interlock switches are in full compliance with the most current and required standards. These include IMQ, CE, VDE, UL, CSA, IEC, EN and Semi S2 standards. |
|
PSEN sensor technology, Safety for man and machine
Protection switches ... for safety gate and position monitoring :
Hazardous machine movements must be stopped when a guard is opened. It must not be possible to either defeat or manipulate these guards. PSEN safety switches meet this requirement and are therefore suitable for monitoring gates in safety fences for safety zones, for example.
Safety manufacturer of bolt ... for safety gates in a rugged everyday industrial environment :
For safety gates that are difficult to adjust or in areas where safety gates are often opened and closed, protection must be provided against defeat and manipulation, but a long material service life must also be guaranteed. PSENbolt provides a complete solution, comprising safety switch, handle and bolt.
Safe industrial camera systems : to monitor two-dimensional (2D) or three-dimensional (3D) zones. |
|
| Stricter safety regulations, and the need for tamper-proof safety at work, now make modern protection switches indispensable. Interlock expertise from SICK opens up numerous new opportunities for use. |
|
Bumpers ASTEEL SENSOR are complete electric systems of safety, which integrate a sensor, sensitive to a force of actuation, as well as an enclosure of self-checking.
Sensitive bumpers ASTEEL SENSOR are particularly adapted for the applications such as: wire-guided industrial carts, suppliers of forklift trucks, installations with automatic displacement, gantry cranes.
Choice ASTEEL SENSOR:
- System independent of the atmospheric pressure, the temperature and the vibrations.
- Technique with 4 yarns to ensure the redundancy of the chain of safety
- Possibility of connecting several devices sensitive to the same enclosure of self-checking.
- Models available with standard dimensions or to measure. |
|
ASTEEL SENSOR's sensitive edges are complete safety electric systems which integrate a sensor and an automatic control module.
ASTEEL SENSOR's sensitive edges are particularly fit in with applications such as : elevating platforms, without driver transport systems, machines' automatic doors, professional presses
The ASTEEL SENSOR choice :
- The system is independent from atmospheric pressure, temperature and vibrations.
- A 4 wires technology ensures the redundancy of the safety chain
- Possibility to connect several sensitive edges on the same automatic control module.
- Sensitive edges are available either with standard dimensions or on-measure according to your specifications |
|
ASTEEL SENSOR's sensitive industrial mats are complete safety electric systems which integrate a sensor and an automatic control module.
ASTEEL SENSOR's mats are particularly fit in with applications such as : industrial robots, machines, assembling lines, vertical storage warehouses.
The ASTEEL SENSOR choice :
- The system is independent from atmospheric pressure, temperature and vibrations.
- A 4 wires technology ensures the redundancy of the safety chain
- Possibility to connect several sensitive mats on the same automatic control module.
- Sensitive mats are available either with standard dimensions or on-measure according to your specifications |
|
| Plant and mechanical engineers are responsible for ensuring personal safety. The center safety products of elobau range from sensors and evaluation units for small machines to bus components for large plants. The personnel of elobau GmbH offers support with the implementation of the latest safety guidelines. |
|
The PXS or PSS type products are sensors designed to control the opening of protective devices, machine casings and access professional doors.
Associated with their respective coded magnet and a controller module, they are capable of monitoring 1 or more "O" contacts
(break, closed with a magnet) and/or 1 or more "C" contacts (make, closed with a magnet). They meet the "CE" directives and
European regulations relating to machine conformity as per the standards EN60204 - EN1088 - En 954 and be covered by the
categories 1 to 4 of these standards according to the associated module (CETIM certificate).
Safety functions performed thanks to :
- Tamper-proof: the sensor, associated with its coded magnet, reduces the possibility of tampering ; a standard magnet cannot
actuate the sensor .
- Redundancy: the components are redundant. If part of the sensor fails, the redundant circuit continues to operate.
- Unbalance: associated with a controller module which checks the unbalance of the signals from the sensor, the first fault is
signaled if the switches are not actuated in the right order
Magnetic protection sensors represent an alternative to mechanical position switches in the following cases :
- Mechanical clearance required to overcome alignment or vibration problems,
- Compulsory complete sealing: industrial, food and mechanical environments,
- Longer lifetime and reliability. |
|
Eden is a new non-contact sensor using dynamic signal transmission. The sensor operates to category 4 according to EN 954-1 and has an extended sensing distance. Several Eden sensors and light beams can be connected in the same safety circuit and dynamically monitored by the Vital safety module.
We also offer several other types of interlocking devices. The Emergency Stop Grab Wire protection switch JSNY10 provides 'emergency shutdown' up to 25 metres. |
|
BNS range magnetic safety detection serve to monitor the position of sliding, hinged and removable safety guards. Sensors without integral evaluation can only be used for safety duties to DIN VDE 0660-209 in combination with a safety guard monitor of the AES / AZR range for protection up to Control Category 4 to EN 954-1, see chapter 10.2.
The use of magnetic safety sensors is of particular advantage in cases where extremely dirty conditions can occur or high hygienic standards need to be maintained. This is provided by the simplicity of cleaning the units.
A further advantage is the facility for concealed mounting under non-magnetic materials. Working surfaces and storage areas can be arranged without the need for dust-collecting edges or other functionally required cut-outs or projections.
BNS range magnetic safety sensors can also be used in cases where a precise approach is not possible and greater tolerances are required.
Schmersal make both standard and AS-i Safety at Work magnetic safety sensors.
Click here to see the AS-i models Or for the standard models click below |
|
| The industry's most complete line of contact and non-contact products. GE Security Industrial safety interlock switches are used to detect the opening of guards-including professional doors, gates and/or removable covers-that prevent access to dangerous parts of a machine, and to help deter tampering with the guards or the internal machine controls. As with all GE Security Industrial 300-BT products, the safety interlock switches are in full compliance with the most current and required standards. These include IMQ, CE, VDE, UL, CSA, IEC, EN and Semi S2 standards. |
|
PSEN sensor technology, Safety for man and machine
Protection switches ... for safety gate and position monitoring :
Hazardous machine movements must be stopped when a guard is opened. It must not be possible to either defeat or manipulate these guards. PSEN safety switches meet this requirement and are therefore suitable for monitoring gates in safety fences for safety zones, for example.
Safety manufacturer of bolt ... for safety gates in a rugged everyday industrial environment :
For safety gates that are difficult to adjust or in areas where safety gates are often opened and closed, protection must be provided against defeat and manipulation, but a long material service life must also be guaranteed. PSENbolt provides a complete solution, comprising safety switch, handle and bolt.
Safe industrial camera systems : to monitor two-dimensional (2D) or three-dimensional (3D) zones. |
|
| Stricter safety regulations, and the need for tamper-proof safety at work, now make modern protection switches indispensable. Interlock expertise from SICK opens up numerous new opportunities for use. |
|
|
|
