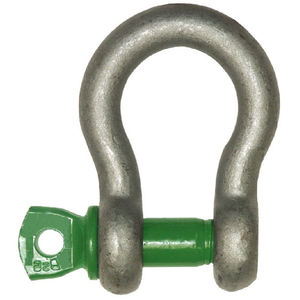

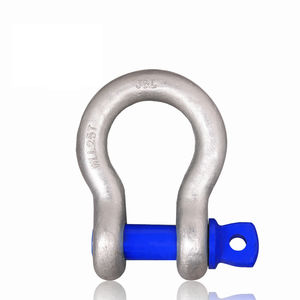

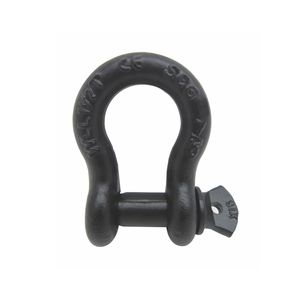

screw pin anchor shackle.

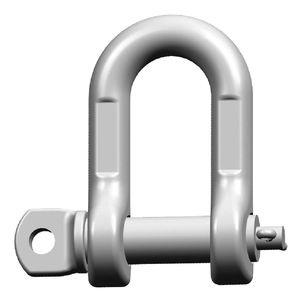

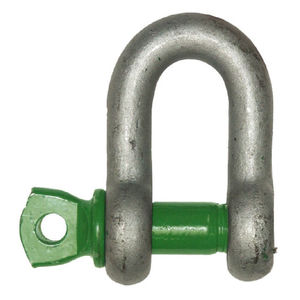

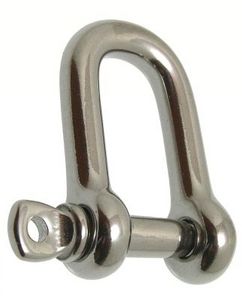

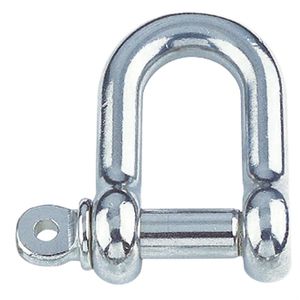

screw pin chain shackle
Round pin Chain shackle
Round pin anchor shackle

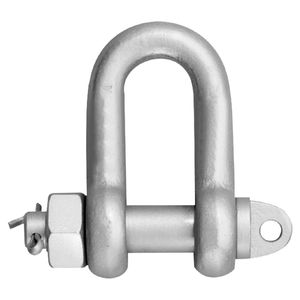

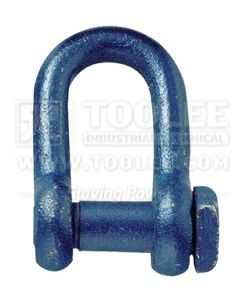

bolt type chain shackle

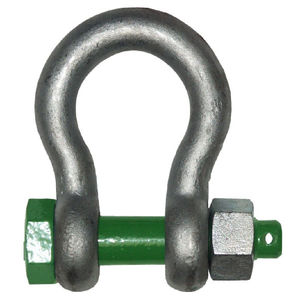

bolt type anchor shackle
commercial type steel shackle
BS large bow shackle
BS large Dee shackle
Safety Type Grade S Bow Shackle
Commercial Carbon steel shackle DEE & BOW Shackle
forge shackle, alloy pin, whold forged, heat treated.
Shackles are used in a variety of lifting, pulling, and tie down applications. |
|
~ Excellent for special applications where standard shackle cannot provide adequate reach
~ Available self colored and painted orange
~ Screw pin style
~ M7152 -3/4" size, 4.56" reach, 10,000 lbs. working load limit
~ M7154 - 1" size, 5.50" reach, 19,000 lbs. working load limit
~ M7157- 1-1/2" SIZE, 7.00" reach, 34,000 lbs. working load limit |
|
~ All shackles meet or exceed Federal Specification RRC-271D
~ Working Load Limit and Traceability codes shown as permanent marking on body and pin
~ Available in painted, galvanized and self-colored finishes (Dacromate coating upon special request only)
~ All shackles have alloy quenched and tempered pins
~ Shackles made from technically advanced microalloy material
~ Load break tests consistently show microalloy outperforms quenched and tempered carbon material |
|
Button Handle (Metric)
Kwik-LokTM Pins are manufactured in a wide range of sizes to meet any application. We offer short lead times for special sizes. Available in 5 handle styles, inch or metric, and in carbon steel and stainless steel. Button Handle configuration is ideal for applications that have limited space.
Handle is black anodized, machined aluminum.
Button is blue anodized aluminum.
Material: Carbon Steel or Stainless Steel
Handle Finish: Black anodized
Includes a ring for easy attachment of option lanyard. |
|
Heavy Duty Button Handle (Metric)
Kwik-LokTM Pins are manufactured in a wide range of sizes to meet any application. We offer short lead times for special sizes or features. Available in various handle styles, inch or metric sizes, and in carbon steel and stainless steel. Button Handle configuration provides a firm, even grip for smooth comfortable operation.
Heavy Duty solid handle provides additional impact resistance.
Material: Stainless Steel provides additional corrosion resistance
Handle Finish: Stainless Steel
Meets or exceeds NASM 23460 specifications
Includes a ring for easy attachment of option lanyard.
2D, 3D, 3D solid model drawings available for download. |
|
Double Acting T-Handle (Metric)
Double Acting Pins are activated by push or pull motion
All stainless steel construction provides additional corrosion resistance
Ideal for quick insertion and removal
Four ball options available upon request
Meets or exceeds NASM 23460 specifications
Meets or exceeds design specifications MS17988, MS17989, MS 17990
Drive Out feature available upon request |
|
Ball type pins
The ball type pins are used for all applications requiring the hand to be quickly removed after insertion or shifting.
The ball type pins are fitted and removed quickly, without tools and using one hand only.
Numerous dimensions are available in metric or American units.
5 types of head are available: T or L shapes, knob, protected knob or ring.
|
|
