The role of humidity calibrations that are accurate, reproducible, and documentable is becoming more and more important. The humidity calibrator HUMOR 20 developed by E+E is the ideal reference instrument for these requirements and is traceable to international standards. The HUMOR 20 can be used in the humidity range of 10-95% RH both for monitoring cylindrical sensors and also for monitoring instruments with cubic dimensions.
Based on its operating principle, the HUMOR 20 can be used under typical conditions in a laboratory climate. For operation HUMOR 20 requires only distilled water, filtered oil-free air with a pressure of 10 bar and a power supply between 90-230V AC.
The operation of the HUMOR 20 is based on a fundamental two-pressure process and thus is similar to instruments used in national bureaus for standards.
|
|
Humidity standards SAL-T
- Multi applicable
- High accuracy and repeatability
- Simple handling
- Available for the complete measuring range
- Long product life
Humidity standards based on saturated salt solutions in plastic tablets with humidity-permeable membrane for multi-use. The salts generate a defined air humidity in the temperature range of 15...30°C which flows out of the tablet through the permeable membrane inside the measuring chamber and generate there a defined and stable humidtiy environment.
This established method of humidity generation is very precise and has an excellent repeatability.
|
|
|
|
|
|
Laboratory volume standard Seraphin Test Measures
Laboratory Measures Series C: Bottom Drain Slicker Plate Measures
These small drain bottom measures are designed specifically for accurate testing of small meters and testing the accuracy of other measures in a metrology laboratory. Specifications and outstanding features include a neck that is machined perpendicular to axis so that excess liquid can be sheared off by sliding a slicker plate across the top of the neck; a stainless steel quick closing butterfly drain valve and an overflow trough.
High Accuracy Neck Series M: Bottom Drain Graduated Neck Measures
These small drain bottom measures are The "High Accuracy" type neck has at least 1.5% of the prover volume and a smaller diameter to achieve greater neck volume resolution. This Series M Prover has all the outstanding features of the Series J. Due to the greater resolution it is a favorite of laboratory meterologists. Seraphin® Series M provers come standard with a three piece S/S ball valve. Our Series M & C provers are sent to a NVLAP facility for calibration to assure NIST traceability with uncertainty values. Other types of calibration are available.
|
|
|

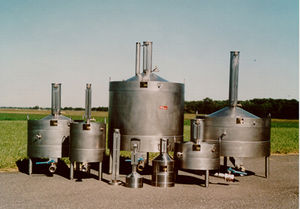

Moving up in the heavyweight class, Seraphin® produces heavy duty provers for testing tank trucks, containers, testing tanks and large volume meters. These are all made with the same accuracy and attention to detail and quality as the smaller test measures. A prover has a bottom drain and a graduated neck . Seraphin® provers are easy to use, reliable, and low cost way to measure the output accuracy of liquid metering equipment. All Seraphin® provers are manufactured of type 300 Stainless Steel eliminating the interior coating required of carbon steel models and therefore are corrosion resistant over an indefinite period of time. Many Seraphins® are still in use after decades of use. They are built and calibrated to the latest OIML R-120, Measurement Canada, API and NIST handbook 105-3 standards. Seraphin's® provers are used world wide and are considered the de-facto leader in the industry.
|
|
|
|
|
|
Portable Multi-Function Calibrator LEC 200
Source & Read of Thermocouples (TC), Resisance Thermometers (RTDs), Current (mA), Voltage (V), Resistance (Ohm) and Frequency (Hz). Source of pulse trains. Read of Pressure (with optional pressure modules).
The Multi-Function Calibrator LEC 200 provides a feature set unmatched in high accuracy (up to ±0,015% of reading), hand-held calibrators in its price range. The LEC 200 provides the functions and accuracy associated with fixed installation, laboratory instruments, and has everything needed for virtually any calibration trask. The handling of the LEC 200 is very easy. Arrow keys, direct numeric keypad entry, and three software-driven function buttons, plus a large backlit, menu-driven graphics display combine to provide a highly intuitive, simple yet powerfull operator interface.
Build-in 250 Ohm resistor for HART(TM) compatibility, 24 V loop power supply, compatibility with smart transmitters and PLCs, full fuseless protection, and a serial communication port for full control with ASCEE comands, are just some of the additional features that make the LEC 200 the single, most indispensable tool available for virtually any calibration task. The LEC 200 is supplied in a rugged rubber boot.
|
|
Applications
- Calibration service companies/service industry
- Instrument and control workshops
- Industry (Laboratories, workshops und production)
- Quality assurance
Special Features
- Highest accuracy in class up to ± 0.015 % of reading
- Source/Read thermocouples (13), resistance thermometers (13), ohms, current, voltage, frequency and pulse trains (only source)
- Isolated mA/V read-back circuit for complete transmitter calibration
- Programming of setpoints to speed up calibration tasks
- Entry of custom resistance thermometer coefficients
Remarks
- Internal 24V loop power
- Intuitive, easy handling
- Built-in 250Ω HART™ resistor
- Pressure module communication port
- Shock protected case, rugged design
|
|
The 740 series Documenting Process Calibrators are rugged,handheld tools for the calibration and troubleshooting of process control instrumentation.
Calibrators as versatile as you need them to be.
741B: A complete documenting calibrator
743B: More memory, plus a PC interface and data logging
744: Get HART-ability
|
|
HUMOR 20
High-precision humidity calibrator
The role of humidity calibrations that are accurate, reproducible, and documentable is becoming more and more important. The humidity calibrator HUMOR 20 developed by E E is the ideal reference instrument for these requirements and is traceable to international standards. The HUMOR 20 can be used in the humidity range of 10-95% RH both for monitoring cylindrical sensors and also for monitoring instruments with cubic dimensions.
Based on its operating principle, the HUMOR 20 can be used under typical conditions in a laboratory climate. For operation HUMOR 20 requires only distilled water, filtered oil-free air with a pressure of 10 bar and a power supply between 90-230V AC.
The operation of the HUMOR 20 is based on a fundamental two-pressure process and thus is similar to instruments used in national bureaus for standards.
|
|
|
|
|
|
The Opti-Cal is a stand-alone benchtop calibrator for RH sensors providing humidity and temperature profiling. The system comprises a humidity and temperature controlled chamber that can house up to five humidity sensors at a time. The Opti-Cal has an in-built, traceable cooled mirror reference hygrometer to closely control and continuously monitor the dew point temperature within the chamber. The temperature is monitored with a Pt100 probe for highest accuracies. The OptiCal automatically converts the measurements for RH accuracies.
Opti-Cal can provide local calibration of RH sensors, without relying on having to send them away to a traceable laboratory or contract on-site calibration services. Opti-Cal will provide calibrations that are directly traceable to International Standards over a wide relative humidity range and at any set temperature from 10°C to 50°C. The Opti-Cal works by time proportioning the flows of dry and saturated air according to the pre-selected relative humidity value.
The saturator assembly can be easily filled with distilled water in the reservoir at the front of the unit and the desiccator can easily be re-charged by heating when required.
|
|
Vaisala Humidity calibrator HMK15
- Easy and reliable calibration of humidity probes and transmitters
- Based on saturated salt solutions
- Suitable for laboratory use and on-site checks
|
|
SnapshotTM TIM Tester
By using an appropriate cable accessory kit, our SnapshotTM for Windows* CE portable data collector can be used to verify and configure Trendmaster® Pro systems, allowing field testing and diagnostics of system components such as cables, transducers, and TIMs. A TIM Tester can operate as a single-purpose device, or it can be combined with other available Snapshot CE functions such as vibration data collection/analysis and machinery balancing.
|
|
Simply powerful intrinsically safe calibration tool
Two channel simultaneous source and measure capability for calibration of transmitters, Power transmitters with internal loop
supply, Store frequently--used test setups for later use, Pressure measurement to 3,000 psi//200 bar using anyof the 8 intrinsically safe ecom 700PEx Pressure Modules, Pressure switch test function to capture set,reset and deadband values.
|
|
The AMC910 calibrator offers laboratory grade accuracy, high performance and simple-to-use functionalities. With the optional external pressure modules, the system may be taylored to address all possible calibration needs.
Signal calibration capabilities of the JOFRA AMC910 include, current, voltage and resistance. In temperature mode, the unit can read and source any of 11 types of thermocouples and 9 RTD types as well as YSI-400 and Ohms for non-standard curves. In pressure mode, the instrument operates with all JOFRA APM modules and covers pressure ranges from vacuum to 700 bar / 10,000 psi.
Isolated Measurement Channel
The JOFRA AMC910 features a fully isolated measurement channel which allows the user to calibrate process transmitters and signal isolators.
|
|
PASCAL LAB – ET, touch-screen multifunction calibrator for lab applications dedicated to the measurement/generation of electrical signals/temperature:
- modular configuration: up to 2 input and 2 output modules for both generation and measurement of the electrical signals ( mA, mV, V, Hz, ohm, Pulse) /temperature (TC e RTD)
- -uncertainty up to 0,008% rdg.
-display touch-screen with 4 variables simultaneously indicated
- huge memory, bi-direction and real-time communication to PC
-large memory storage for the calibration procedures, data and reports
|
|
The ecom MCAL 4200 Multi-Function Calibrator provides a feature set unmatched in high accuracy,hand-held calibrators in its price range.The MCAL 4200 Calibrator provides the functions and accuracy associated with fixed-installation,laboratory instruments,and has everything needed for virtually any calibration task.Measure and source thermocouples,RTDs,current,voltage, and frequency,and source pulse trains.
|
|
The Memocal 2000 is a lightweight, versatile, portable, hand-held calibrator developed for use in both field and laboratory calibration
maintenance, quality control and process simulation.
- Very low temperature drift (0.1Vµ°C)
- Accuracy: 0.015% of span
- Power supply: standard AA size battery (Alkaline, NiCd or Ni-MH)
- Measurement & generation of TC (15 types), RTD, linear and ohms signals
For field calibration the Memocal 2000 offers: compact size, long battery life, easy to use interface, low temperature drift, high noise immunity
and simple programming capabilities.
For laboratory calibration the Memocal 2000 offers: digital interface to data loggers or supervision and control systems, large range of I/O
capabilities, high accuracy and stability over time.
|
|
|
|
|
|
PASCAL: Portable Advanced Touch-Screen Multifunction Calibration Station
PASCAL 100, the most powerful and user-friendly calibration station:
- modular configuration: up to 2 input and 2 output modules for the electrical signals/temperature , up to 6 pressure sensors
- large memory storage for the calibration procedures, data and reports
- wide touch-screen display with 4 variables simultaneously indicated
- high resolution and high accuracy: up to 0,01% for pressure, 0,008% for the electrical signals
- suitable for process instrumentation calibration as well as process calibrator units
- real-time bi-directional communication to PC
- fast and easy maintenance through the input & output plug-in modules and recalibration procedures
SPECIAL APPLICATIONS
1.avionic engineering units available for avionics/military applications
2.turbine control through the pulse generation and counter functions
3.flow computer control through the simultaneous combination of the input channels
4.thermo-elements calibration through the comparison method: two simultaneous measure channels required
|
|
Application
The range of application for the high-precision resistance decades type 1408 and 1409 stretches from reference standard for precision measurements up to simulation of a host of measuring transducers.
The field of application of the precision decade type 1406/07 reaches from general precision measuring to simulation of a variety of measuring transducers, such as for example strain gauge transducers, resistance thermometers, hygrometers and others.
The type 1405 tests and calibrates quickly and easily displays, in control and process technology which is working on a resistance thermometer basis.
|
|
|
|
|
|
The ASC300 is substantial enough to cover all your needs for a process signal calibrator with superior accuracy and compact enough to fit into your tool box and operate with one hand for easy field calibration. The ASC300 can change your entire calibration regimen for signal, pressure, and temperature. You can combine this versatile calibrator with the JOFRA APM external pressure modules or a JOFRA dry-block calibrator to meet your calibration needs.
The JOFRA ASC300 offers simutaneous input and output. This means that you can calibrate and adjust a temperature transmitter on the table with no other necessary instruments.Output the sensor signal and input the mA from the transmitter. If you select mA Loop the JOFRA ASC300 will also supply the 24 VDC for the loop. In the display you will see both your output temperature and the return mA from the transmitter. Enter the zero and full scale values and you can make quick 25% steps or go direct to zero or full span values. The JOFRA ASC300 has dedicated keys for this operation so adjustment on the transmitter is made easier.
|
|
Introduction
Beamex's range of portable MC-calibrators for field calibration is known for their accuracy, versatility and also for meeting both high and uncompromised quality standards. Accuracy is assured when you decide to buy any of Beamex's portable MC-calibrators, because they all come with a traceable, accredited calibration certificate.
Benefit from using Beamex calibrators:
* Very high accuracy
* Simple to use
* All-in-one functionality
* Robust casing
* Customization possibilities
* Extensive after-sales services
|
|
|
|
|
|
Pascal ET is the most advanced portable multifunction calibrator for the measurement and simulation of the following parameters:
- Electrical signals (mA, mV, V, Ώ)
- temperature (TC and RTD)
- frequency & pulse
- Vacuum/ Pressure (by External Pressure Sensors)
Main Features:
- MORE CHANNELS COMPARED TO ANY OTHER CALIBRATOR : up to 4 channels thanks to the 2 INPUT and 2 OUTPUT .
It is the only calibrator available on the market with 4 independent channels
- 24 Volt as additional independent channel
- WIDER RANGES FOR ELECTRICAL SIGNALS in measurement & generation
- POSSIBILITY TO GENERATE & MEASURE FREQUENCY AND PULSE
- MORE RTD and TC SIGNALS available
- HIGHER ACCURACY: up to 0,008%rdg for Electrical Signals and up to 0,015% f.s. for Pressure
- AMBIENT SENSOR for the measurement of the ambient parameters (barometric pressure, ambient temperature, RH %) and automatic transfer of these data to the calibration report
- EASIER INTERFACE thanks to the TOUCH SCREEN and simple general user interface
- EASIER MAINTENANCE through the internal recalibration procedures and the plug-in plug-out modules
Customer can do the maintenance on his own!
|
|
Scandura multifunction calibrator model B-20, well known device in the calibration field (ATEX version available), has been improved to satisfy the specific requirements of the gas plant operators.
The improvements embedded started from a detailed study led at the laboratories of Gaz de France, which have underlined some requirements specifically tied to the gas field. Major improvements concern:
- new absolute pressure transducers (internal and external);
- all the connectors have been placed on the front panel (external transducer and connectors – RS232 – battery recharger etc.);
- special metal case;
- possibility to use the instrument in extreme;
- environmental conditions without any risk of damaging due to water infiltration, mud and dust.
Provide more GAS to your calibrations!
|
|
Fluke 743B Documenting Process Calibrator "Do more, carry less"
The 743B does the work of several tools - sourcing, simulating and measuring pressure, temperature, and electrical signals in one rugged, hand-held device.
For documentation, the 743B automates calibration procedures and captures your data.
And, of course, it helps you meet rigorous standards like ISO 9000, FDA, EPA and OSHA regulations.
The 743B has a PC interface that lets you download procedures, lists, and instructions created with software-or upload data for printing, archiving, and analysis. With its expanded memory, the 743B can hold a full week of calibrations and procedures.
|
|
The Electrical Instrumentation Tester, (EIT) is ideal for testing:
• Multi-Functional Testers
• Loop Testers
• Insulation Testers
• Continuity Testers
• Multi Meters
• Voltage Indicators
• 16 & 17th Edition Instruments
EIT Features:
• Continuity Test: (resistance measured in ohms Ω)
• Voltage Test: (line AC voltage check)
• Insulation Test: (resistance in MΩ Applied Voltage 100V to 1KV)
Features cont: EIT has a LCD Display to indicate the selected test
• Loop Test: (phase to earth & P-E +1 Ω)
• RCD Test: (LCD indicates Over current and mA Trip value, RDC
Tests are 15mA/30mS, 100mA/45mS, 30mA/100mS,
10mA/150mA)
|
|
The role of humidity calibrations that are accurate, reproducible, and documentable is becoming more and more important. The humidity calibrator HUMOR 20 developed by E E is the ideal reference instrument for these requirements and is traceable to international standards. The HUMOR 20 can be used in the humidity range of 10-95% RH both for monitoring cylindrical sensors and also for monitoring instruments with cubic dimensions.
Based on its operating principle, the HUMOR 20 can be used under typical conditions in a laboratory climate. For operation HUMOR 20 requires only distilled water, filtered oil-free air with a pressure of 10 bar and a power supply between 90-230V AC.
The operation of the HUMOR 20 is based on a fundamental two-pressure process and thus is similar to instruments used in national bureaus for standards.
|
|
FEATURES:
- Precise chamber control
- Rack-mounted hygrometer
- Hygrometer utilizes primary measurement technique
- Long proven and unsurpassed humidity control system
- Highly accurate NIST traceable sensor
- Sensing system discriminates between dew and contaminants
BENEFITS:
- Reduces uncertainty
- Easy to provide NIST recertification
- Proven methodology
- Extremely stable and uniform environment
- Reliable data
- Worry-free
|
|
|
|
|
|
The fast, one-handed tool for loop checks in Ex zones
The 707Ex is an intrinsically safe loop calibrator for use in explosion endangered areas.The ecom 707Ex is certified in accordance with the ATEX directive (Ex II 2 G EEx ia IIC T4)in Zones 1 and 2.The 707Ex is also certified to operate in accordance with Factory Mutual N.I.Class 1, Division 2 areas Group A-D.
- Large display and simple,,quick-click push
rotary button for easy one-handed operation.
- Simultaneous mA and %%readout for
quick,easy,interpretation of readings.
- mA accuracy of 0.015%%
- 1 µA resolution for mA source,simulate and measure.
- Push button with 25%%steps for fast, easy linearity checks.
- 0--100%"span check ” for fast confirmation of zero and span.
- Internal loop supply,,so you can power and read a transmitter at the same time without carrying a DMM.
Measures V dc to 28 V..0--20 mA or 4-20 mA default start up modes. HART ® compatible resistance is connected in series with the loop supply for compatibility with HART communicators.
|
|
