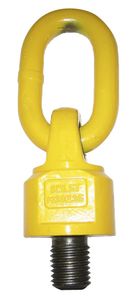

SEB or SEB C Ring / Swivel Eye Bolt
Swivel eye bolt fitted with an automatic position recovery system for optimum orientation in the direction of the sling.
Tightening by Allen key
Permits the hook to move parallel to the supporting face of the ring being drawn at 90°
From M16 to M42 as standard; for loads from 1.6 t to 12.5 t
Other variants of fitting bolts on request
|
|
ACTEK® SHR-Series - Hoist ring
Specials
- 5:1 Safety factor
- 200% proof load tested
- Serial numbers for traceability
- rotates 360° and swivels 180°
- Magnetic partical inspected
- Easy mounting, only one thread or hole is required
- also available as WKA-System for assembling the
tower segments of wind generators. With only six
hoisting units, 100% of your tower segments can be lifted.
|
|
OSR and OSR+C Ring / Outside Swivel ring
Ready to use complement to the OFT and OFT+C
The ring forms an integral part of the ensemble
|
|
|

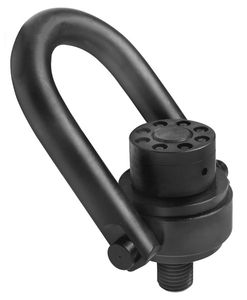

The original safety-engineered hoist ring. Pivots 180 degrees and swivels 360 degrees simultaneously to allow lifting from any direction. Safety factor = 5:1. Black oxide finish is standard, with cadmium plating available as a special. Swivel Hoist Rings are also available in 300-series stainless steel, with a load rating equal to 50% of the steel version.
|
|
Center-Pull Style Hoist Rings
Popular sized hoist rings (1/2-13 through 1-8) are offered with two or more length bolts. Use the longer lengths with softer parent materials, the shorter lengths with hard materials such as steel.
Full Swivel and Pivot Action
Rated at 5:1 Strength Factor
Material: Alloy Steel
Finish: Black Oxide
Clevis, Bolt, Pins, Base, Washer and Bushing are magnetic particle inspected
Washer: Zinc plated with gold colored conversion coating
200% Proof Tested
Drawings available in FixtureProTM CD and downloadable from the web.
|
|
- Range of movement Pivot 180º Swivel 360º
- Minimum safety factor = 5:1
- Meets military specification number MIL-STD 1365(11) or MIL-STD 209C
- 100% magnetic particle inspected
- Meets OSHA requirements
|
|
Description Safety-eye bolt
Reference 260-12-13
Please select one table row below:
D1 D3 (mm)
M12 13
M16 13
M20 16
M24 18
M30 20
M30 22
M36 22
|
|
TSR and TSR+C Ring / Triple Swivel Ring
Triple articulation allows it to line up perfectly with the sling
Allows the hook to move parallel to the supporting face of the ring being drawn at 90°
Two ways of tightening: either by open-ended spanner, or by Allen key
From M8 to M56 as standard; for loads from 0.3 t to 22 t
From UNC 3/8" to UNC 2" as standard; for loads from 1,200 lbs to 50,000 lbs
Other variants of fitting bolts on request
|
|
The DSH double swivel hook combines swivel lifting ring and hook in a single element. The DSH swivel hook's self-locking safety latch provides maximum security. The DSH security hook is universally compatible with all fastening systems: fabric slings, chains, ropes, eyes, ...
Double swivel hook DSH characteristics:
Lifting capacity in all directions
Double articulation allows it to line up perfectly with the sling
Fast and universal hooking with any kind of connection (without additional appliances)
High tensile steel (Class >8)
Safety factor 5
Two ways of tightening: either by open-ended spanner or by Allen key
WLL indication engraved
From M8 to M20 as standard; for loads from 0,3 To to 2,5 To
From UNC 3/8'' to UNC 3/4'' as standard; for loads from 1,200 LBS to 5,500 LBS
Each double swivel hook is tested and delivered with a certificate of conformity
Other variants of fitting bolts on request
|
|
The lifting ring for turning operations
The heavy duty lifting rings >WBG-VWBG< have a ball-bearing swivel and are suitable for turning and tilting of loads.
Simple assembly, only one tapped hole is required. Available with different thread lengths.
|
|
The lifting ring for turning operations
The heavy duty lifting rings >WBG-VWBG< have a ball-bearing swivel and are suitable for turning and tilting of loads.
Simple assembly, only one tapped hole is required. Available with different thread lengths.
|
|
