Due to their silent and even operation, GFC gearless drive systems are particularly suitable for use in elevator engineering.
GFC gearless drive systems are supplied complete with traction sheave, measuring and brake system.
o synchronous motor with high performance permanent magnets
o temperature monitoring using a thermistor
o redundant brake system in accordance with EN 81-1
o microswitches for brake function monitoring
o certified as safety gear in upward direction
o integral measuring system
o absolute: resolution 13 bit
o incremental: 2048 pulses 1 Vss
|
|
Application
Timers, Chart recorders, Potentiometer Drives, light Displays, Hour Meterd, Cam Timers, Programming devices and control instrumentation.
Design
MT0 is a unidirectional motor with a cylindrical sheet-iron stator in which the field poles form the stator ring. In combination with the auxiliary ploles (provided with copper shading rings) a roating field is generated when the coil is energized.
The rotor turns in sintered bushings requiring no maintainence. The motor shaft is polished to a mirror finish. Motor can be provided with screw clilp for fixing.
|
|
AC synchronous motor and Stepper motor
• Unidirectional and bidirectional
• Power supply: from 12 to 230Vac
• Running torque: from 0,08 to 4 Ncm
• Output shaft speed: from 375 to 600 rpm
Stepper Motor
• Bipolar stepper motor
• Supply voltage: 12 Vdc
• Full step: 24
• Running torque: fix at 4 Ncm among motors and gearmotors
|
|
saia synchronous motor
Dimensions (mm) Ø 36x21
Step angle (°) 7.5/15
Holding torque (cNm) 1.0-1.9.
Detent torque (cNm) 0.22-0.36
Resistance per winding
bipolar/unipolar 6 V (Ohm) 18.5/28
12 V (Ohm) 100/120
24 V (Ohm) 460/500
Gear combination A, D, M, B, F, V
|
|
Direct drive Dividing Apparatus TA Sk 50:
Rotational axis for dividing in machine tools or other processing machines. Due to the direct drive implemented in this machine far higher r.p.m. rates can be achieved than as with comparable worm driven devices. Work pieces can thus for instance be treated by cylindrical surface grinding. The drive is absolutely free from any play or float.
|
|
LEROY-SOMER designs and manufactures DC, AC induction and AC PM gearless motors. LEROY-SOMER machine ranges cover all segments of the market, from small load-small speed to high speed -high rise elevators.
The new Z range of synchronous permanent magnet motors has been designed for lifts obtaining a speed between 0.6 and 5 m/s the load capacity of which ranges between 450 and 2000 kg. Their extremely compact design and silent operation make it possible to install these high efficiency motors in machine rooms as well as directly in the lift shat.
LEROY-SOMER can also customize an existing machine or design a new machine to fulfil specific requirements.
|
|
Johnson Motor Synchronous motor
Dimensions: length 36, flat 29, shaft Ø 2.3 mm
Supply: nominal 120 VAC
Torque:
@ stall 0 mNm
@ max. power 30.61 mNm
Speed:
@ no load 3600 rpm
@ max. power 3600 rpm
Power:
input @ no load 14.9 W
output @ max. power 11.57 W
Nominal voltage: nominal 120 VDC
Max. current:
@ no load 0.341 A
@ stall 0.456 A
@ max. power 0.356 A
|
|
K-2 Series AC Torque Motor
Torque: 3.5 to 7.0 oz-in
30R Series AC Torque Motor
Torque: 19 to 25 oz-in
42R Series AC Torque Motor
Torque: 22 to 38 oz-in
48R Series AC Torque Motor
Torque: 32 to 68 oz-in
|
|
Synchronous motors are often used in applications where precise speed is critical to the application. Shaded pole (asynchronous) motors offer higher levels of output power than synchronous motors however speed will vary under load.
The most important step lies in the accurate definition of the work that you require the motor and gearbox to perform. The selection of a suitable motor and gearbox can only be made if the torque and speed can be defined. Of these two parameters, torque is probably the most difficult to identify - please contact us if you need help.
|
|
|
Hysteresis Synchronous Motors are designed to meet both Military and Commercial requirements. These AC Motors range from size 8 to 44. This type motor is utilized where constant speed and smooth operation are necessary.
|
|
STALL TORQUE:
10 to 600 Nm
POLARITY:
12, 24, 30 poles
RATED SPEED:
200 - 300 - 400 - 500 - 1000
INSULATION CLASS:
F
DEGREE OF PROTECTION:
IP65
MOUNTING:
IM B5
MAIN FEATURES:
high torque density and high performance
CE certification
cURus certification
OPTIONS:
feedback by encoder/resolver (Heidenain, Stegmann, Tamagawa)
hollow shaft
frameless
water cooled
|
|
Imperial Electric provides gearless AC machines in three frame sizes - serving car capacity ranges from 1,250 to 6,500 pounds at speeds from 100 to 1,400 fpm (feet per minute).
Frame 470 has the capacity to lift 1,375 to 2,500 pounds at speeds up to 500 fpm with 2:1 roping.
Frame 520 has the capacity to lift 2,000 to 3,000 pounds up to 600 fpm with 1:1 roping or 2,200 to 5,500 pounds up to 600 fpm with 2:1 roping.
Frame 800 has the capacity to lift 2,000 to 3,500 pounds up to 1,400 fpm with 1:1 roping or 4,000 to 7,000 pounds up to 700 fpm with 2:1 roping.
|
|
PM - 160 ES/L
Ratings:
Rated load from 450 kg up to 1000 kg
Elevator speed up to 1,75 m/s
Rated load from 450kg up to 1000kg
Elevator speed up to 1,75 m/s
Compact
High Efficiency
Comfort ride
Silent operation
Low maintenance/service requirements
|
|
H-modyn: Individual drive solutions for application and industry sector-specific customer requirements
The H-modyn machines for induction motors, synchronous motors and generators are suitable for use in the whole of the process industry. Either Oil & Gas, Offshore, Chemical, Steel, Water or Wastewater, Air separation, Pulp & Paper, or others - every branch will find the right machine.
In these industry sectors, with a high power requirement, these machines are preferably used for the following applications:
* Compressors
* Pumps
* Generators
* Refiners
* Blowers
and more
|
|
The synchronous motors of the MF-series are best suited
for extruding and injection moulding machines, machine
tools, vehicle drives, testing systems, packaging machines,
extruder, textile machines, wire drawing mills, printing
machines, hydro-electric power plants, etc...
|
|

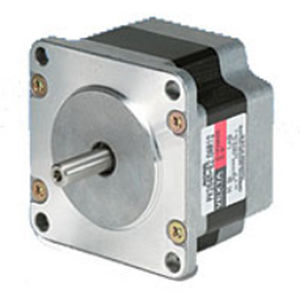

SMK Series Low Speed Synchronous Motors
Low-speed synchronous motors provide highly precise speed regulation, low-speed rotation, and quick bi-directional rotation. The basic contruction of low-speed synchronous motors is the same as that of stepping motors.
RoHS compliant models available
|
|
Since the acquisition of ELIN EBG Motoren GmbH by the TRASYS group in 2002, new traction business is exclusively handled by our sister-company Traktionssysteme Austria GmbH. ELIN EBG Motoren GmbH is only involved in finishing already started traction projects.
In the field of railway engines we offer our customers liquid cooled motors in a power range between 60 and 500 kW respectively air cooled motors in a power range between 40 and 750 kW, up to 6.000 rpm.
|
|
|
|
|
|
|
Hurst permanent magnet synchronous motors are reversible permanent-split capacitor motors identical in construction to the Hurst stepping motors. The 60 Hz can-stack motors operate at synchronous speeds of 300 and 600 RPM. High quality gearing is available for the can-stack motors. The ceramic rotor magnet material provides a relatively high flux resulting in a good torque to size ratio at moderate cost. In addition the permanent magnet construction provides inherent dynamic braking and low rotor speed for quiet operation and rapid acceleration. The disadvantages of permanent magnet motors are a limited ability to accelerate inertial loads and a high sensivity to the parameters of voltage and phasing capacitor. The first of these problems may be minimized by gearing or in some cases flexible couplings. The sensitivity to voltage and phasing capacitor directly affects the directional reliability of both starting and running under load. In Hurst motor designs directional reliability is a primary consideration and is assured when motors are operated with the recommended capacitor within a voltage range of 10% of nominal.
|
|
Applications:
Pulp and paper processing, electric utility, marine, water and wastewater treatment, chemical and petrochemical, steel, mining, air conditioning, and air separation.
Synchronous machines can be found wherever there is a demand for highly efficient, cost-effective, dependable machines. They are frequently used for chippers, mixers, generators, rolling, ball and sag mills, pulp (reprocating and centrifical) drives. They are also furnished with adjustable frequency drives (PWM, LCI, and Cyclo-converter) for soft starters or speed regulation.
|
|
|
|
|
|
Our new bearing-mounted KTY synchronous torque motors set a new benchmark with regard to maximum drive system torque and stiffness, and are also extremely compact. The KTY model series is a useful alternative to geared motors in any application you can think of, and the motors in this model series have sensibly graduated torques ranging from 12 Nm to 240 Nm. This means that direct drive technology is also available in this torque class for the first time, which is convenient for the user. Three different flange sizes are all available in 3-4 lengths in order to meet requirements in the best possible way.
- Extremely good dynamics due to low moment of inertia values.
- High overloading capability
- High positioning accuracy due to high-resolution encoder systems and avoidance of components that are susceptible to play and friction.
- Motors with hollow shaft, full shaft, loose flange and shrink disk available.
- Permissible radial and axial force can be increased if required.
- Optionally available with safety brake (holding brake)
Technical equipment:
- Top quality rare-earth magnets
- Optimized lamination
- Oscillation strength R, oscillation strength S in accordance with DIN VDE 0530-14 (on request)
- Flange dimensions standardized in accordance with DIN 42 677 (special flanges optionally available)
- Flange accuracy in accordance with DIN 42 955
- Full shaft with/without feather key, hollow shaft with shaft end at A and/or B side, shaft with shrink disk or loose flange (on request)
- Protection class IP 65
- Insulation class F
|
|

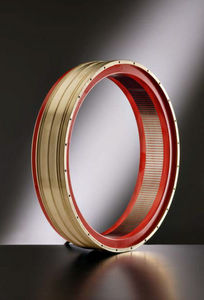

Torque motor consist of a fixed primary coil unit (stator or primary part) and rotated magnet ring (rotor or secondary part). Torque table consist of synchronous motor with built-in radial-axial (thrust) bearing, incremental sensor and hydraulic brake (optional).
Ruchservomotor JV designed and produced three series of torque motors: torque motors for instrument-industry (series RSM-24, series RSMR-24) and for machine-building industry (series RM-36). The feature of synchronous motors series RSM-24 is small dimensions for low dimensions(profile) position systems.
|
|
Synchronous Motors
Provide rotation at a fixed speed in synchronization with the frequency of the power source. (60 Hz: 1800 r/min)
For applications where the motor's rotation must be kept at a fixed speed, regardless of changes to the load.
|
|
- Torque motor = permanent magnet motor, annular geometry with hollow shaft and rare-earth magnets
- direct drive, high torque at low speed
(no need of gear boxes)
- features: compact, robust, maintenance-free, no wear, no
mechanical clearance, low noise, low cost, motor with excellent control properties , technically comparable with synchron servomotors
- bearings are part of motor or part of customer's machine,
axial self-aligning r earings are optional
- motors available in 3 designs:
A) hollow shaft motor without bearings
B) hollow shaft motor with bearings
(bearing lifetime > 20.000 h)
C) motor with bearings and central shaft
|
|
HT-direct motors are permanent-magnet synchronous motors that can provide high torques at low speeds directly at the driven machine. High efficiencies and good power factors can also be achieved at low speeds as a result of the permanent magnet rotors.
The HT-direct motors are offered as a harmonized system together with SINAMICS drive converters.
The HT-direct motor / SINAMICS drive converter represents a drive solution with a long service lifetime but with low lifecycle costs and high efficiency for applications with low operating speeds.
|
|
ELECTRICAL STEERINGS
Electric steerings have been specially studied to be fitted directly to the motor. They have been developed and designed according to the latest state-of.the-art technology and meet all requirements on power transmissions. Grease bath lubrication.
|
|
|
|
|
|
ABM SINOCHRON®Motors are permanently excited synchronous motors, e.g. rotor speed matches the rotational frequency of the revolving stator field. In comparison to common induction motors they feature outstanding efficiency, high power density and compact dimensions and to conventional synchronous motors no encoder feedback for inverter or servo control operation is required.
SINOCHRON®Motor design features almost perfect sinusoidal distribution of the magnetic flux. With this unique property SINOCHRON®Motors are perfectly suited for sensorless operation and offer an economical alternative to expensive servo drives. Concurrently they boast better dynamic behaviour and efficiency than induction motors.
Simple rotor design, with internally located high performance magnets, allow for more economical manufacturing of SINOCHRON®Motors than servo motors without major impact on power density and control behaviour.
Sinusoidal magnetic flux minimizes troublesome cogging and improves rotational behaviour and noise emissions over conventional permanent magnet motors.
|
|
KCT Series Switch Reluctance Motor
The KCT series of switch reluctance motor is a typical electromechanical integrative AC stepless speed regulating motor, with high efficiency, constant torque, small starting current and frequent changing rolling direction. Using advanced three-phase 128 pole technology, the KCT series ensures a high performance index.
|
|
DS 45-100 - General Purpose (Synchronous)
high torque accuracy
high speed
compact design
wear- and maintenance free
permanent field servo motors
IP64/65 non-ventilated, IP54 surface-ventilated (DS 56-100)
encoders: resolver, SinCos-encoder (optional)
all types optionally with brake
DS 100-200 - General Purpose (Synchronous)
excellent smooth running characteristics
high torque accuracy
high variability thanks to modular system
compact and robust design
high level of efficiency
permanent field servo motors
unventilated IP54, ventilated IP23, IP54
water-cooled IP54
encoders: resolver, SinCos-encoder (optional)
all types optionally with brake
|
|
HLR series three phase synchronous motors
High power series with substantial advantages:
* Highest efficiency through new winding technology
* Highest power density with a rated power range from 210...2890W in four sizes
* Constant torque development for best control properties
* High energetic neodymium-iron-boron magnets - minimized cogging
* Excellent dynamik behaviour because of low inertia and high peak torque
* Available with planetary gearboxes (low backlash as well) and parking brake
* Stylish smooth aluminium cast housing
|
|
Reversible Synchronous Motor
Specifications:
Rated voltage: 24, 110-120, 220-240 V
Power frequency: 50/60 Hz
Input power: 5 ~ 10W
Rotor speed: 750 - 900 RPM
Output RPM: From 1 to 120 RPM
Torque: 300kg/cm at 1 RPM
Rotation: CW, CCW, Reversible
Operating temperature: -10o ~ +70o C
Voltage Range: ±10% of Rated Voltage
Insulation Impedance: DC 500V, 100MΩ
Insulation strength: 1500 V-1Min
Insulation class: B class
Special Features:
Lower price with high toque performance.
It possesses similar features to Oriental or Servo motor.
The shaft is "Bearing structure"(not general bushing), the endurance is high.
The support wrapped/fixed style gear design.
High magnetic rotor design: Material- MQ serial magnet steel (ND-Fe-B)
Resistance to high temperature.
Precision gear set design: Using Swiss 'Mikron' gear hobbing machine
Motor casing (Dupont coating).
Water resistance.
|
|
|
|
