QuadCut External:
QuadCut External offers exceptional strength, accuracy, and flexibility for your threading operations. Our four-sided design delivers improved tool life and faster threading.
|
|
Two types of inserts are offered. The main are grounded profile and chip breaker inserts, delivering high quality threads, offered in a big variety of grades and coatings to fit all manufacturing purposes.
Within this range we offer also Ultra - Miniature and Miniature inserts for threading bores as small as 6mm diameter, Vertical (on edge) inserts, Multitooth inserts and U � Type inserts
|
|
M -TYPE INSERTS
High Profile Accuracy
Every insert has an indexable accuracy of 0.015mm guaranteed.
Cost Advantage
TaeguTec uses advanced technology to ensure economical production and a high level of accuracy. This guarantees the customer improved performance and product consistency
Excellent Chip Control
A unique chipformer delivers outstanding performance.
Clear and Easy Identification
The designation mark on the insert clearly defines application, thread standard and pitch.
|
|

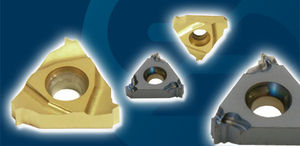

Revolutionary newly developed threading insert with chipformer for internal and external machining
- Highly economical
- Excellent process reliability and increased productivity thanks to the unique chipformer in combination with the new grade AH740
- Suitable for a wide range of applications including difficult-to-cut materials
|
|
MiniPro THREADING
For diameters from 2mm to 13mm, the four different MiniPro solutions cover the entire range. Full technical details of the MicroScope, Mini-3, Mini-L and Mini 6.0 can be found in the MiniPro catalog
|
|
QuadCut Internal:
QuadCut Internal offers exceptional strength, accuracy, and flexibility for your internal threading operations. Our two and four-sided design delivers improved tool life and faster threading.
|
|
Application:
Threaded insert with bores is a self-tapping fastener for the creation of wear-free, vibration-resistant screw joints with high loading capacity in materials with low shearing strength. It is suitable for installation in the following materials: Aluminum and aluminum alloys; magnesium alloys; Duroplastics, thermoplastics(with the exception of rubber-soft thermoplastics < 100 Shore A).
The head serves as a support for electrical contacts, for simultaneous fixture of several parts; when stress is applied against the head, the pull-through force is significantly increased
|
|
The Foamsert is a special version of the Trisert and has a very coarse truncated external thread form. Like the Trisert it has three equidistant cutting flutes over the length of the external form and it is this unique combination that makes the Foamsert ideally suited for use in structural foam materials, laminated chipboards, medium density fibre board and certain types of glass reinforced plastics.
Continuous product development has led to a headed version of the Foamsert providing all the benefits of the headed Trisert in an expanded range of materials. This innovative new design adds a significant degree of versatility to the existing inserts for plastics. Both the Double Ended and Reduced Headed versions are installed using a reversible driving mechanism.
|
|
|
The Tappex Trisert range of brass self-tapping inserts includes three primary designs: Double Ended, Reduced Headed, and Regular Headed variants, to solve most application problems in thermoset and thermoplastic grades including the latest engineering plastic alloys. The concept of the design is to provide a reliable and efficient post-mould production process, where the installation torque can be controlled and monitored for increased reliability.
|
|
The bush with its cutting slot is a self-tapping attaching part which ensures screwed assemblies for high loads, without wear in case of frequency disassembly of the screw and resisting vibrations in materials with low shearing strength:
light alloys
cast iron, brass, bronze,
non-ferrous metals,
plastics,
laminates, hard woods,
chipboard panels.
Material:
Cemented steel
quenched, zinc plated
yellow bichromate treated
S 250
U-Z36Pb3 brass
Stainless steel
18.9
Other dimensions and materials on request.
Tolerances on tapping 6H over the full length ± 0.2 mm.
|
|
... see all the products in the category
Inserts
|
Solid Carbide tools for working in small bores (from diameter 2.1 mm).
These tools are made for the high tech, medical & small components industry.
They are used in machining centers or conventional machines.
The Tiny Tools are available in the excellent BXC TiN coated grade, for machining a wide range of stainless steels in low cutting speed.
These tools can perform the following applications -
Boring
Back Turning
Profiling and Boring
Threading
Chamfering and Boring
Grooving
Face Grooving
All tools include cooling channel on the shank, enable the cooling fluid to reach efficiently the cutting edge, for easy chip removal and smooth cutting operation.
|
|
Partial Profile
Partial profile threading inserts are available in two types with thread angles of 60° and 55°.
- 60° TYPE (ISO and Unified)
- 55° TYPE (British Standard Whitworth)
The partial profile inserts cut without machining the crest of the thread. The same insert can be used for a range of different thread pitches.
|
|
Threading Systems
Kennametal offers two standard tooling systems to meet your threading application needs:
LT - Laydown Triangle Threading for fine-pitch threads
Top Notch Threading for superior performance in heavy-duty machining applications
LT - Laydown Triangle Threading
The solution of choice for general use and adjustable shim applications.
Top Notch Threading
The ideal solution for for heavy-duty applications.
|
|
|
This toolholder, for use with Seco Tools' range of Snap-Tap® thread turning inserts, features the Anti-Twist™ insert locking system to provide incredibly secure insert holding. The Anti-Twist system has two significant design features.
|
|
The hole is drilled using a commercially available standard drill bit.
Then, insatallation is made with a manual or an automatic special tap for fitting wire thread insert.
|
|
|
|
