USB Connectivity
OEM customers can benefit from MosChip's USB bridge solutions, enabling any PC user, an instant no-hassle way to connect all the next generation computer peripherals. By providing bridging solutions, MosChip can incorporate support for legacy devices as well as bring forward the next generation of USB technologies to the market place.
With MosChip's ever growing array of USB bridge solutions, new peripherals will continue to provide the consumer extended years of use through a standard interface. The next generation of USB On-the-Go (OTG), part of the USB 3.0 specification, will provide instant upgrades that will benefit from a faster and more reliable connection with all the new emerging technologies. This includes new bridging Ethernet and SOC devices as they become available to the market place.
|
|
|
Interface IC solutions ranging from CAN, LVDS, RS-485, RS-232 industry standards to 1394 (Firewire), USB, PCI Cardbus and more.
|
|

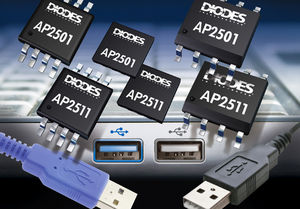

FEATURES:
110mW (5V Input) High-Side MOSFET Switch.
500mA Continuous Load Current per Channel.
220mA Typical On-State Supply Current.
1mA Typical Off-State Supply Current.
Current-Limit / Short Circuit Protection.
Thermal Shutdown Protection under Overcurrent Condition.
Undervoltage Lockout Ensures that Switch is off at Start Up.
Output can be Forced Higher than Input (Off-State).
Open-Drain Fault Flag.
Slow Turn ON and Fast Turn OFF.
Enable Active-High or Active-Low.
APPLICATIONS:
USB Power Management.
Hot Plug-In Power Supplies.
Battery-Charger Circuit.
|
|
The UMX controller with USB connectivity is compatible with the PC78 and
PCIx controller families with 2-4 axes control. The UMX
supports up to 12 general purpose TTL I/O bits, 8 of
which are user definable.
The step pulse is a TTL level 50% duty cycle square
wave that supports velocities of 0 through 1,044,000
pulses per second. The encoder feedback functionality
supports quadrature encoders up to 12 MHz at a 4
times the encoder line resolution and is used as closedloop
feedback for the stepper axes or as independent
position feedback. The encoder feedback can provide
slip and/or stall detection. Each axis includes dedicated
+/- overtravel inputs, a home input, and an auxiliary
output.
|
|
New 3 Axis motion controller, 5.7" LCD screen and Keypad
Price: GBP 645.00
(For OEM's and machine integrators discounts apply)
* 3 stepper axis
* 2 Servo axis control (+/-10V analogue outputs)
* 5.7" colour TFT display large text and animated machine functions
* 16 Digital Inputs and 16 Digital outputs
* 8 Analogue Inputs
* 2 Fast registration inputs (40 nS)
* Ports RS232, RS485, USB
* Linear and circular interpolation
* Electronic Cam, Synchronization, Virtual axis
* 30 key keypad
* Preloaded with Motion Application Software 'MAP'
|
|
New 3 Axis motion controller, 5.7" LCD screen and QWERTY Keypad
Price: GBP 700.00
(For OEM's and machine integrators discounts apply)
* 3 stepper axis
* 2 Servo axis control (+/-10V analogue outputs)
* 5.7" colour TFT display large text and animated machine functions
* 16 Digital Inputs and 16 Digital outputs
* 8 Analogue Inputs
* 2 Fast registration inputs (40 nS)
* Ports RS232, RS485, USB
* Linear and circular interpolation
* Electronic Cam, Synchronization, Virtual axis
* QWERTY key keypad
* Preloaded with Motion Application Software 'MAP'
|
|
| ... products without technical information |
| |
| ... products without technical information |
| |
|
|
|
|
iCM4011 is a dsPIC embedded communication module that makes it possible to quickly and effectively develop applications requiring calculation capacities of up to 30MIPS.
Its architecture is based on a next-generation DSP and incorporates transceivers for the most common communication protocols (RS485, RS232, USB and CAN) to allow interaction with the largest possible number of peripherals.
The board can also be USB powered, giving the module full plug&play functionality.
The processor comes preprogrammed in the factory with bootloader firmware that allows the user to load programs through a RS232 or USB port in a few seconds, without the need for an external programmer or additional software.
It also incorporates an ICSP connector for debugging applications.
Main features:
------------------
* dsPIC 16 bits processor (RISC MCU + DSP)
* 48 KBytes of program FLASH memory
* 2048 Bytes data RAM
* 1024 Bytes data EEPROM
* 30 I/O Ports
* 9 ADC channels (10 bits/sample)
* Auto switching power supply modes: Regulated / USB
* LED indicators
* Small size (38.1 x 38.1 mm)
* Interfaces and Transceivers
o SPI
o I2C
o USB
o RS485
o RS232
o CAN
* Motor control features
o 6 PWM channels
o Quadrature encoder interface
* Other features
o 5 timers
o 4 input capture/compare
o Brown-out reset
|
|
INHECO Single TEC Control STC
INHECO has launched the STC, a compact high precision controller for managing single INHECO CPAC or shaker devices. The STC can be equipped optionally with slots for CPACs or shakers. The slots can be exchanged easily giving maximum flexibility. The STC can be operated manually using the touch screen display or through the USB interface. The soft- and firmware of the controller allows programming of complex temperature and shaking sequences. The STC uses basically the same firmware as its sister Multi TEC Control (MTC), so no additional integration work is required. Both STC and MTC are prepared for use in customer IVD applications.
Together with the MTC, the STC completes the replacement of the current controller TEC Control 96, which will be phased out by early 2010.
|
|
1 to 4 keys 1-way and 2-ways radio remote control
* Wireless control for 1 to 10 logical status up to 400m
* 1-way and 2 ways versions
* 433.92 or 868MHz
* Specific marking on demand
* Comply with the European standard RTTE EN 300-220 / EN 301-489
Receivers
* RS232 or USB serial decoder, 4 relays or 4 binary outputs receivers
* 433.92 or 868MHz
* Comply with the European standard RTTE EN 300-220 / EN 301-489
* Available in IP65 box ready for use for some referencesConsumer market,
tertiary and industrial applications
Home remote controls (gate, vehicle, roller shutters…)
Home automation
Access control
Security – alarm
Remote control
Automatics, robotics…
DemoKit - Integration kit including : demoboard, module, remote control, RS232 cable, power supply available for this product
* Evaluate the products
* Perform RF measurements
* Develop a prototype
|
|
|
|
