This machine is manufactured on a Dulevo custom built four wheel steering chassis and has been designed and engineered to sustain a regular heavy work load. The 5000 Compatto is a unique machine for the collection, compacting and transportation of municipal solid waste. It can be use to load and compress waste, tip and empty trash bins and/or skips and quickly empty the vehicle's body into other trash compacters. The limited dimensions of the vehicle, together with the special four-wheel steering system allow a turning radius of less than 4.5 meters. This gives the vehicle unparalleled maneuverability making it ideally suited for use in congested the town centers.
|
|
|
|
|
|
The greatest possible capacity, safety and reliability - these are just three of the outstanding features of the new FRONTPRESS. FAUN engineers have consistently developed the tried-and-tested FRONTPRESS frontloader, and equipped it with a range of well-conceived refinements and innovative techniques.
With years of sucessful use already behind it, the FRONTPRESS is the economical refuse collection truck for the collection of commercial waste.
One person moves it
The FRONTPRESS, a one-person-operated vehicle, provides a safe and comfortable workplace, as the driver is always well protected from the weather and from contact with refuse. There is no physically onerous work involved in lifting and lowering containers, as the powerful pickup arms grip the container accurately and effortlessly. Using a joystick, the driver controls the approach and emptying procedures with great ease from the cab. This is a valuable plus point having twofold effect - the driver is protected from injury by the container whilst at the same time enjoying the best possible view of the lifting situation.
Body 533 538
Body capacity m³ 33 38
Weight appr. kg 9670 10280
Width appr. mm 2550 2550
Hydraulic pressure max. bar 220 220
Lifting capacity N 35000 35000
|
|
he revolution for your waste disposal
With the EASYPRESS, FAUN is bringing a new generation of refuse collection vehicles onto the market: front-sideloaders on standard chassis. The EASYPRESS offers collection personnel a comfortable workplace by using the latest generation of standard chassis. With a lifter based on innovative operational principles, the EASYPRESS is a refuse collection vehicle with excellent overall design and economy.
Using a joystick, the operator can easily and conveniently control the entire loading process, and can view the entire work area in a relaxed attitude without additional aids.
With a body volume of 25 m³, the EASYPRESS is ideally suited to removing wastes of all types.
The EASYPRESS is available for many different standard chassis.
Body 525
Body capacity m³ 25
Weight appr. kg 7330
Length (L) appr. mm 7480
Width appr. mm 2530
Height (H) appr. mm 2640
|
|
|
|
|
|
The specialist for difficult cases
The POWERPRESS is the right solution whenever the most demanding requirements have to be satisfied. The POWERPRESS is not only an all-round collection vehicle for all containers up to 10 m³ (including bulk refuse), it is also designed throughout to cope with the toughest of operations. Within a progressive overall concept the POWERPRESS combines top-quality materials and workmanship with proven technology - an exceptional loader.
The POWERPRESS range
There is a POWERPRESS to meet every requirement: 18 m³ for two-axle chassis, 20 to 25 m³ for three-axle chassis and 30 m³ for four-axle chassis form the basis. With expert advice from your FAUN sales partner the right vehicle tailor-made to suit your exact requirements can be specified.
The POWERPRESS comes with open tailgate, or with DIN interface frames, or with a built-in FAUN lifter. Built-in lifters from FAUN, featuring an extremely low rave height, low gross weight, and excellent rave visibility ensure that they represent a particularly worthy investment.
|
|
|
|
|
|
The versatile machine for all your waste disposal needs
The VARIOPRESS is the solution for the future as far as the disposal of household and commercial recyclables and other waste materials is concerned. This refuse vehicle really does live up to its name. Because it is so versatile it can be utilised, regardless of the density of the waste and with any size of container, from 60 litre bins right up to, upon request, 5 m³ refillable containers.
Thanks to the option of body sizes ranging from 7 to 30 m³ and a choice of chassis ranging from narrow-track to the large four-axle version, a type can be specified to meet any individual requirement.
The VARIOPRESS comes with DIN bin lifter interfaces or with built-in lifters from FAUN. The extremely low rave height, light-weight construction, and the option of manual loading without reconfiguration make built-in lifters from FAUN an excellent investment.
The optional light beams at the tailgate of the VARIOPRESS allow a continuous loading mechanism cycle, even with a rave height of less than 1,400 mm. Should the light beam be interrupted by the downward movement of the loading mechanism, the compactor stops. The movement can be restarted at the touch of a button. This allows continuous operation of the loading mechanism, without the risk of a dangerous loading situation occurring.
|
|
|
|
|
|

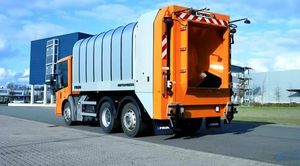

When it comes to economy the ROTOPRESS is beyond compare. Thanks to its unique rotating drum principle the ROTOPRESS is the most economical refuse vehicle for the collection of household waste and equivalent commercial waste.
Fewer moving parts mean less maintenance and fewer repairs even with multi-shift operation. Just one reason why the ROTOPRESS is one of the most economical vehicles available as far as upkeep is concerned. Additional advantages offered by the rotating drum include: easy and residue-free discharge, low-maintenance screw press, a perfectly tight seal, no residues, no odours.
Profitable, hygienic, manoeuvrable and environmentally friendly - the attributes that make the ROTOPRESS the optimum solution for a variety of waste-disposal tasks.
Fitted with an appropriately sized bin lifter the ROTOPRESS can empty all containers from 60 litres to 1,100 litres. A particular environmental benefit of the ROTOPRESS becomes apparent during the collection of organic waste, in that it is immediately composted in the rotating drum.
Blends perfectly into the townscape
With its attractively clean design the ROTOPRESS blends perfectly into the townscape and retains its looks even after many years of service. More importantly, it still works perfectly too. Not surprising therefore that its resale value remains so high.
|
|
|
|
|
|
Rapid single man operation
The SIDEPRESS X is the logical solution, especially for areas of relatively low bin density, that quickly makes financial sense. The SIDEPRESS X can be used to collect household wastes of all types in MGB or DU bins ranging from 60 to 1,100 litres in size. Optionally, four-wheeled bins of up to 1.1 m³ can be presented for collection by hand. And the SIDEPRESS X does not hang around either. Up to 1,100 bins can be emptied per day on a regular basis.
Flexible transportation logistics
It often makes sense to separate refuse collection and transportation operations. This allows the collection vehicle to stay out on its round, giving it more time to do the job it was designed for, collecting waste. This is a good idea not only when large distances or congested traffic conditions have to be overcome. It often represents an intelligent solution in multi-shift systems, too. The FAUN demountable container systems offers customers a variety of options. On level paved surfaces, containers can be transferred onto trailers or railway trucks without the need for extra equipment. And they can also be emptied straight from the collection vehicle, on completion of its last collection without any additional equipment being required.
|
|
Rapid one-man operation
Innovative automated technology for cost-effective household waste collection. The SIDEPRESS is the ideal solution for suburban and rural rounds. The one-man operation, direct from the cab, will quickly reap financial benefits, with higher vehicle productivity.
The SIDEPRESS provides the driver with an ergonomic workplace. Thanks to the joystick control from the cab he does not come into direct contact with waste materials or bacteria. Instead of heavy physical work, often in close proximity to busy traffic, the SIDEPRESS offers a safe, ergonomic, hygienic workplace that is protected from the elements.
With the SIDEPRESS household waste of all types can be collected in containers ranging from 60 to optionally 1,100 litres, and the SIDEPRESS does not hang around. The optionally available "collection trough" also permits the convenient disposal of refuse sacks.
Weighing only 13 t, the SIDEPRESS offers high payload potential.
|
|
The EuroCycler
The Eurocycler is a two stream semi-automated recycling unit that has been operating successfully with contractors and municipalities in the US for almost 10 years.
A split container on both sides of the body allows the simultaneous separation and dumping of recyclables into the body chambers from either side. The Eurocycler has a body length of 7.7 metres and a capacity of 25.3m3, which is split 11.6m3 in the top compartment, and 13.7 m3 in the bottom.
Cushioned cylinders ensure a smoother, quieter operation while other benefits include Heil's unique dual swing link action packing mechanism, which gives minimal glass breakage.
|
|
The Narrow Powertrak
The Narrow Powertrak, long-established workhorse of the Heil range of RCVs.
Available in standard & narrow widths
|
|
S2000M
Trash Compression Transfer Truck
S2000M mobile type household trash compression transfer equipment produced by our company possesses feature of large trash treatment capacity, high treatment efficiency, noiselessness, and no stink, especially powerful during peek time. This equipment asks for low requirement of transferring location, trash collection and transferring can be processed only easy civil engineering needed. Compression equipment and trash transfer bin mutually work together, convenient to compress, dump. It not only reduces transport capacity waste, but also relieves transportation pressure, meeting the demand of trash transferring at easy location lately. In the meanwhile, compressing box has excellent sealing performance, which can solve the problems arising from transportation, and short-time storage is available.
|
|
The Euro Half Pack
Provides operators with a more robust and efficient vehicle than was ever possible before.
|
|
The Powertrak
A robust and hard working refuse collection vehicle, designed for higher performance levels and lower cost of ownership, the Powertrak sets the future standards of RCV design and performance.
Available in standard & narrow widths
|
|
The Universal Trade Lift
The UTL, designed to maximise flexibility, accommodates your lifting requirements regardless of vehicle model or bin size.
|
|
The Powerlink
Powerlink, modelled on the industry-standard Big Bite, provides flexibility to any RCV fleet.
The full-cycle compaction mechanism produces less friction than conventional channelled compaction systems, ensuring a greater force is directed into the load. The reduction of friction increases durability of materials, improving whole life costs.
|
|
The Big Bite
Considered to be the industry standard in RCV design, the Big Bite offers a refuse carrying capacity of 31m3 which, with the large 2.5m3 hopper, facilitates collection of large refuse items and reduces the collection time for each trip by increasing the volume packed in each cycle.
|
|
FL-P
NTM FL-P
The NTM Front End Loader is designed for easy operation as well as high degree of reliability. With the pendulum principle for compaction you get few moving parts, favourable life cycle costs and a good compaction ratio. The FL-P has a loading capacity of up to 36 cubic meters. It is easy to keep clean and has no ejector plate.
Discharge is done by tipping. The patented cab shield makes it easy to get all the waste in the hopper without spillage.
The lifting arms are controlled easily by a joystick. This is possible by the advanced PLC-technology.
Standard equipment
PLC-controlled hydraulics
Emergency stop
Tailgate lowering control fitted to the rear of the body
Hose break valve for raised tailgate
Vehicle work lights
Amber beacons
Mud guards, mud flaps
Cameras (2 or 3) with in cab-monitor for loading and discharging
|
|

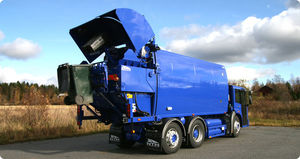

QUATRO
NTM QUATRO
The NTM QUATRO is an advanced 4-chamber reclamation unit designed to achieve maximum collection effiency in separation at source collections. Operating with specially designed 4-compartment bins, which are all loaded at the rear, the system can also be used with bagged fractions collected in a 4-compartment slave cart.
Utilising the unique NTM space efficient pendelum principle, features include compaction in all 4 compartments of the body, together with a cycle time to empty all the compartments of the bin at the same time in 15-20 seconds.
Standard equipment
Bin lift
Emergency stop
Vehicle work lights
Mud guards, mud flaps
|
|
KGLS-2B was designed to completely eliminate cross-contamination. It has 2 separately operated bodies and tailgates which makes mixing of the two fractions impossible. The reliability is guaranteed by the simple design. KGLS-2B is built on chassis between 18 to 26 tonnes.
Standard equipment
Binlift (hydraulic levers on both sides)
Pneumatic bin catcher bar
Control buttons on both sides
Proportionally controlled hydraulic levers for the bin lift, the carriage plate and the packer plate
Automatic work cycle
High speed compaction
Hose break valves for raised hoppers
Hopper clearance when raised
Automatic r.p.m. regulation
Amber beacons
Vehicle work lights
Side under run protection
Access door with interlock on both sides
Dustpan and brush with holder
Units are sandblasted to Sa 2.5, following which they are given two coats of paint
Colour rear view camera with in cab-monitor
|
|
NTM K
K is designed for chassis between 7.5-15 GVW. It can handle bins from 120 to 1280 litres, including roll-tops. Available on any make of chassis this body lends itself to a variety of refuse collection and street cleaning applications.
Standard equipment
Bin lift
Pneumatic bin catcher bar (operator adjustable)
Control buttons on both sides
Proportionally controlled hydraulic levers for the bin lift, carriage plate and the packer plate.
High speed compaction
Hose break valve for raised hopper
Hopper clearance when raised
Amber beacons
Vehicle work lights
Dustpan and brush with holder.
Sack carrier
Rear view camera with in cab-monitor
Units are sandblasted to Sa 2.5, following which they are given two coats of paint
|
|
NTM OM
This efficient system operated by one man can handle up to 1000 bins a day. The automated side loader enables the driver/operator to pick up a bin that is up to 2,4 metres from the body, empty the bin into the hopper and place the bin back in position without leaving the cab.
The unique pendulum principle of the compactor gives an excellent compaction ratio and also contributes to low life cycle costs as it has very few moving parts.
The Automated Side loader bodies can be lifted to both 2-axle and 3-axle chassis with body from 14 to 24 cubic metres.
|
|
|
|
