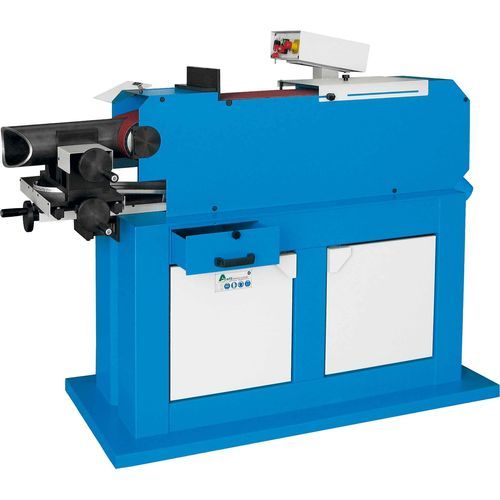

Pipe notching machine ART.142

variable-angletubewith abrasive belt

Power supply 400 | 50 | 3 Volt|Hz|Phase Motor speed 1400 rpm Acoustic emission 75 dB Overall dimension (Width x Depth x Height) 930 x 1900 x H. 1360 mm Pipe notcher Abrasive belt dimension (wide x length) 250 x 2500 mm Peripheral speed 18 m/sec Dimension of working plane (behind abrasive belt) 300 x 460 mm Driving wheel dimension ø 250 mm Pipe diameter ø 30 ÷ ø 245 mm Angle of pipe notcher -30 ÷ 90 ÷ +30 ° Base Strong base with anti-vibration rubbers at the base and a useful shelf for tools inside. Electrical panel Low voltage electric controls with padlock device integrated in the main electric switch. Electronic brake card Emergency stop with electronic motor braking with safety anti-reset function. Vise Vise graduated variable angle with graduated indicator from 30 ° to 90 ° and intermediate positions. Belt grinder cover Carter sander with predisposition connection system. Vice Variable angle graduated tube clamping vice with indicator from 30 ° to 90 °.Left and right bidirectional movement.Self-centering vice for round and square tubes.Vice with limit stop device.Side sliding vice for the complete use of the abrasive belt surface. Rubberized drive wheel Rubberized and balanced drive wheel for better drag of the abrasive belt. Surface plate Wide horizontal surface for sanding and deburring. Graphite Present behind the sanding belt the canvas graphite to reduce friction and heat development. Contact wheel Nr. 1 rubberized and grooved contact wheel for the grooving of Ø 5 "pipes.Fast and reliable replacement of wheels and contact rollers thanks to safety screws.
