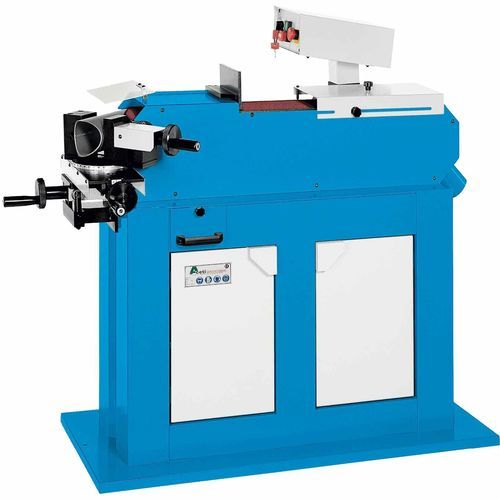

Pipe notching machine ART.56

variable-angletubewith abrasive belt

Power supply 400 | 50 | 3 Volt|Hz|Phase Motor speed 2800 - 1400 rpm Acoustic emission 75 dB Overall dimension (Width x Depth x Height) 800 x 1600 x H. 1250 mm Pipe notcher Abrasive belt dimension (wide x length) 150 x 2000 mm Peripheral speed 30 - 15 m/sec Dimension of working plane (behind abrasive belt) 160 x 400 mm Driving wheel dimension ø 200 mm Pipe diameter ø 20 ÷ ø 145 mm Angle of pipe notcher -30 ÷ 90 ÷ +30 ° Standard Equipments Machine respect CE stamp of compliance - Machine with CE conformity mark made respecting the requirements of the most recent directives concerning it. - Machine complete with instruction manual complete with CE conformity certificate, test sheet and exploded view with relative spare parts list. - Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine.
