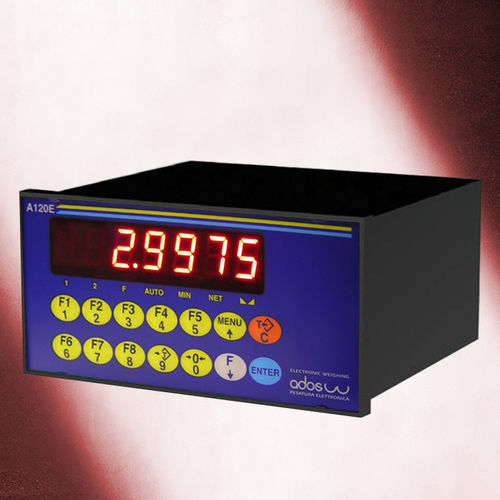

Digital weight indicator A120E

LCD displayLED displayDIN rail

Static & dynamic weighing system •Metric display graduations 6000 e •Decimal point selectable 0 – 0.0 – 0.00 – 0.000 – 0.0000 •Input sensitivity 0.02 uV/e •Measuring range -3.9..3.9 mV/V •Max number of load cells 8 x 350 ohm •Load cell excitation voltage 5 V •Load cell connection 6 wires •Measuring rate 6 to 160 Hz •A/D Converter Sigma Deltat (16.777.216 divisioni) 24 bit •Filtri digitali 0.2..50 Hz •Real time clock •Program memory 128 Kbytes (Flash) •Data memory 8..36 Kbytes •Fiscal memory (option) up to 160.000 data acquisitions 1 Mbytes •Display 7 digits LED 16×2 LCD •Keyboard 14 keys •Serial outputs 1 RS232 (Half duplex) – 1 RS422/RS485 (Half duplex) •Baud rate 1200..115200 Baud •Main supply 110..230 Vac 50..60 Hz •Power comsumption 15 VA •Optional supply 12..24 VDC/AC •Relays outputs 6 SPST •Optoisolated digital inputs 8 PNP •Housing NORYL Self extinguishing NORYL UL 94V-0 •Dimensions 144 x 72 x 120 •Environmental protection IP54
