shear beam load cell / beam type / nickel-plated / steel
shear beam load cell
SIWAREX WL230 SB-S CA

Rated load: 100 kg - 10,000 kg

... SB-S CA is a shear beam load cell made of nickel-plated steel. The rated loads 100kg and 250kg are bending beam load ...

shear beam load cell / beam type / high-precision / nickel-plated
shear beam load cell
SIWAREX WL290 DB-S CA

... measuring element of the load cell is a spring body made of special steel. Due to its galvanic coating with nickel and the degree of protection of IP67, the load cell ...

shear beam load cell / beam type / stainless steel / strain gauge
shear beam load cell
SIWAREX WL230 SB-S SA

The extreme compactness of the shear beam load cell SIWAREX WL230 SB-S SA by Siemens make them particularly useful in crowded conditions, since the height, even after ...

shear beam force transducer / economical / reference
shear beam force transducer
C15

Rated force: 2.5 kN - 1,000 kN

... The C15 reference force transducer is a robust (EMC-tested, rustproof, impact and vibration-tested) shear-force transducer with nominal (rated) measuring ranges between 2.5 kN and 1 MN. ...

See the other products
HBM Test and Measurement
shear beam load cell / beam type / OIML / for tanks
shear beam load cell
HLC

Rated load: 110 kg - 10,000 kg

Transducer which converts force into a measurable electrical output. HLC load cell is ideal for applications such as conveyor scales, weighing modules for tanks, and platform scales. With a 6 wire that ...

See the other products
HBM Test and Measurement
shear beam load cell / beam type / OIML / strain gauge
shear beam load cell
Z7A

Rated load: 500 kg - 10,000 kg

Z7A Shear Beam Load Cell features a very robust design (measuring body made out of galvanized steel) combined with low transducer height. It complies with OIML R60 regulations ...

See the other products
HBM Test and Measurement
shear beam load cell / beam type / stainless steel / strain gauge
shear beam load cell
1 - 50 kN | LCM13 series

Rated force: 1,000 N - 50,000 N
Rated load: 102 kg - 5,000 kg

Stainless steel body is ideal protection from corrosion (IP67) Low profile and lightweight for easy mounting Compact size. For both tension and compression usage Can be used for multi-point weighing

See the other products
A&D COMPANY, LIMITED
shear beam load cell / beam type / strain gauge
shear beam load cell
0.3 - 2 tf | LC-5206 series

Rated load: 300 kg - 2,000 kg

Constant moment beam and shear beam construction Designed to resist overload damage Moisture protected Tension and compression loading

See the other products
A&D COMPANY, LIMITED
shear beam load cell / beam type / strain gauge
shear beam load cell
20 - 25 tf | LC-5207 series

Rated load: 25,000, 20,000 kg

Features Ring-shaped design resists side forces Compact design ideally suited for pitiless truck scales Moisture protected

See the other products
A&D COMPANY, LIMITED
shear beam load cell / beam type / stainless steel / strain gauge
shear beam load cell
LCM501, LCM511 series

Rated load: 50 kg - 10,000 kg

All Stainless Steel Construction 0.25% Interchangeable for Multiple Cell Applications 5-Point Calibration Certificate Included FM Approved Intrinsically Safe

shear beam load cell / dual-beam / with integrated amplifier / aluminum alloy
shear beam load cell
KT703

Rated force: 200, 500, 1 N

... the double bending beam. The mounting with two screws is simple and suitable for any flat, stable surface. The measuring principle of the Wheatstone strain gauge full bridge has proven itself over decades for this type ...

See the other products
MEGATRON Elektronik GmbH & Co. KG
shear beam load cell / dual-beam / with integrated amplifier / steel
shear beam load cell
KT803

Rated force: 2, 5 kN

... the double bending beam. The mounting with two screws is simple and suitable for any flat, stable surface. The measuring principle of the Wheatstone strain gauge full bridge has proven itself over decades for this type ...

See the other products
MEGATRON Elektronik GmbH & Co. KG
shear beam load cell / dual-beam / aluminum / compact
shear beam load cell
KM200

Rated force: 10 N

Series KM200 force sensors are double bending beam sensors and due to this shape less sensitive to excentric force application. This sensors are offered without built in amplifier, but ...

See the other products
MEGATRON Elektronik GmbH & Co. KG
shear beam load cell / beam type / for wire rope tension / strain gauge
shear beam load cell
10 - 100 kN | ZL-03 series

The ZL-03 Series, engineered by Magtrol, is a shear beam load cell intended for wire rope tension applications. It makes use of a strain gauge technology that was elaborated ...

shear beam load cell / beam type / OIML / stainless steel
shear beam load cell
MP 58, MP 58 T

Rated load: 91 kg - 2,268 kg

Cast stainless steel load cell for use in platform scales and for basic weighing of small to medium-sized containers. The load cell is available in threaded and T-end ...

shear beam load cell / beam type / strain gauge
shear beam load cell
F3272

Rated load: max 4536.0 kg

... typical load cell in shear beam design is constructed to have a high accuracy of 0,04% (optionally 0,02%) of the Full Scale. The Model F3272 series can be used to measure ...

shear beam load cell / beam type
shear beam load cell
F3301

In addition to our force transducer program with bonded foils, a new force transducer with a welded thin film sensor was developed. The usage of standardised sensors, ...

shear beam load cell / beam type / IP67 / strain gauge
shear beam load cell
Type 3410

Rated load: 200 kg - 2,000 kg

Ideal for multiple load cells, platforms and general purpose. 250 kg - 2000 kg ranges accuracy class up to C3 protection class IP67

See the other products
PENKO Engineering B.V.
shear beam load cell / beam type / IP66 / strain gauge
shear beam load cell
Type 350n

Rated load: 300 kg - 5,000 kg

Ideal for multiple load cells, platforms and general purpose applications. 300 - 5000 kg ranges accuracy class C3 protection class IP66

See the other products
PENKO Engineering B.V.
shear beam load cell / beam type / IP68 / strain gauge
shear beam load cell
Type SB2

Rated load: 20,400 kg - 45,400 kg

Ideal for multiple load cells, heavy duty and general purpose. hygienic 20400 45400 kg ranges accuracy class up to C3 protection class IP68

See the other products
PENKO Engineering B.V.
shear beam load cell / beam type / steel / with integrated signal processing
shear beam load cell
314 series

Rated force: 2, 5, 10, 20, 30 kN

The 314 by Test GmbH is a Steel shear beam load cell which is designed for force testings on spot welding machines. It is the equipment suitable for QA task which either ...

See the other products
TesT GmbH
shear beam load cell / beam type / aluminum / strain gauge
shear beam load cell
610 series

Rated load: 100 kg - 750 kg

Capacities: 100 kg - 200 kg - 250 kg - 350 kg - 500 kg - 750 kg Calibratable: Standard version (not calibratable) Subject to technical changes

See the other products
TesT GmbH
shear beam load cell / beam type / stainless steel / strain gauge
shear beam load cell
611 series

Rated load: 250 kg - 5,000 kg

Capacities: 250 kg - 500 kg - 1 t - 1,5 t - 2 t - 2,5 t - 5 t Calibratable: Standard version (not calibratable) Version C3 (3000d) according to OIML R 60 Subject to technical changes

See the other products
TesT GmbH
shear beam load cell / beam type / stainless steel / for hoppers
shear beam load cell

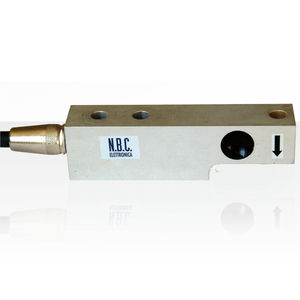

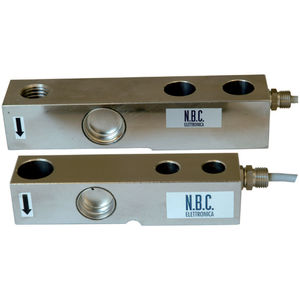

FB

Rated load: 250 kg - 5,000 kg

The FH by NBC Elettronica Group Srl is a Stainless steel shear beam load cell which is designed for constructing a weight system having a low capacity range. This equipment ...

See the other products
NBC Elettronica Group Srl
shear beam load cell / beam type / stainless steel / for hoppers
shear beam load cell
FH

Rated load: 500 kg - 15,000 kg

The FH, manufactured by N.B.C., is a shear beam load cell mod that has been designed to be used in the production for weighing systems with low-capacity range. This system ...

See the other products
NBC Elettronica Group Srl
shear beam load cell / beam type / aluminum / strain gauge
shear beam load cell
FT

Rated load: 100 kg - 500 kg

The FH, manufactured by N.B.C., is a shear beam load cell mod that is has been designed to be used in the production for weighing systems with low-capacity range. This ...

See the other products
NBC Elettronica Group Srl
shear beam load cell / beam type / high-precision / universal
shear beam load cell
3500

Rated load: 3 t

Universal load cells combining sturdy design, high accuracy and low cost. o Material: stainless steel o Protection class: IP67 o Sturdy design o Mounting kits available with following properties: ...

See the other products
SENSY S.A.
shear beam load cell / weighing
shear beam load cell
CSM 2.3

In general, a weighing systems manufacturer adapts the design of his equipment to commercially available load cells. However, SENSY can adapt the design of its standard transducers to fit a customer's ...

See the other products
SENSY S.A.
double-ended shear beam load cell / beam type / stainless steel / explosion-proof
double-ended shear beam load cell
2600

Rated load: 10 t - 75 t

The Sensys 2600 is a load cell that weighs silo. The cell has a robust design and can be installed easily. It is made of stainless steel materials with IP65 degree of protection. The ...

See the other products
SENSY S.A.
shear beam load cell / beam type / OIML / stainless steel
shear beam load cell
K40N

Rated load: 500 kg - 2,500 kg

The K40N Shear Beam Load Cells are one of the most widely used sensors in the field of weighing technology. The load cells are manufactured ...

See the other products
Bosche GmbH & Co. KG
double-ended shear beam load cell / beam type / weighing / IP65
double-ended shear beam load cell
D55S

Rated load: 50,000 kg - 200,000 kg

... profile double shear beam load cell D55S is ideally suited for applications in harsh industrial environments. The main sector the weighbeam is uses is the steel industry. Due ...

See the other products
Bosche GmbH & Co. KG
shear beam load cell / beam type / OIML / stainless steel
shear beam load cell
K20N

Rated load: 1,000 kg - 5,000 kg

The K20N shear beam load cells are among the most commonly used sensors in weighing technology. The load cells are made of high-alloy ...

See the other products
Bosche GmbH & Co. KG
shear beam load cell / block type / OIML / stainless steel
shear beam load cell
G5i

Rated load: 300 kg - 7,500 kg

FEATURES Shear beam load cells 3000 divisions OIML R60 class C Fully Stainless steel construction Hermetically sealed, Laser welding Measurement element from stainless ...

See the other products
GIROPES
shear beam load cell / canister / OIML / IP68
shear beam load cell
G1i

Rated load: 50 kg - 1,500 kg

FEATURES Shear beam load cell/shear beam 4000 divisions OIML R60 class C Fully construction stainless steel Hermetically sealed, Laser ...

See the other products
GIROPES
shear beam load cell / block type / OIML / stainless steel
shear beam load cell
G6M

Rated load: 2, 3, 5 kg

FEATURES Single load cell Shear beam load cell 3000 divisions OIML R60 class C Direct assembly at platform. High accuracy with off-center ...

See the other products
GIROPES
shear beam load cell / beam type / high-capacity / aluminum
shear beam load cell

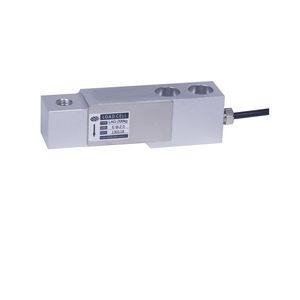

LAG-A

Rated load: 100 kg - 500 kg

... technology,single-ended shear beam load cells are made in low profile.Theses load cells are of good side load resistance ...

See the other products
Xiamen Loadcell Technology Co.,Ltd.
shear beam load cell / beam type / aluminum / anodized aluminum
shear beam load cell
LAG-D

Rated load: 800 kg

... technology,single-ended shear beam load cells are made in low profile.Theses load cells are of good side load resistance ...

See the other products
Xiamen Loadcell Technology Co.,Ltd.
shear beam load cell / beam type / aluminum / for hoppers
shear beam load cell
LAG-E

Rated load: 100 kg - 500 kg

... technology,single-ended shear beam load cells are made in low profile.Theses load cells are of good side load resistance ...

See the other products
Xiamen Loadcell Technology Co.,Ltd.
shear beam load cell / beam type / stainless steel / dynamic axe
shear beam load cell
6798(A), 6798(B)

Rated load: 0.5 t - 100 t

... makes the 6798 load pin capable of operating in harsh environments with its exceptional protection against the environment, to IP68. In comparison with the 5798 load pins, the 6798 series uses the ...

See the other products
BCM SENSOR TECHNOLOGIES bvba
shear beam load cell / beam type / for harsh environments / IP68
shear beam load cell
3417, 3497 series

Rated load: 0.5 t - 2 t

... 3497 series is a line of double-ended shear beam load cells that are made of double-ended shear-beam working principle. They are of ...

See the other products
BCM SENSOR TECHNOLOGIES bvba
shear beam load cell / beam type / for hoppers / for harsh environments
shear beam load cell
3418, 3498 series

Rated load: 0.5 t - 2 t

... single-ended shear beam load cell, manufactured by BCM Sensor Technologies. It is made from shear-beam working principle in low profile. ...

See the other products
BCM SENSOR TECHNOLOGIES bvba
shear beam load cell / beam type / stainless steel / economical
shear beam load cell
ESX series

Rated load: 3,000, 2,000, 5,000, 1,000, 500 kg

SHEAR BEAM LOAD CELLS MODEL ESX Low profile. Stainless steel AISI 630 (17-4-PH). Hermetically welded seal (IP67). Low profile. Correctly oriented they avoid the use ...

shear beam load cell / beam type / stainless steel / precision
shear beam load cell
OSX series

Rated load: 500 kg - 12,500 kg

SHEAR BEAM LOAD CELLS MODEL OSX Low profile. Stainless steel AISI 630 (17-4-PH). Hermetically welded seal (IP67). Low profile. Correctly oriented they avoid the use ...

shear beam load cell / beam type / IP66 / strain gauge
shear beam load cell
SFA2867

Rated load: 300 kg

shear beam load cell / beam type / OIML / steel construction
shear beam load cell
BS063

Rated load: 250 kg - 5,000 kg

Type BS063 is an alloy steel construction shear beam type loadcell. It is easy for installation, suitable for wide range of industrial applications such as electronic platform scales, ...

See the other products
BAYKON Industrial Weighing Systems
shear beam load cell / beam type / OIML / stainless steel
shear beam load cell
BS525S

Rated load: 5,000 kg

Type BS525S is an stainless steel construction shear beam type loadcell with complate hermatic sealing. It is suitable for use in industrial environments such as floor scales, vehicle test lines, hopper ...

See the other products
BAYKON Industrial Weighing Systems
double-ended shear beam load cell / beam type / stainless steel / steel construction
double-ended shear beam load cell
BD410/BD410S

Rated load: 10,250 lb - 35,000 lb

Type BD410 / BD410S is an alloy steel / stainless steel construction, double ended shear beam type loadcell designed for high capacity silo and tank weighing applications with hermetic sealing. Key ...

See the other products
BAYKON Industrial Weighing Systems
shear beam load cell / beam type / steel construction / waterproof
shear beam load cell
CZL801

Rated load: 500 kg - 20,000 kg

Details: Main features:Alloy steel & stainless structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; suitable for electronic platform scales, hopper scales, ...

See the other products
Guangdong South China Sea Electronic Measuring Tec
shear beam load cell / beam type / steel construction / for scales
shear beam load cell
CZL802

Rated load: 500, 1,000, 2,000, 2,500, 5,000 kg

Details: Features: Sensor elastomer made of alloy steel; can provide welding seal; High-precision, high reliability. Applications: Widely used in electronic scales, truck scales, to scales and other weighing force measuring equipment.

See the other products
Guangdong South China Sea Electronic Measuring Tec
shear beam load cell / beam type / steel construction / for scales
shear beam load cell
CZL803

Rated load: 500 kg - 10,000 kg

Details: Features: Sensor elastomer made of alloy steel; can provide welding seal; High-precision, high reliability. Applications: Widely used in electronic scales, truck scales, to scales and other weighing force measuring equipment.

See the other products
Guangdong South China Sea Electronic Measuring Tec
shear beam load cell / beam type / cost-effective / steel
shear beam load cell
LCSB series

Rated load: 500 kg - 10,000 kg

... functionality. It is a tool shear beam which is in compliant with IP 67 protection to ensure a secure device to be used. It is built with an electroless nickel plated feature ideal for several weighing ...

See the other products
PT Limited
shear beam load cell / beam type / precision / stainless steel
shear beam load cell
PT5100 series

Rated load: 500, 1,000, 5,000, 2,000, 3,000 kg

... PT5100 shear beam is constructed of high quality stainless steel load cell that is welded and sealed to IP68 for application in emanding environmental conditions or for ...

See the other products
PT Limited
double-ended shear beam load cell / beam type / steel / nickel-plated
double-ended shear beam load cell
PT9000 series

Rated load: 20,000 lb - 150,000 lb

The PT9000 series is a high capacity double-ended shear beam load cell developed by PT. It is engineered with nickel material. The unit is mainly used for industrial ...

See the other products
PT Limited
shear beam load cell / beam type / strain gauge
shear beam load cell
NTI

The NTI is a load cell that is developed by Cachapuz Bilancai Group. The load cell has operation terminals which is capable of bending and extending in many ways. The ...

shear beam load cell / beam type / for scales
shear beam load cell
TI

Multiextension and bending operation terminals, weighing system up to 4000 divisions.

shear beam load cell / beam type / OIML / weighing
shear beam load cell
SB01

Rated load: 1,000 lb - 55,000 lb

The SB01 shear beam load cell is typically used for platform weighing, vessel and tank weighing applications. Capacities range from 1klb to 55klb with industry standard ...

shear beam load cell / beam type / stainless steel / precision
shear beam load cell
SS6000

Rated load: 5,000, 2,000, 7,500, 3,000 kg

SS6000 Series Bearing Force Load Cells are machined from stainless steel having cylindrical ends to help mount bearings directly to the load cells. These strain gauge ...

shear beam load cell / beam type / high-precision / steel
shear beam load cell
OSBH

Rated load: 200 kg - 10,000 kg

Shear Beam Load Cell (200kg ~ 10t) Nickel Plated Alloy Steel, 3mV/V, IP67 The OSBH sériés single ended shear beam load ...

See the other products
Bongshin Loadcell Co.,Ltd
shear beam load cell / beam type / high-precision / steel
shear beam load cell
OSBK

Rated load: 100 kg - 10,000 kg

Shear Beam Load Cell (100kg ~ 10t) Nickel Plated Alloy Steel, 3mV/V, IP67 The OSBK series single ended shear beam load ...

See the other products
Bongshin Loadcell Co.,Ltd
shear beam load cell / beam type / high-precision / stainless steel
shear beam load cell
OSW

Rated load: 500 kg - 5,000 kg

Shear Beam Load Cell (500kg ~ 5t) Stainless Steel & Welded cover, 2mV/V, IP68 The OSW sériés single ended shear beam load ...

See the other products
Bongshin Loadcell Co.,Ltd
shear beam load cell / beam type / OIML / stainless steel
shear beam load cell
350i

Rated load: 300 kg - 5,000 kg

The 350i stainless steel shear beam is a high accuracy load cell that is widely used in industrial weighing applications worldwide. It has OIML approval (which is ideal ...

See the other products
Thames Side Sensors
shear beam load cell / beam type / OIML / steel construction
shear beam load cell
350n

Rated load: 300 kg - 2,000 kg

The 350n low cost nickel plated steel shear beam is a high accuracy load cell that is widely used in industrial weighing applications where a fully welded and hermetically ...

See the other products
Thames Side Sensors
shear beam load cell / beam type / OIML / stainless steel
shear beam load cell
350Ti

Rated load: 300 kg - 2,000 kg

The 350Ti stainless steel shear beam is a high accuracy load cell for industrial weighing applications, but primarily for platform scales due to its low height and blind ...

See the other products
Thames Side Sensors
shear beam load cell / beam type / stainless steel / hermetic
shear beam load cell
0745A series

Rated load: 110 kg - 4,400 kg

0745A is a hermetically sealed stainless-steel load cell. Typically, it is used in tank weighing and with floor scales in industrial environments. The available capacities are 110, 220, 550 kilograms ...

See the other products
Mettler Toledo

How to choose this product

shear-beam-load-cell

Shear beam load cells are specially designed for weighing applications.

Applications

Shear beam load cells are used in all types of medium- to high-capacity weighing applications. They are particularly suitable for containers, silos, overhead rail conveyors and platform scales. They are known to provide reliable weight measurement for applications subject to side loads and with varying load positions.

Technologies

Shear beam load cells measure shear forces through specially placed strain gauges. The strain gauges are arranged at 45° to the longitudinal axis along the side of the load cell's body and are therefore subject to shear forces.
Shear beam load cells are available in aluminum or stainless steel.

How to choose

When selecting a shear beam load cell be sure to determine the approximate weight requirements of your application. Manufacturers will specify protection ratings for wash-down, hazardous environments, et al.

Advantages

- Resistance to side forces
