Shear beam load cell KT703

beam typestrain gaugeanalog

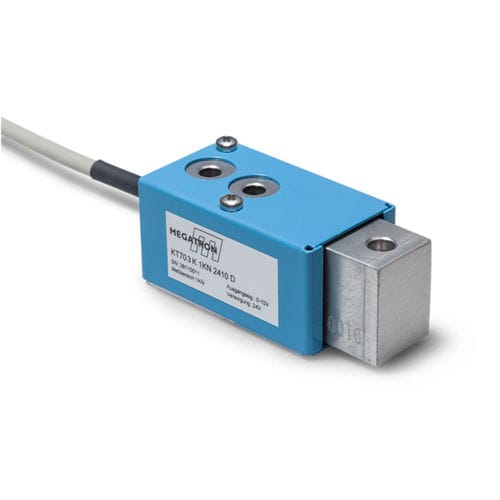

Compact bending beam load cell with integrated digital amplifier and aluminium measuring body for 200 N, 500 N and 1 kN Strain gauge principle Output signals 0–10 V or 4–20 mA Theoretical resolution 14 bit Force introduction via M5 thread Aluminium measuring body, painted steel housing Protection class IP40 Precise signals through digital signal conditioning The KT703 series combines an aluminium measuring body in bending beam design with an integrated digital amplifier. This provides directly usable output signals of 0–10 V or 4–20 mA, allowing users to connect the sensor directly to control systems without an additional amplifier. Thanks to digital signal conditioning, the sensor achieves a theoretical resolution of 14 bit and offers particularly high signal quality. While the sensor is mounted to a rigid structure using two screws, the force is applied via an M5 threaded hole. This decouples mounting forces from the measurement and enables precise force introduction. The KT703 is designed for measuring tensile and compressive forces up to 1 kN. Due to its robust design and precise full-bridge strain gauge circuit, it is suitable for accurate force measurements in joining and assembly processes, as well as for monitoring motion sequences in machines and systems. Options Rated force: 200 N, 500 N or 1 kN Output signals: 0–10 V or 4–20 mA Force direction: tension or compression For series production, additional customer-specific adaptations are possible, such as modified hole diameters for mounting and force introduction, pre-assembled cables and connectors, or adjusted measuring ranges.
