Shear beam load cell KM801

dual-beamstrain gaugeweighing

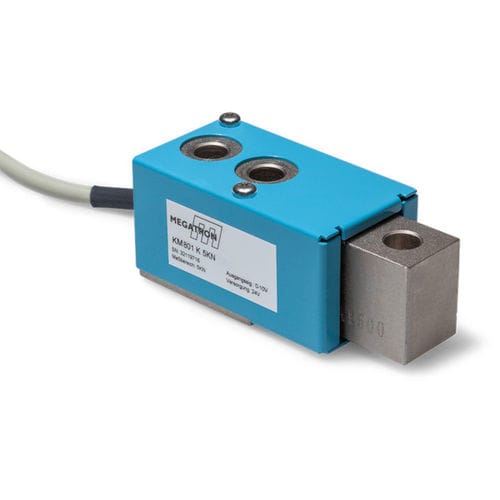

Robust bending beam load cell with steel measuring body for 2 kN and 5 kN Strain gauge technology with full Wheatstone bridge Force introduction via M8 thread Nickel-plated steel measuring body Very compact design with easy installation Protection class IP40 Precise measurement of higher tensile and compressive forces The KM801 series is a bending beam load cell for measuring forces of 2 kN and 5 kN. The nickel-plated steel measuring body operates according to the double bending beam principle and is equipped with a full-bridge Wheatstone strain gauge circuit. This proven technology ensures precise and repeatable results. A particular feature of this design is the separation of mounting and force introduction. While the sensor is mounted to a rigid structure using two screws, the force is applied via an M8 threaded hole. This decouples mounting forces from the actual measurement, increasing precision. At the same time, the compact design allows easy integration into various applications. The robust steel measuring body makes the KM801 especially suitable for industrial applications in which high forces must be measured reliably. Typical applications include joining and assembly processes, test benches, and monitoring of mechanical movements in machines and equipment. Options Rated force: 2 kN or 5 kN Accessories: IMA2 DMS force measuring amplifier for analogue output signals (e.g. 0–10 V, 4–20 mA) For series production, additional customer-specific adaptations are possible, such as pre-assembled cables and connectors, modified hole diameters for mounting or force introduction, and a 6-wire version.
