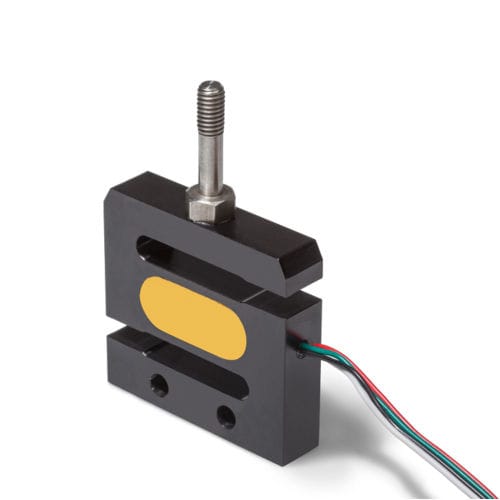

Tension/compression load cell KM500

S-beamfor calibrationcompact

Compact force sensor made of aluminium for 500 N Force transmission via M6 male thread Aluminium body, weighing only 70 g Protection class IP54 With test report Suitable for tensile and compressive forces Strain gauge principle with full bridge Compact design with a lightweight aluminium body The KM500 series is a load cell for medium-range applications up to 500 N, based on an aluminium measuring body with strain gauges in a full Wheatstone bridge configuration. It delivers precise and reproducible measurement results. Thanks to its compact and lightweight design, it can also be used in confined spaces. Force is applied via an M6 external thread and the sensor is mounted on a stable surface via two through holes on the opposite side. The sensor is suitable for measuring tensile and compressive forces. Typical areas of application include test benches, assembly and joining processes, and other applications requiring a compact sensor with a medium nominal force. Additional customer-specific adaptations are possible for series production, such as cable lengths that deviate from the standard, cables with pre-assembled connectors, or modified mechanical mounting options.
