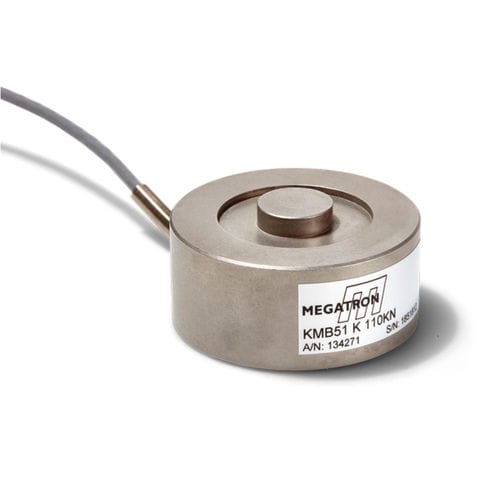

Compression load cell KMB51

button typestrain gaugefor calibration

Strain gauge technology with full Wheatstone bridge Stainless steel measuring body, corrosion-resistant Form factor Ø50 mm Protection class IP64 The KMB51 series is a compact compression load cell for compression forces of 110 kN. The stainless steel measuring body with a full-bridge Wheatstone strain gauge circuit ensures precise and repeatable results over the entire measuring range. The robust stainless steel design with a diameter of 50 mm and a height of 25 mm provides a long service life, while protection class IP64 allows use in industrial environments. Each KMB51 is supplied with a test report as standard, confirming the accuracy of the measurement results. Typical applications include test benches, presses, assembly systems and general industrial applications with high compression forces. Compared to standard load cells on the market, the KMB51 offers an exceptional combination of compact design and very high rated force of 110 kN. For series production, customer-specific adaptations are also possible, such as modified mounting dimensions, pre-assembled cables or connector versions.
