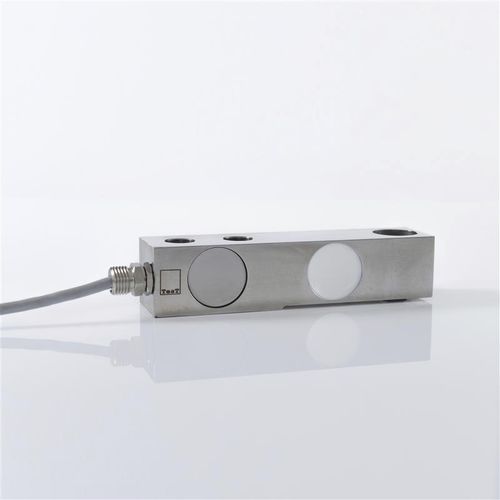

Shear beam load cell 611 beam typestrain gauge2 mV/V
Add to favorites
Compare this product
Characteristics
- Type
- shear beam
- Form
- beam type
- Technology
- strain gauge
- Output signal
- 2 mV/V
- Applications
- weighing
- Other characteristics
- OIML, stainless steel, high-precision
- Rated load
Max.: 5,000 kg
(11,023.11 lb)Min.: 250 kg
(551.16 lb)- Length
130.2 mm, 171.5 mm
(5.126 in, 6.752 in)- Height
30.15 mm, 36.5 mm, 42.9 mm
(1.19 in, 1.44 in, 1.69 in)
Description
The shear beam load cells of the model series 611 are typically used for the construction of industrial weighing or batching systems, e.g. for container or tanks. The load cells that are made of stainless steel are excellently suitable for applications under rough, industrial
conditions. A TEDS module inside the plug can be provided on demand. The model 611 is available in the standard version and in the calibratable version according to OIML R 60, class C3
• Shear beam load cell
• Calibratable acc. to OIML R 60
• Standard or class C3
• Resistant to lateral forces
• Stainless steel
• Highest accuracy
• Sensitivity: 2mV/V
• Optional: TEDS module
