Shear beam load cell 612
beam typestrain gaugeweighing

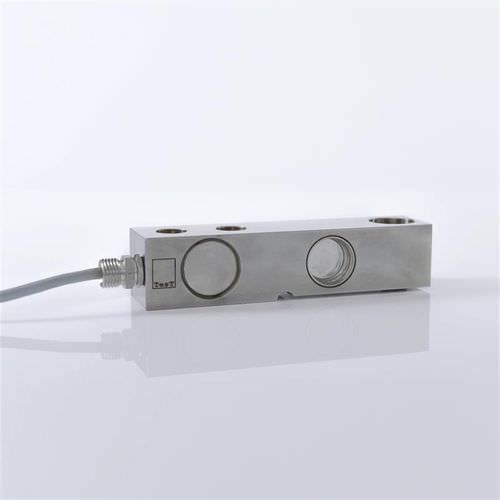

shear beam load cell
shear beam load cell
Add to favorites
Compare this product


Characteristics

Type
shear beam
Form
beam type
Technology
strain gauge
Applications
weighing
Other characteristics
OIML, high-precision, stainless steel, IP68
Rated load

Min.: 500 kg
(1,102.31 lb)

Max.: 15,000 kg
(33,069.34 lb)

Length

130.2 mm, 171.5 mm, 279.4 mm, 317.5 mm
(5.126 in, 6.752 in, 11 in, 12.5 in)

Height

31 mm, 37 mm, 43 mm, 58 mm, 69 mm
(1.22 in, 1.46 in, 1.69 in, 2.28 in, 2.72 in)

Description

The shear beam load cells of the model series 612 are typically used for the construction of industrial weighing or batching systems, e.g. for container or tanks. The load cells that are made of stainless steel are excellently suitable for applications under rough, industrial conditions. A TEDS module inside the plug is also possible on demand. The model 612 is available in the standard version and in the calibratable versions according to OIML R 60, accuracy classes C3 and C4. • Shear beam load cell • Calibratable acc. to OIML R60 • Standard, class C3 or C4 • Resistant to lateral forces • Stainless steel • Highest accuracy • Sensitivity: 2mV/V • TEDS module on demand 1)
