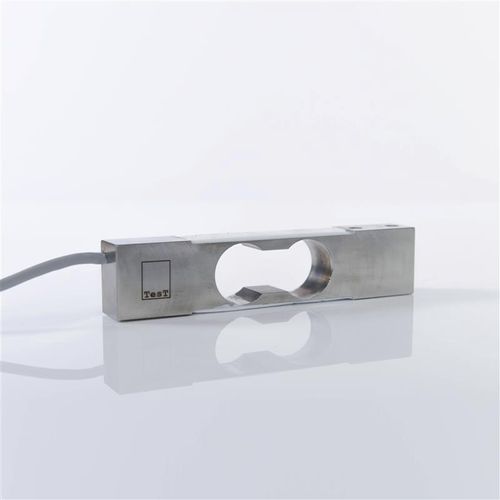

Torsion load cell 601
off-centerstrain gauge2 mV/V

Torsion load cell - 601 - TesT GmbH - off-center / strain gauge / 2 mV/V
Torsion load cell - 601 - TesT GmbH - off-center / strain gauge / 2 mV/V
Add to favorites
Compare this product
Go to the TesT GmbH website for more information

Characteristics

Type
torsion
Form
off-center
Technology
strain gauge
Output signal
2 mV/V
Applications
weighing
Other characteristics
OIML, stainless steel, high-precision, compact, small, IP67
Rated load

Max.: 75 kg
(165.35 lb)

Min.: 7.5 kg
(16.53 lb)

Length

139.7 mm
(5.5 in)

Description

Are you searching for a single point load cell that is suitable for the construction of small weighing platforms and provide highest accuracies? For that we recommend our model series 601, calibratable according to OMIL, made from stainless steel and thus well prepared for applications under rough, industrial conditions. These single point load cells are suitable for platforms of 400 x 400 mm maximum size and available as ex-proof versions on request. • Static • OIML R60 C4 • OIML R60 C3 • Electric Calibratable •Class C3 according to OIML R 60 •Class C4 according to OIML R 60
