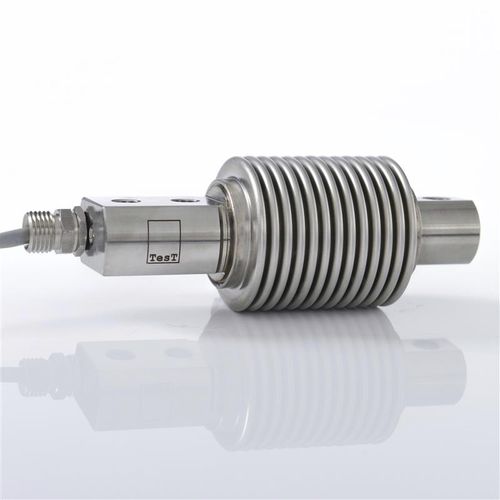

Bending beam load cell 640
beam typestrain gauge2 mV/V

Bending beam load cell - 640 - TesT GmbH - beam type / strain gauge / 2 mV/V
Bending beam load cell - 640 - TesT GmbH - beam type / strain gauge / 2 mV/V
Bending beam load cell - 640 - TesT GmbH - beam type / strain gauge / 2 mV/V - image - 2
Bending beam load cell - 640 - TesT GmbH - beam type / strain gauge / 2 mV/V - image - 3
Bending beam load cell - 640 - TesT GmbH - beam type / strain gauge / 2 mV/V - image - 4
Bending beam load cell - 640 - TesT GmbH - beam type / strain gauge / 2 mV/V - image - 5
Bending beam load cell - 640 - TesT GmbH - beam type / strain gauge / 2 mV/V - image - 6
Add to favorites
Compare this product
Go to the TesT GmbH website for more information

Characteristics

Type
bending beam
Form
beam type
Technology
strain gauge
Output signal
2 mV/V
Applications
weighing
Other characteristics
OIML, high-precision, stainless steel, IP67, explosion-proof
Rated load

Max.: 200 kg
(440.92 lb)

Min.: 5 kg
(11.02 lb)

Description

The bending beam load cells of the model series 640 that are made of stainless steel are for example used for the construction of belt weighers, batching and weighing systems for industrial products and platform scale, as well as for hybrid scales and testing faclities in laboratories. A TEDS module inside the plug is provided on demand. The model 640 is available in the standard version and in the calibratable versions according to OIML R 60, classes C3 and C4. •Bending beam load cell •Calibratable acc. to OIML R 60 •Standard, class C3 and C4 •Highest accuracy •Sensitivity: 2mV/V •Optional: TEDS module 1
