Tension/compression force transducer 307 series
S-beamcalibrationstainless steel

tension/compression force transducer
tension/compression force transducer
tension/compression force transducer
Add to favorites
Compare this product


Characteristics

Type
tension/compression
Form
S-beam
Applications
calibration
Other characteristics
aluminum construction, stainless steel, IP65
Rated force

Max.: 25,000 N

Min.: 20 N

Description

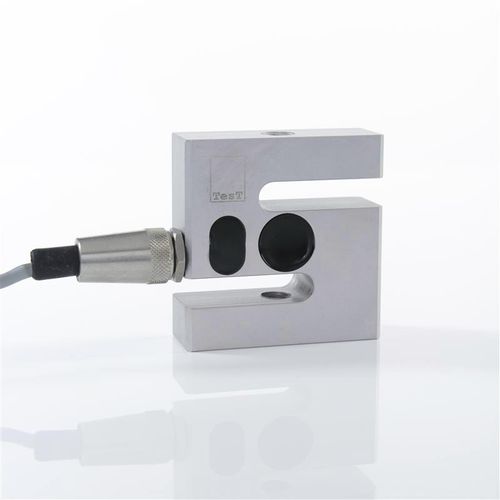

The electrical force transducers of the model series TesT 307 with classic S-type shaping are often used when cramped spaces and high standards occur at the same time. These sensors which are made of high-quality aluminium are lightweight and well suitable for tensile and compressive measurements that pass through the zero-point. Special versions are available on request, which achieve class 0,5 according to ISO 376 and can be employed for calibration purposes in QA systems. The sensors 307 are available in two different design sizes. Measuring uncertainty - ≤ ± 0.05% of nominal value On request - Version Class 0,5 according to ISO 376 •TEDS •ISO 376-05 •Electric •Calibration •Force
