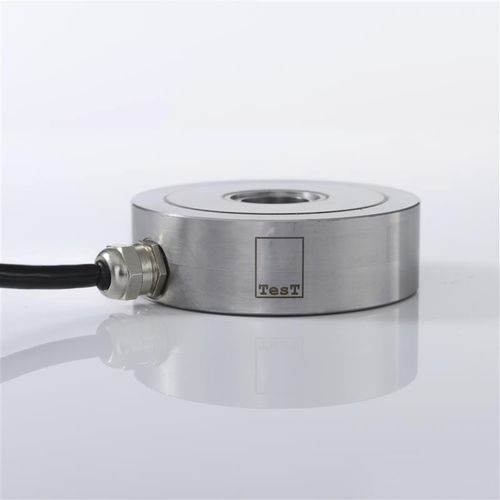

Tension/compression force transducer 311 doughnut-shapedstrain gaugefor calibration
Add to favorites
Compare this product
Characteristics
- Type
- tension/compression
- Form
- doughnut-shaped
- Technology
- strain gauge
- Applications
- for calibration, for testing machine
- Other characteristics
- stainless steel, IP66
- Rated force
Min.: 2.5 kN
Max.: 600 kN
- Length
97.5 mm, 112.5 mm
(3.839 in, 4.429 in)
Description
The electrical force transducers of the model series TesT 311 are primarily used for calibrations of force sensors and materials testing machines. This model has even proved for measurements that require very precise results. The sensors that are made of stainless steel are hermetically sealed and thus are inured to environmental influences. Load transmission parts according to ISO 376 are available for calibration applications.
Up to 50kN the model 311 is used for compressive and tensile forces, from 100kN on it is used as compression force transducer only.
Accuracy - Class 00 according to ISO 376
•ISO 376-00
•Compression
•Electric
•Calibration
•Force
