Shear beam load cell K30S series
beam typestrain gaugeweighing

shear beam load cell
shear beam load cell
shear beam load cell
shear beam load cell
Add to favorites
Compare this product


Characteristics

Type
shear beam
Form
beam type
Technology
strain gauge
Applications
weighing
Other characteristics
OIML, IP68
Rated load

Max.: 10,000 kg
(22,046.23 lb)

Min.: 500 kg
(1,102.31 lb)

Description

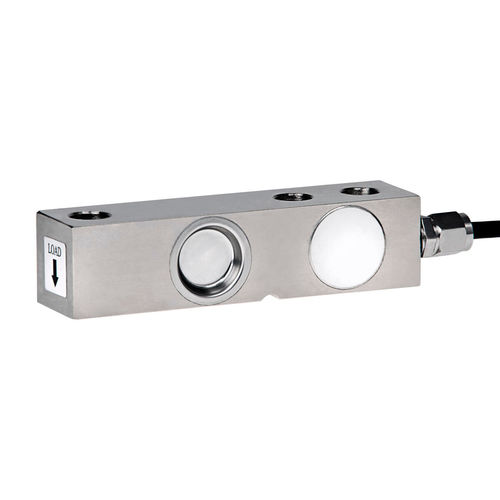

The K30S single ended shear beam type load cells are one of the widely used sensors in the field of weighing technology. The load cells are manufactured from alloy steel nickel plated and characterized with high accuracy and linearity. These load cells are approved to OIML R60 for 3000 d and guarantee accurate and reproducible results over a long term in harsh industrial environments. The current calibration output ensures easy and accurate parallel connection of multiple load cells, which removes the need for corner load adjustment. The K30S load cells are laser-welded and meets the requirements of protection class IP68. The hermetically sealed enclosure allows operation even under harsh operating conditions. Plattform scales, Floor scales, Overhead track scales, Silo, Hopper and Tank Scales and weighing systems, Pallet truck weighing, Big-Bag Scales, Filling and Bagging Machines, Force and Torque Measurements in the test machines and Industrial Automation.
