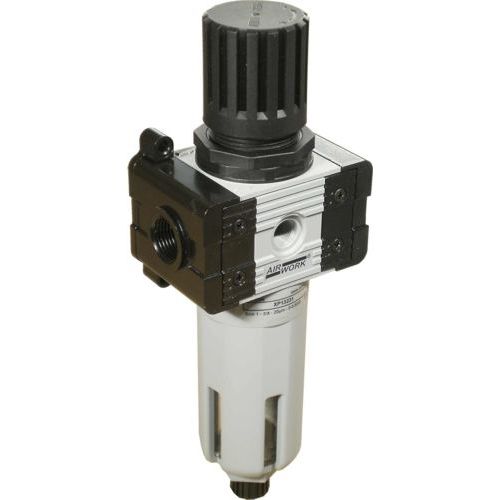

Filter regulator for compressed air
max. 4500 Nl/min, max. 15 bar | XP1 series
Airwork pneumatic equipment
Technical information
Fluid: Air
Maximum pressure: 15 bar
Temperature: -10 / +50° C
Filtration grade: 5 - 20 - 50µm
6bar flow rate with ∆p 1bar: 1=1650 Nl/min, 2=300Nl/min, 3=4500Nl/min
Bowl capacity: 1=22cm3, 2=46cm3, 3=89,5cm3
Regulation range: 0-2bar, 0-4bar, 0-8bar standard, 0-12bar
Wall clamping screws: 1=M4X14, 2=M5X18, 3=M6X20
