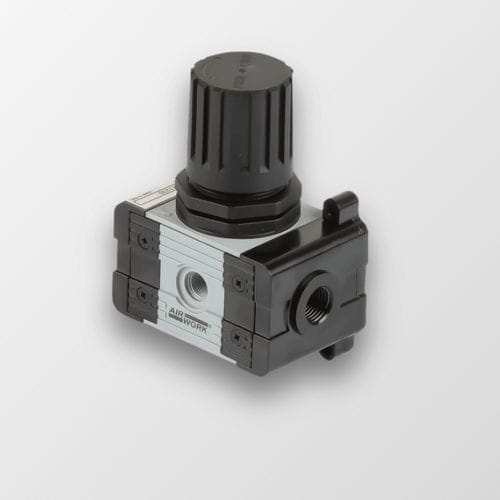

Compressed air pressure regulator XR seriesmembranesingle-stagemedium
Add to favorites
Compare this product
Characteristics
- Product
- for compressed air
- Technology
- membrane
- Number of stages
- single-stage
- Material
- medium
- Applications
- industrial
- Pressure
Max.: 15 bar
(217.56 psi)Min.: 0 bar
(0 psi)- Flow
Max.: 6,200 l/min
(1,637.87 us gal/min)Min.: 2,050 l/min
(541.55 us gal/min)- Orifice diameter
Max.: 3 mm
(0.118 in)Min.: 1 mm
(0.039 in)- Temperature
Max.: 50 °C
(122 °F)Min.: -10 °C
(14 °F)
Description
This device uses the medium of air and operates at a maximum pressure of 15 bar. It has a temperature range of -10 to +50° C and regulation range of 0-2bar, 0-4bar, 0-8bar standard and 0-12bar. It has a 6bar flow rate with ∆p 1bar so that 1=1650 Nl/min, 2=300 Nl/min and 3=4500 Nl/min. The manometer fastening is 1/8.
