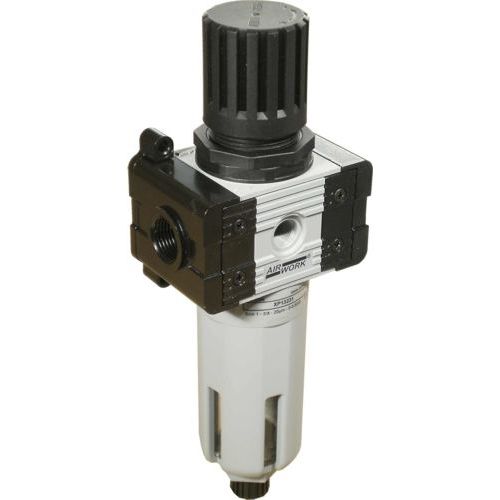

Air filter-regulator XP seriescompressed airwith cartridgeindustrial
Add to favorites
Compare this product
Characteristics
- Designed for
- air, compressed air
- Filtration element
- with cartridge
- Applications
- industrial
- Other characteristics
- modular
- Operating pressure
Max.: 15 bar
(217.557 psi)Min.: 0 bar
(0 psi)- Filtration size
Max.: 50 µm
Min.: 5 µm
- Flow
Max.: 4,500 l/min
(1,188.774 us gal/min)Min.: 1,650 l/min
(435.884 us gal/min)
Description
This device uses the medium of air and operates at a maximum pressure of 15 bar with a temperature range of -10 to +50° C. It has a filtration grade of 5-20-50 µm. It has a 6 bar flow rate with ∆p 1 bar so that 1=1650 Nl/min, 2=300 Nl/min and 3=4500 Nl/min. Bowl capacity runs from 22 to 89 cm3. The regulation range is from 0-2 bar up to 0-12 bar, with wall clamping screws of different sizes.
Catalogs
No catalogs are available for this product.
See all of A&T Fluid solutions‘s catalogsOther A&T Fluid solutions products
