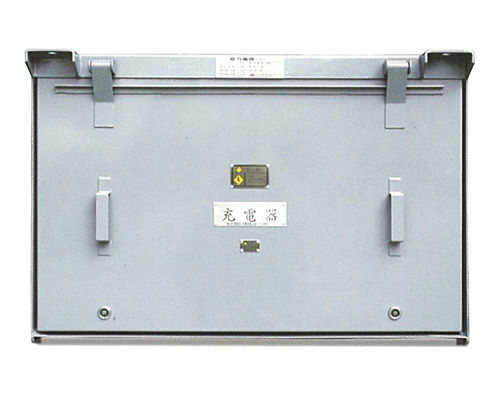

Wall-mount battery charger
multi-chemistryfor railway applicationsadjustable

wall-mount battery charger
wall-mount battery charger
wall-mount battery charger
Add to favorites
Compare this product


Characteristics

Configuration
wall-mount
Battery type
multi-chemistry
Applications
for railway applications
Other characteristics
adjustable, thyristor rectifier
Voltage

Max.: 118 V

Min.: 29.6 V

Description

Features - Thyristor control with full bridge rectifier. - Rated voltage and current limit at output side. - Built in the features of low ripple, low noise, alarm indications, - comprehensive protection. - Stable control circuit to provide a stable DC output power. - Using nontoxic - electric cable for wiring. Specification - AC input - Voltage:3Φ440V±10% - Frequency:50 or 60Hz±5% - Power factor:0.8(at full load) - Output capacity:15kW(at 110V) 12kW(at 29V) - Output voltage Float voltage:112.5V(adjustable) 29.6V(adjustable) - Equalize voltage:118V(adjustable) 31V(adjustable) - Voltage regulation:Ÿ ±5%(at rating load) - Efficiency:>80%(at rated load) - Current limit:adjustable from 50% to 130% - Ripple:<5%RMS(at full load)
