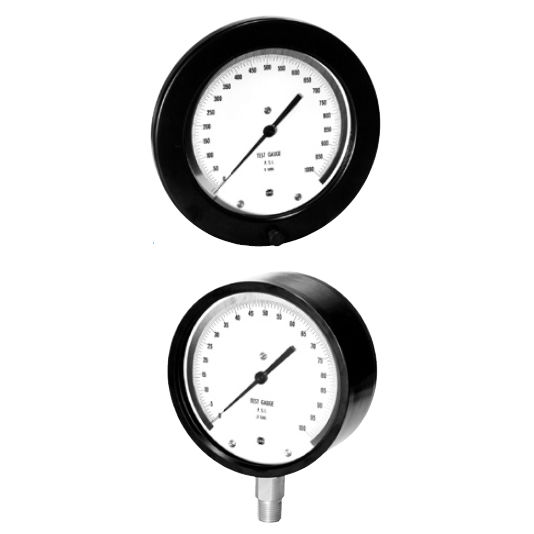

Bourdon tube test pressure gauge
max. 5 000 psi | 1403, 1404 series
AMETEK U.S. GAUGE
High Accuracy Test Gauges in various sizes combined with a solid front safety feature, provide operators with the best value on the market. Our test gauges are available in 6", 4.5", and 3"case sizes for laboratory, instrument bench, test panel, or field use.
SOLFRUNT® 4-1/2” Models 1403/1404 Gauges
DESCRIPTION
Series 1400 4-1/2” SOLFRUNT test gauges are designed to combine laboratory test gauge accuracy with carrying case or rolling test stand portability, and frequently are permanently installed on instrument shop test benches or test panels. These gauges feature a solid front case, which provides a partition between the pressure measuring element and the window with a pressure relieving back. Accurate gauge reading is accomplished by sighting the knife edge of the indicating pointer with the paralleling pressure graduation, while simultaneously eliminating the pointer’s image on the mirrored dial edge. An adjustable pointer provides front zero adjustment. Other calibration adjustments can be made from the back without removal from the case. Metric ranges are available upon request.
