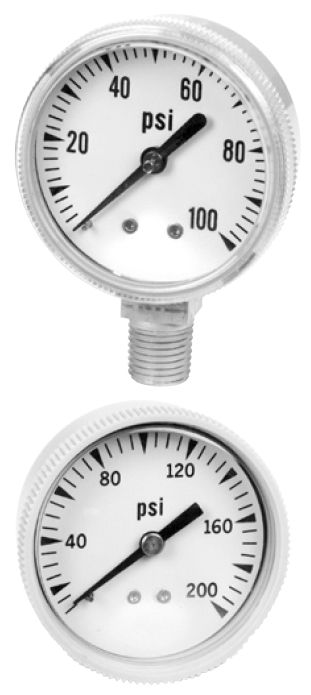

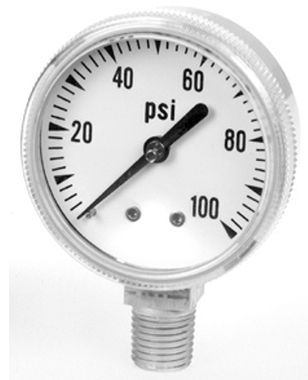

Chemical-resistant Bourdon tube pressure gauge
15 - 300 psi | P590 AMETEK U.S. GAUGE

The ABS case gauges are weather and rust resistant. The ABS case and polycarbonate
window are resistant to most chemicals, allowing continuous
exposure to many chemical, petrochemical, and industrial plant
atmospheres. However, these gauges are suitable only for use on process
media which are noncorrosive to brass, phosphor bronze, orberyllium copper.
SPECIFICATIONS:
* SIZES :1-1/2", 2"
*CASE: Gray, ABS
*WINDOW :Polycarbonate
*POINTER: Aluminum, black finish
*DIAL :Aluminum, white background with black markings
* MOVEMENT:Brass
* BOURDON TUBE :Beryllium copper 15 psi, phosphor bronze above 15 psi, soft soldered
* CONNECTION: 1-1/2” or 2” 1/8-27 NPT, or 2” 1/4-18 NPT, brass
*RANGES:1-1/2" P-590K with 1/8-27 NPT, LM or CBM–15 through 160 psi 2" P-590K with 1/4-18 NPT, LM or CBM–30 through 300 psi
* ACCURACY: ±3-2-3% of span (Grade B)
