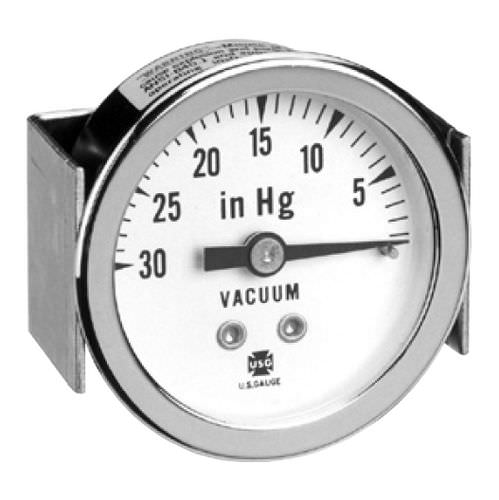

Dial pressure gauge 562 absolutethreadedpanel-mount
Add to favorites
Compare this product
Characteristics
- Display
- dial
- Pressure type
- absolute
- Mounting
- threaded, panel-mount
- Material
- brass, aluminum
- Technology
- Bourdon tube
- Protection level
- corrosion-resistant
- Applications
- process, for vacuum, medical
- Other characteristics
- OEM, miniature
- Pressure
Min.: 0 psi
Max.: 2,000 psi
- Precision
2 %, 3 %
- Dial diameter
1.5 in
Description
The Model 562 Miniature panel mount pressure gauge is specially designed to conserve space on any type of equipment where space is limited. The 1½” gauge has mounting studs coming out of the back of the case, and a U-Clamp to secure the gauge in the panel. The front ring is chrome plated with a scratch resistant polycarbonate window.
Model 562 pressure gauges comes standard in 11 different vacuum pressure to gauge pressure ranges, up to 2000 psi. It has a 1/8” NPT brass connection, and meets ASME B40.100 Grade B accuracy (±3-2-3%). They are available off the shelf or customized for OEM applications.
