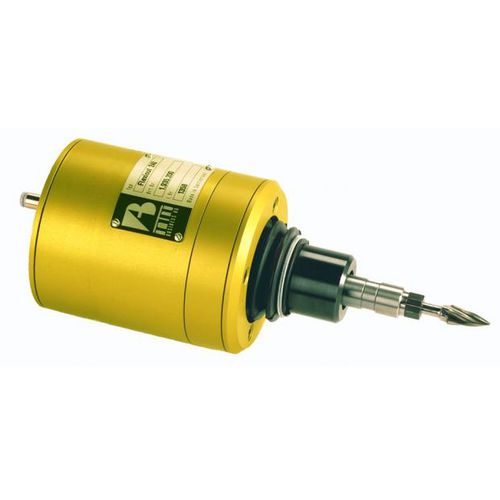

Milling spindle Flexicut 250deburringfor robotsair-driven
Add to favorites
Compare this product
Characteristics
- Function
- milling, deburring
- Other characteristics
- for robots, air-driven
- Rotational speed
35,000 rpm
(219,911.49 rad.min-1)- Diameter
Max.: 6 mm
(0.2 in)Min.: 0 mm
(0 in)
Description
The milling tool FLEXICUT 250 can be used for the economical deburring of small and complex parts of metallic as well as nonmetallic material. The spindle is freely compliable in all directions. The pressure against the part edge can be set from the robot program.
Article-No.
1100.200
Power
240 W (0.32 hp)
Idling speed
35'000 rpm
Compliance radial in all directions
± 4.2° / ± 8 mm (at collet)
Compliance torque
1.04 Nm (0.77 ft lbs) at 6 bar (87 psi)
Compliance force
8 N (1.8 lbs) at 6 bar (87 psi) (at collet)
Feed forward rate
5 - 250 mm/sec.
Air consumption
7.5 l/s (15.9 cfm)
Collet
Ø 6 mm
Weight
2.6 kg (5.7 lb)
VIDEO
Catalogs
Flexicut 250
2 Pages
